ABB 1SBN081411R1000 – BER 16V Connection Set
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.045 kg |
| UPC / EAN | 3471522364722 |
Shipping & availability
When can 1SBN081411R1000 be shipped?
1SBN081411R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN081411R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN081411R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN081411R1000, subject to availability and destination.

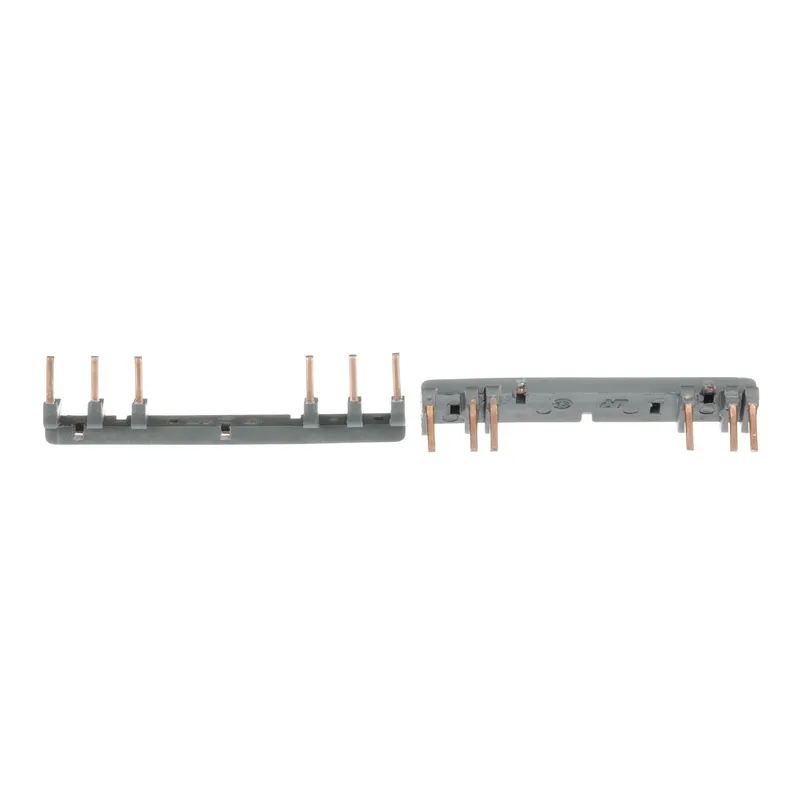

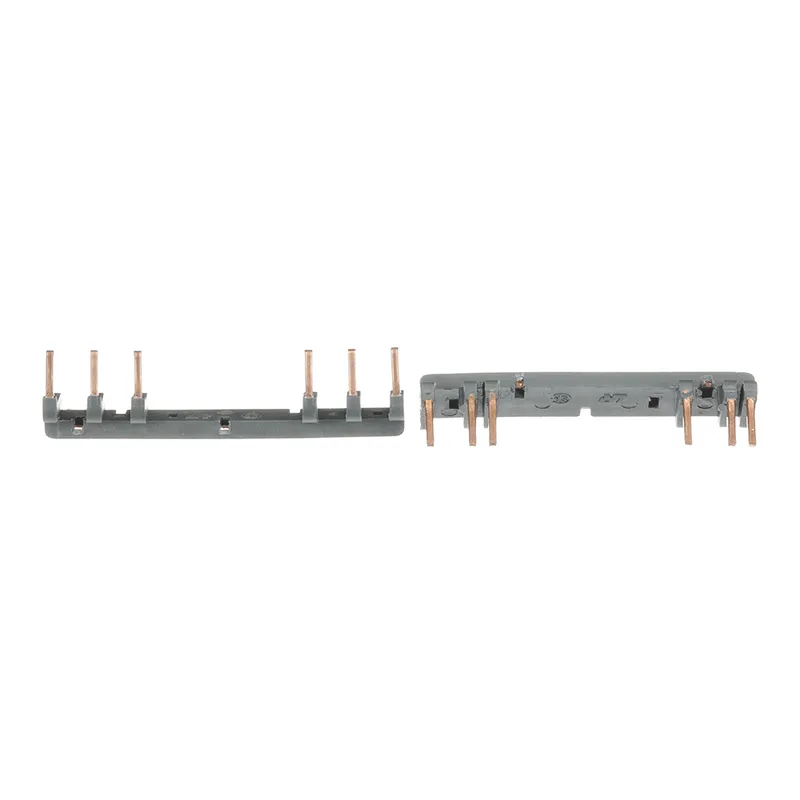

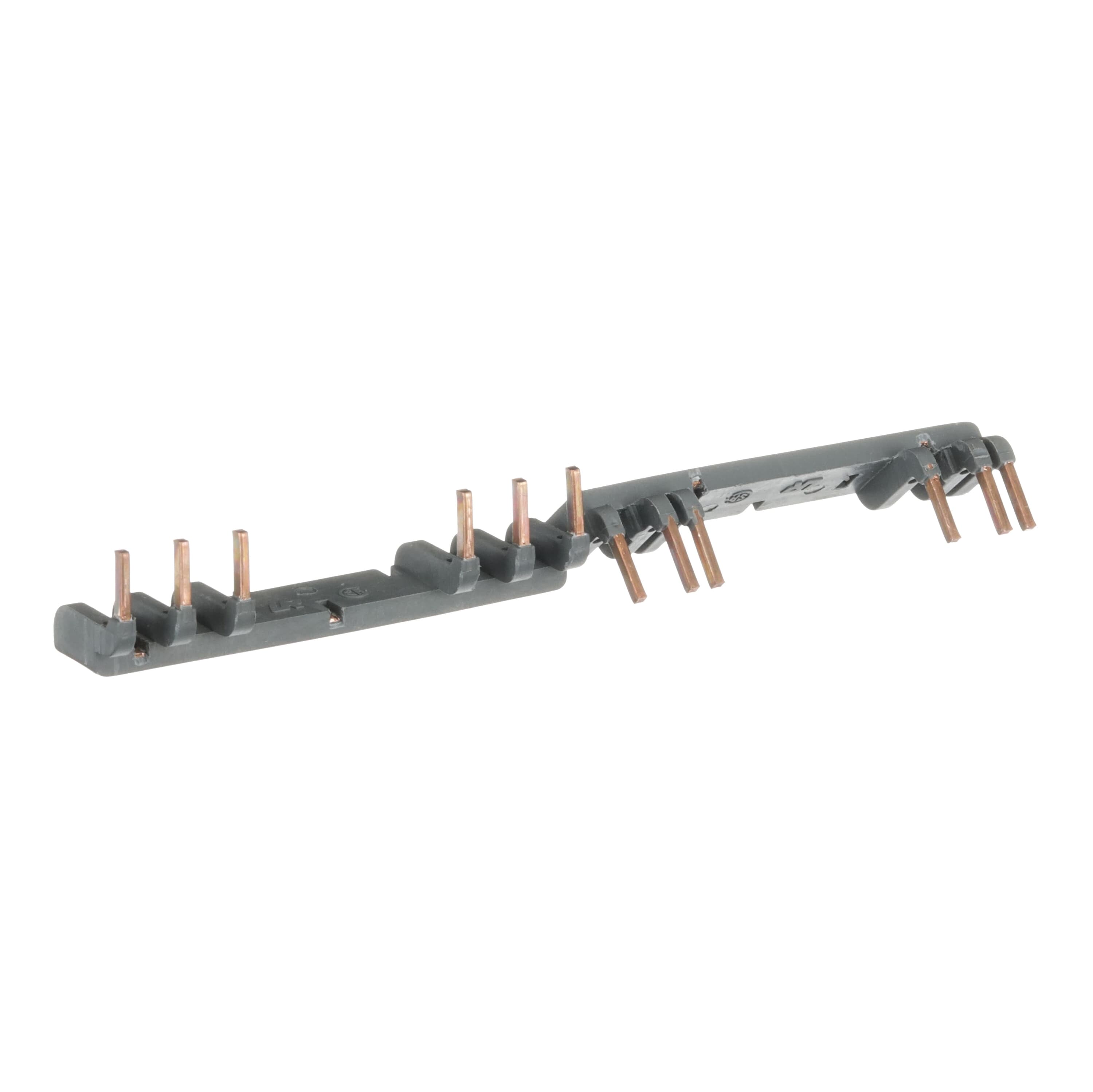

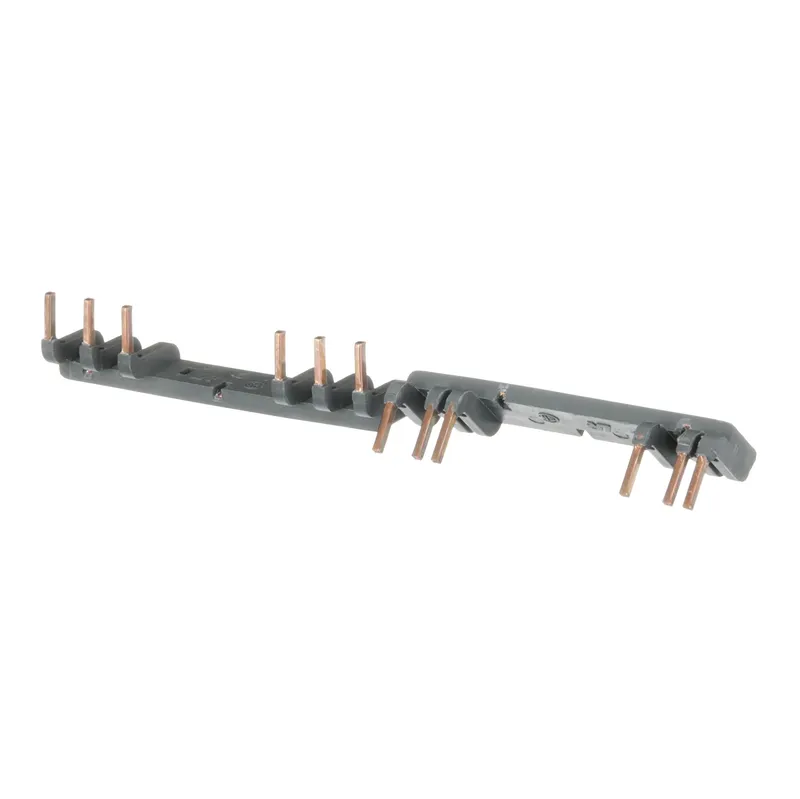

BER 16V is a connection set for reversing contactors used to easily connect the main poles of two 3-pole A9 ... A16 contactors using a mechanical or a mechanical / electrical interlock unit.
The BER 16V connection sets are made up of:
• 1 upstream and 1 downstream connection sets
• Insulated, solid copper bars.
Specifications
General
| Order code (ABB product ID) | 1SBN081411R1000 |
| Type | BER 16V |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 95 mm |
| Product Net Depth / Length | 12 mm |
| Product Net Height | 36.5 mm |
| Product Net Weight | 0.045 kg |
Technical
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Screw Terminals |
| Suitable For | A9, A12, A16, AL9, AL9Z, AL12, AL12Z, AL16, AL16Z, TAL9, TAL12, TAL16, AX06, AX09, AX12, AX18 |
| Product Name | Connection Set |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39122221 |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Instructions and Manuals (1SBC101014M5501) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
