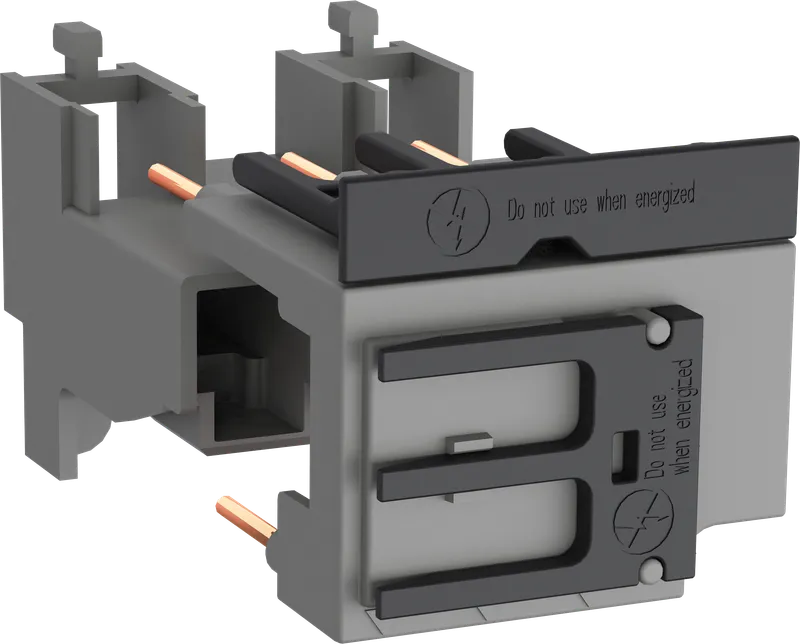

ABB 1SBN081325T1000 – BEA16-4KF Connecting Link with Manual Motor Starter
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.044 kg |
| UPC / EAN | 3471523019034 |
Shipping & availability
When can 1SBN081325T1000 be shipped?
1SBN081325T1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN081325T1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN081325T1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN081325T1000, subject to availability and destination.
BEA16-4KF is an insulated 3-pole connecting link used to connect AF09..K ... AF16..K or AFC09..K ... AFC16..K contactors with the MS132-K manual motor starters. The BEA16-4KF ensures the electrical and mechanical connection between the contactor or reversing contactors and the associated manual motor starter. Black fork pieces help for a quick dismounting of the DOL starter.
With the Push-in Spring terminals, one push is all you need for a faster than ever installation, an easier than ever wiring and a reliable as ever connection.
Specifications
General
| Order code (ABB product ID) | 1SBN081325T1000 |
| Type | BEA16-4KF |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85389099 |
Dimensions
| Product Net Width | 45 mm |
| Product Net Depth / Length | 90 mm |
| Product Net Height | 32.5 mm |
| Product Net Weight | 0.044 kg |
Technical
| Standards | UL 60947-4-1, CSA C22.2 No. 60947-4-1 |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Frequency (f) | Main Circuit 50 / 60 Hz |
| Terminal Type | Push-in Spring Terminals |
| Suitable For | MS132, AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AFC09, AFC12, AFC16 |
| Product Name | Connecting Link |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39120000 |
| E-Number (Finland) | 3709779 |
| E-Number (Sweden) | 3210697 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101065M6801) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
