ABB 1SBN020113R1000 – TEF4S-ON Frontal Electronic Timer
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Block Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.065 kg |
| UPC / EAN | 3471523130647 |
Shipping & availability
When can 1SBN020113R1000 be shipped?
1SBN020113R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SBN020113R1000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SBN020113R1000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN020113R1000, subject to availability and destination.

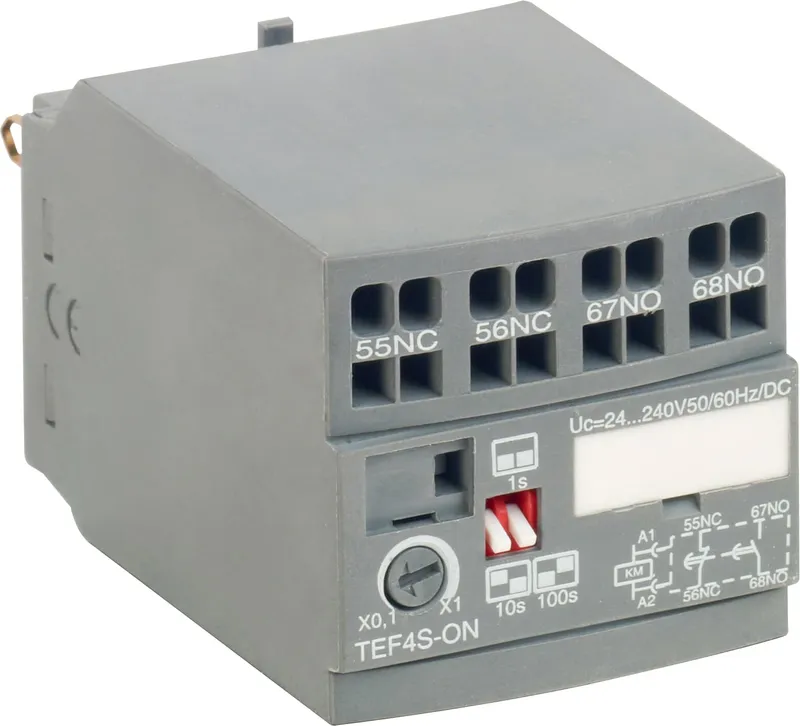

TEF4S-ON is a frontal electronic timer used to realize the timing function and allow a compact solution in the cabinet compared to separate timers. TEF4S electronic timers, equipped with spring terminals, are front-mounted and locked on AF, AFC contactors or NF, NFC contactor relays equipped with screw or push-in terminals. A mechanical indicator allows to show the state of the contactor. TEF4S electronic timers are supplied by a direct plug-in parallel connection to the coil terminals A1 - A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in protection against surges in the contactor coil. The TEF4S is available for a wide control voltage range 24...240 V AC/DC. TEF4S allow time-delayed functions up to 100 s in 3 distinct time ranges, independently of the control system. The time delay ranges are selected by a switch and the time delay can be adjusted by means of a rotary switch. The timing function of TEF4S-ON is activated by closing the device on which the timer is mounted.
Specifications
General
| Order code (ABB product ID) | 1SBN020113R1000 |
| Type | TEF4S-ON |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85389091 |
Dimensions
| Product Net Width | 43 mm |
| Product Net Depth / Length | 67.7 mm |
| Product Net Height | 41.3 mm |
| Product Net Weight | 0.065 kg |
Technical
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 1 |
| Number of Poles | 2P |
| Standards | IEC/EN 60947-5-1, UL 508, CSA C22-2 No. 14-18 |
| Rated Operational Voltage | Auxiliary Circuit 240 V AC, Auxiliary Circuit 24 V DC |
| Rated Frequency (f) | Auxiliary Circuit 50 / 60 Hz, Control Circuit 50 / 60 Hz |
| Conventional Free-air Thermal Current (I<sub>th</sub>) | acc. to IEC 60947-5-1, Θ = 40 °C 5 A |
| Rated Operational Current AC-15 (I<sub>e</sub>) | (24 / 127 V) 3 A, (220 / 240 V) 1.5 A |
| Rated Operational Current DC-13 (I<sub>e</sub>) | (24 V) 1 A / 24 W |
| Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>) | for 0.1 s 8 A, for 1 s 8 A |
| Rated Insulation Voltage (U<sub>i</sub>) | acc. to IEC 60947-5-1 400 V, acc. to UL/CSA 300 V |
| Rated Impulse Withstand Voltage (U<sub>imp</sub>) | 4 kV |
| Maximum Electrical Switching Frequency | (AC-15) 1200 cycles per hour, (DC-13) 900 cycles per hour |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Power Loss | at 3 A per Pole 0.1 W |
| Degree of Protection | acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20 |
| Terminal Type | Spring Terminals |
| Timer Relay Type | ON-Delay |
| Suitable For | AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, NF22E, NFZ22E, NF31E, NFZ31E, NF40E, NFZ40E, NFC22E, NFC31E, NFC40E |
| Product Name | Electronic Timer |
Environmental
| Ambient Air Temperature | Close to Contactor for Storage -40 ... +80 °C, Operation -25 ... +70 °C |
| Climatic Withstand | Category B according to IEC 60947-1 Annex Q |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
| Resistance to Vibrations | 3g Closed Position & 2g Open Position 5 ... 300 Hz |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | K |
| ETIM 7 | EC002060 - Timer block |
| ETIM 8 | EC002060 - Timer block |
| ETIM 9 | EC002060 - Timer block |
| eClass | V11.0 : 27371308 |
| UNSPSC | 39121500 |
| E-Number (Finland) | 3708073 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (1SBC101026M6801) | |
| Instructions and Manuals (Part 2) (1SAC200017M0002) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
