ABB 1SBN020112R1000 – TEF4-ON Frontal Electronic Timer

MPN: 1SBN020112R1000 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.065 kg
Country of origin	China
UPC / EAN	3471523130630

Shipping & availability

When can 1SBN020112R1000 be shipped?

1SBN020112R1000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBN020112R1000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBN020112R1000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN020112R1000, subject to availability and destination.

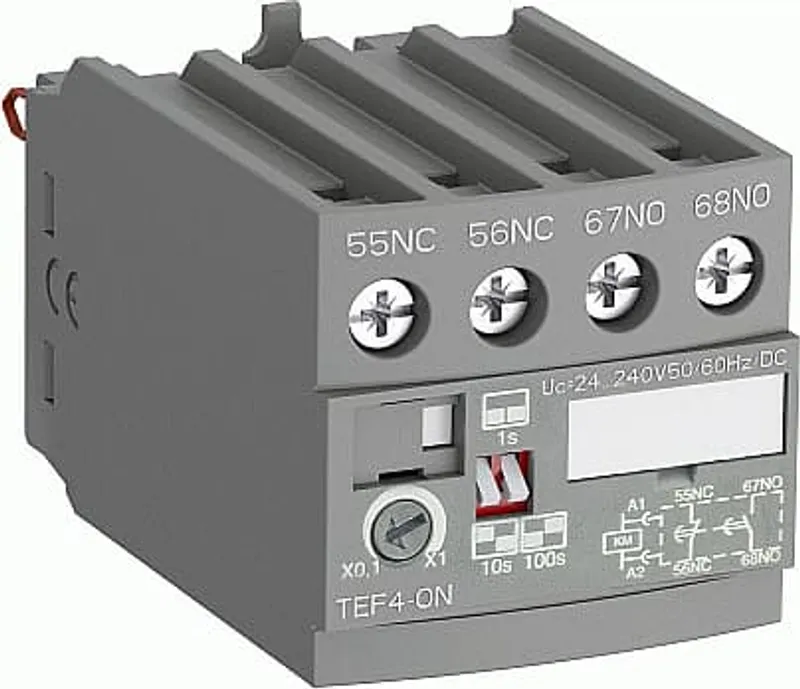

TEF4-ON is a frontal electronic timer used to realize the timing function and allow a compact solution in the cabinet compared to separate timers. TEF4 electronic timers are front-mounted and locked on AF, AFC contactors or NF, NFC contactor relays. A mechanical indicator allows to show the state of the contactor. TEF4 electronic timers are supplied by a direct plug-in parallel connection to the coil terminals A1 - A2 of the contactor or contactor relay. A varistor is integrated on the timer to offer a built-in protection against surges in the contactor coil. The TEF4 is available for a wide control voltage range 24...240 V AC/DC. TEF4 allow time-delayed functions up to 100 s in 3 distinct time ranges, independently of the control system. The time delay ranges are selected by a switch and the time delay can be adjusted by means of a rotary switch. The timing function of TEF4-ON is activated by closing the device on which the timer is mounted.

Specifications

General

Order code (ABB product ID)	1SBN020112R1000
Type	TEF4-ON
Lifecycle	Active (current ABB product)
Country of origin	China

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85389091

Dimensions

Product Net Width	43 mm
Product Net Depth / Length	67.7 mm
Product Net Height	41.6 mm
Product Net Weight	0.065 kg

Technical

Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	1
Number of Poles	2P
Standards	IEC/EN 60947-5-1, UL 508, UL 60335-2-40 LZGH2 A2L, CSA C22-2 No. 14-18, CSA C22.2 No. 60335-2-40 LZGH2 A2L
Rated Operational Voltage	Auxiliary Circuit 240 V AC, Auxiliary Circuit 24 V DC
Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz, Control Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-5-1, Θ = 40 °C 5 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(24 / 127 V) 3 A, (220 / 240 V) 1.5 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 1 A / 24 W
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	for 0.1 s 8 A, for 1 s 8 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-5-1 400 V, acc. to UL/CSA 300 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	4 kV
Maximum Electrical Switching Frequency	(AC-15) 1200 cycles per hour, (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency	3600 cycles per hour
Power Loss	at 3 A per Pole 0.1 W
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1/2x 0.5 ... 2.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Rigid Solid 1/2x 1 ... 2.5 mm², Rigid Stranded 1/2x 1 ... 2.5 mm²
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening Torque	Auxiliary Circuit 1.2 N·m
Terminal Type	Screw Terminals
Timer Relay Type	ON-Delay
Suitable For	AF09, AF09Z, AF12, AF12Z, AF16, AF16Z, AF26, AF26Z, AF30, AF30Z, AF38, AF38Z, AF40, AF52, AF65, AF80, AF96, AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, NF22E, NFZ22E, NF31E, NFZ31E, NF40E, NFZ40E, NFC22E, NFC31E, NFC40E
Product Name	Electronic Timer

Technical UL/CSA

Tightening Torque UL/CSA

Auxiliary Circuit 11 in·lb

Environmental

Ambient Air Temperature	Close to Contactor for Storage -40 ... +80 °C, Operation -25 ... +70 °C
Climatic Withstand	Category B according to IEC 60947-1 Annex Q
Maximum Operating Altitude Permissible	Without Derating 2000 m
Resistance to Vibrations	3g Closed Position & 2g Open Position 5 ... 300 Hz

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC002060 - Timer block
ETIM 8	EC002060 - Timer block
ETIM 9	EC002060 - Timer block
eClass	V11.0 : 27371308
UNSPSC	39121523
IDEA Granular Category Code (IGCC)	4746 >> Timer controls
E-Number (Finland)	3706012
E-Number (Sweden)	3210205

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (1SBC101026M6801)
Instructions and Manuals (Part 2) (1SAC200017M0002)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (10)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
A2L Certificate – UL (9AKK108469A4895)
A2L Certificate – UL (9AKK108469A4896)
CQC Certificate (CQC2012010303572179)
Declaration of Conformity - CCC (2020980303000172)
Declaration of Conformity - CE (1SBD250008U1000)
Declaration of Conformity - UKCA (1SBD250039U1000)
UL Certificate (UL-US-L252354-192-31702102-2)
UL Certificate (UL-CA-L252354-392-31702102-2)
