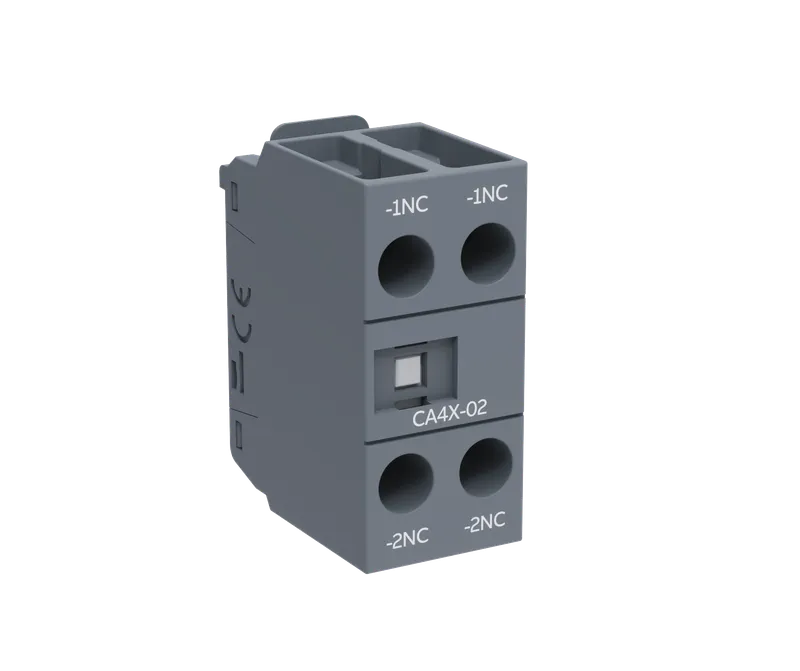

CA4X-02 is a 2-pole front mounted auxiliary contact block equipped with screw terminals and can be fitted on AFC09...96 contactors and NFC contactor relays. CA4X-02 is available with 2 N.C. instantaneous contacts for standard industrial environments.

Specifications

General

Order code (ABB product ID)	1SBN011310R1002
Type	CA4X-02
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	5 piece
Customs Tariff Number	85389099

Dimensions

Product Net Width	43 mm
Product Net Depth / Length	19.9 mm
Product Net Height	23.6 mm
Product Net Weight	0.024 kg

Technical

Number of Auxiliary Contacts NO	0
Number of Auxiliary Contacts NC	2
Number of Poles	2P
Standards	UL 60947-5-1, IEC/EN 60947-1, IEC/EN 60947-5-1, GB14048.5
Rated Operational Voltage	Auxiliary Circuit 690 V
Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 2.4 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 4 A, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.27 A / 60 W, (250 V) 0.27 A / 68 W, (400 V) 0.15 A / 60 W, (500 V) 0.13 A / 65 W, (600 V) 0.1 A / 60 W
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	for 0.1 s 140 A, for 1 s 100 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V, acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	6 kV
Maximum Electrical Switching Frequency	(AC-15) 1200 cycles per hour, (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency	3600 cycles per hour
Power Loss	at 6 A per Pole 0.1 W
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm², Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm², Rigid 1/2x 1 ... 2.5 mm²
Wire Stripping Length	Auxiliary Circuit 10 mm
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Tightening Torque	Auxiliary Circuit 1.2 N·m
Terminal Type	Screw Terminals
Suitable For	AFC09, AFC12, AFC16, AFC26, AFC30, AFC38, AFC40, AFC52, AFC65, AFC80, AFC96, NFC22E, NFC31E, NFC40E
Product Name	Auxiliary Contact Block

Technical UL/CSA

Tightening Torque UL/CSA

Auxiliary Circuit 11 in·lb

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000041 - Auxiliary contact block
eClass	V11.0 : 27371302
UNSPSC	39121500
