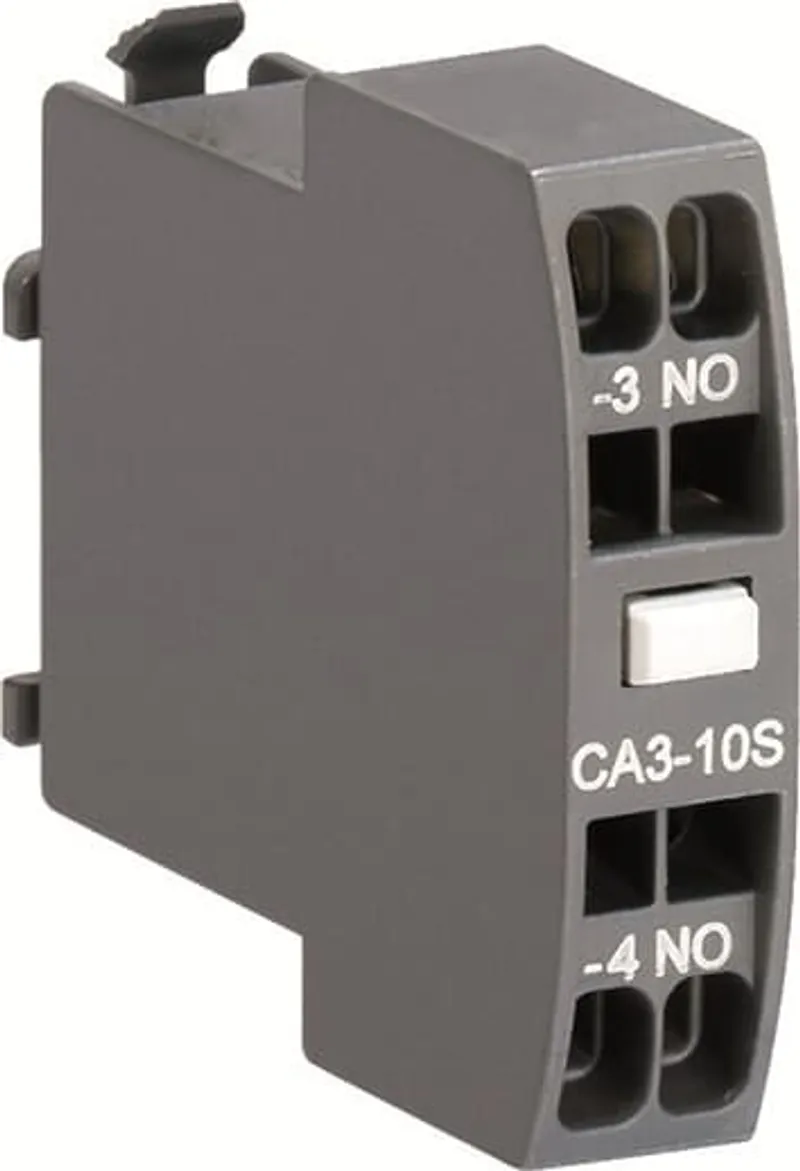

ABB 1SBN011019T1010 – CA3-10S Auxiliary Contact Block

MPN: 1SBN011019T1010 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB Block Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.011 kg
UPC / EAN	6975486359338

Shipping & availability

When can 1SBN011019T1010 be shipped?

1SBN011019T1010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBN011019T1010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBN011019T1010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBN011019T1010, subject to availability and destination.

CA3-10S is a 1-pole front mounted auxiliary contact block equipped with spring terminals and can be fitted on AS(L)09S…16S contactors and NS(L)...S contactor relays. CA3-10S is available with 1 N.O. instantaneous contacts for standard industrial environments.

Specifications

General

Order code (ABB product ID)	1SBN011019T1010
Type	CA3-10S
Lifecycle	Active (current ABB product)

Ordering

Minimum Order Quantity	10 piece
Customs Tariff Number	85389099

Dimensions

Product Net Width	44.2 mm
Product Net Depth / Length	9.5 mm
Product Net Height	33.5 mm
Product Net Weight	0.011 kg

Technical

Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	0
Rated Operational Voltage	Auxiliary Circuit 690 V, Main Circuit 690 V
Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-5-1, Θ = 40 °C 10 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(500 V) NC 2, (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (400 / 440 V) 3 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 6 A / 144 W, (48 V) 2.8 A / 134 W, (72 V) 1 A / 72 W, (110 V) 0.55 A / 60 W, (125 V) 0.55 A / 69 W, (220 V) 0.27 A / 60 W, (250 V) 0.27 A / 68 W
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	for 0.1 s 140 A, for 1 s 100 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 690 V, acc. to UL/CSA 600 V
Maximum Electrical Switching Frequency	(AC-15) 1200 cycles per hour, (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency	3600 cycles per hour
Power Loss	at 6 A per Pole 0.1 W
Connecting Capacity Auxiliary Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm², Rigid 1/2x 0.75 ... 2.5 mm²
Connecting Capacity Control Circuit	Flexible with Ferrule 1/2x 0.75 ... 2.5 mm², Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm², Rigid 1/2x 0.75 ... 2.5 mm²
Wire Stripping Length	Auxiliary Circuit 10 mm
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal Type	Spring Terminals
Suitable For	AS09, AS12, AS16, ASL09, ASL12, ASL16, VAS09, VAS12, VAS16, VASL09, VASL12, VASL16, NS, NSL
Product Name	Auxiliary Contact Block

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	K
ETIM 7	EC000041 - Auxiliary contact block
ETIM 8	EC000041 - Auxiliary contact block
ETIM 9	EC000041 - Auxiliary contact block
eClass	V11.0 : 27371302
UNSPSC	39121522
IDEA Granular Category Code (IGCC)	4743 >> Auxiliary contact block

Downloads & documentation

Official documents from ABB, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet, Technical Information (1SBC100214C0202)
Instructions and Manuals (1SBC101020M9701)

CAD & dimension drawings

CAD Dimensional Drawing (2CDC001079B0201)

Certificates (7)

REACH Declaration (2CMT2021-006202)
RoHS Declaration (2CMT2021-006277)
CQC Certificate (CQC2007010305252103)
Declaration of Conformity - CCC (2020980305001186)
Declaration of Conformity - CE (1SBD250017U1000)
Declaration of Conformity - UKCA (1SBD250052U1000)
UL Certificate (220108-E312527A)
