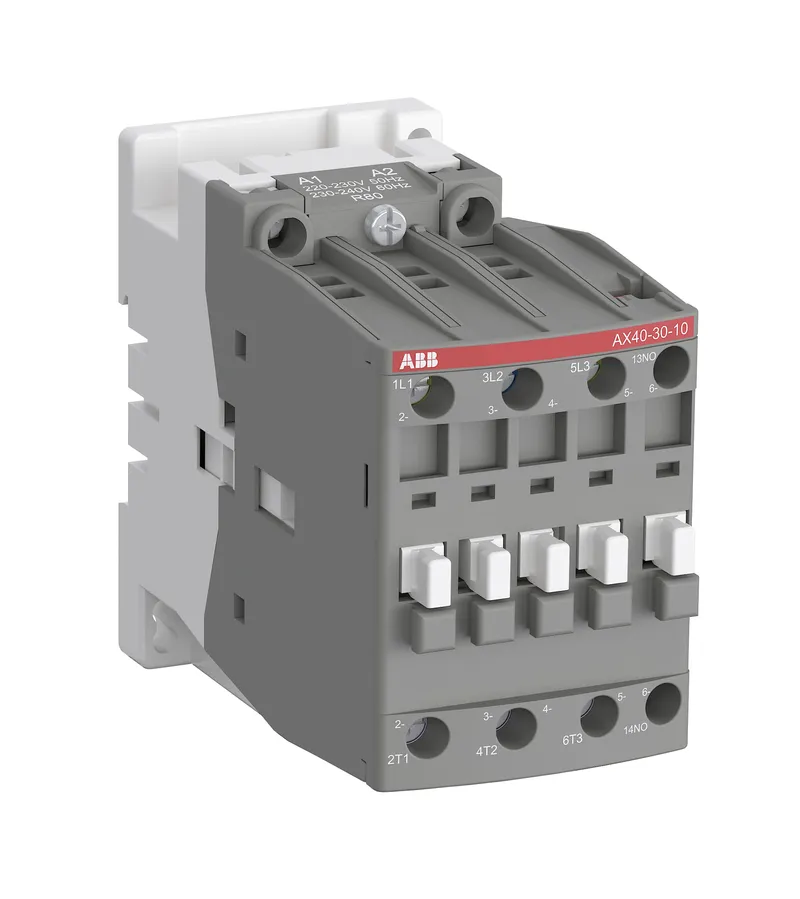

ABB 1SBL321074R8010 – AX40-30-10-80 220-230V50Hz/230-240V60Hz Contactor

MPN: 1SBL321074R8010 · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	ABB AX Contactors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.667 kg
Country of origin	India
UPC / EAN	3471522401809

Shipping & availability

When can 1SBL321074R8010 be shipped?

1SBL321074R8010 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SBL321074R8010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SBL321074R8010 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SBL321074R8010, subject to availability and destination.

AX32, AX40 contactors are mainly used for controlling 3-phase motors and power circuits up to 690 V AC. These contactors are of the block type design with: – 3 main poles and 1 built-in auxiliary contact – control circuit: AC operated – add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.

Specifications

General

Order code (ABB product ID)	1SBL321074R8010
Type	AX40-30-10-80
Lifecycle	Active (current ABB product)
Country of origin	India

Ordering

Minimum Order Quantity	1 piece
Customs Tariff Number	85364900

Dimensions

Product Net Width	54 mm
Product Net Depth / Length	90 mm
Product Net Height	108.3 mm
Product Net Weight	0.667 kg

Technical

Number of Main Contacts NO	3
Number of Main Contacts NC	0
Number of Auxiliary Contacts NO	1
Number of Auxiliary Contacts NC	0
Number of Poles	3P
Rated Operational Voltage	Auxiliary Circuit 690 V, Main Circuit 690 V
Rated Frequency (f)	Auxiliary Circuit 50 / 60 Hz, Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (I<sub>th</sub>)	acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 65 A, acc. to IEC 60947-5-1, Θ = 40 °C 16 A
Rated Operational Current AC-1 (I<sub>e</sub>)	(220 / 240 V) 55 °C 60 A, (690 V) 40 °C 60 A, (690 V) 70 °C 42 A
Rated Operational Current AC-3 (I<sub>e</sub>)	(415 V) 55 °C 40 A, (440 V) 55 °C 37 A, (500 V) 55 °C 33 A, (690 V) 55 °C 25 A, (380 / 400 V) 55 °C 40 A, (220 / 230 / 240 V) 55 °C 40 A
Rated Operational Current AC-15 (I<sub>e</sub>)	(500 V) NC 2, (500 V) 2 A, (690 V) 2 A, (24 / 127 V) 6 A, (220 / 240 V) 4 A, (380 / 400 V) 3 A, (400 / 440 V) 2 A
Rated Operational Current DC-13 (I<sub>e</sub>)	(24 V) 6 A / 144 W, (110 V) 0.55 A / 60 W, (125 V) 1.1 A / 138 W, (220 V) 0.55 A / 121 W, (250 V) 0.55 A / 138 W, (400 V) 2.8 A / 134 W, (500 V) 2 A / 144 W
Rated Operational Power AC-3 (P<sub>e</sub>)	(415 V) 18.5 kW, (440 V) 22 kW, (500 V) 22 kW, (690 V) 22 kW, (380 / 400 V) 18.5 kW, (220 / 230 / 240 V) 11 kW
Rated Short-time Withstand Current Low Voltage (I<sub>cw</sub>)	at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 400 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 65 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 600 A, at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A, for 0.1 s 140 A, for 1 s 100 A
Maximum Breaking Capacity	cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 820 A, cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 340 A
Rated Insulation Voltage (U<sub>i</sub>)	acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (U<sub>imp</sub>)	Auxiliary Circuit 6 kV
Maximum Electrical Switching Frequency	(AC-1) 600 cycles per hour, (AC-15) 1200 cycles per hour, (AC-3) 1200 cycles per hour, (DC-13) 900 cycles per hour
Maximum Mechanical Switching Frequency	3600 cycles per hour
Rated Control Circuit Voltage (U<sub>c</sub>)	50 Hz 220 ... 230 V, 60 Hz 230 ... 240 V
Coil Consumption	Average Holding Value 50 / 60 Hz 12 V·A, Average Holding Value 50 Hz 12 V·A, Average Holding Value 60 Hz 12 V·A, Average Holding Value, from Warm State 3 W, Average Pull-in Value 50 Hz 120 V·A, Average Pull-in Value 60 Hz 140 V·A
Power Loss	at Rated Operating Conditions AC-1 per Pole 3 W, at Rated Operating Conditions AC-3 per Pole 1.3 W
Operate Time	Between Coil De-energization and NC Contact Closing 7 ... 14 ms, Between Coil De-energization and NO Contact Opening 4 ... 11 ms, Between Coil Energization and NC Contact Opening 6 ... 18 ms, Between Coil Energization and NO Contact Closing 8 ... 21 ms
Degree of Protection	acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20, acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Tightening Torque	Auxiliary Circuit 1 N·m, Control Circuit 1 N·m, Main Circuit 2.3 N·m
Terminal Type	Screw Terminals
Product Name	Block Contactor

Technical UL/CSA

General Use Rating UL/CSA	(600 V AC) 60 A
Horsepower Rating UL/CSA	(120 V AC) Single Phase 3 hp, (200 ... 208 V AC) Three Phase 10 hp, (220 ... 240 V AC) Three Phase 15, (240 V AC) Single Phase 7.5 hp, (440 ... 480 V AC) Three Phase 30 hp, (550 ... 600 V AC) Three Phase 40 hp
Tightening Torque UL/CSA	Auxiliary Circuit 9 in·lb, Control Circuit 9 in·lb, Main Circuit 20 in·lb
Full Load Amps Motor Use	(120 V AC) Single Phase 34 A, (200 ... 208 V AC) Three Phase 32.2 A, (220 ... 240 V AC) Three Phase 42 A, (240 V AC) Single Phase 40 A, (440 ... 480 V AC) Three Phase 40 A, (550 ... 600 V AC) Three Phase 41 A

Environmental

Ambient Air Temperature	Close to Contactor Fitted with Thermal O/L Relay -25 ... 55 °C, Close to Contactor without Thermal O/L Relay -40 ... 70 °C, Close to Contactor for Storage -60 ... +80 °C, Near Contactor for Operation in Free Air -40 ... 70 °C
Climatic Withstand	according to IEC 60068-2-30 and 60068-2-11 - UTE C 63-100 Specification II
Maximum Operating Altitude Permissible	Without Derating 3000 m

Material Compliance

RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	d9555e2a-368d-41ee-8ae7-27c24af40588 Bulgaria
Simplified SCIP	0ae1fe1e-c83b-46ca-89c1-07b5d482e44e Belgium, 122ef34c-6042-4382-8878-0f1d48ad762c Poland, 16f8bd2d-942b-488e-addd-13cb3af1858a Finland, 26682576-03f1-43f6-8928-03019c48ad39 Germany, 2c04b54a-7094-43bf-aa9f-866b80e71d37 Croatia, 2cdfdba9-e87c-4d74-8e07-eee3965300e7 Norway, 33744b7d-3e8d-4520-b929-134f513da6a8 France, 3b624912-4468-470d-b28a-4bd604758620 Poland, 44cde3d3-bb9b-4af8-8cb4-15de0fb2fa4f Germany, 463b054c-b98b-490e-bd11-1ae9f7fef7f0 France, 635ddf8a-15fe-4267-bb30-57e755a6c1da Netherlands, 68f7c907-c36f-401c-b030-3f554af8ba3e Germany, 6ae85869-bf59-4da4-9709-958eec520c34 Italy, 7018fd65-e8c4-4a2a-bb0e-558171732cd0 Sweden, 73d1582f-cf16-4296-b314-b8bb8938ea59 Greece, 77efb287-fa1d-46b1-bf0a-857c80c58b7b Denmark, 780a5937-91b2-4047-b8c5-3fd1ae8ea470 Sweden, 84a7f303-1ddc-4928-b42a-d58037f1aabc Belgium, 8b633fa0-061a-49b5-9bef-88f189ddb035 Spain, 9308489a-549e-4a74-ae89-c1ac4efd6cfd Germany, abf883b4-54ba-48b1-a901-6027e370fea2 Portugal, b488227a-69ae-4e33-910c-85dd7f736ae7 Hungary, b4e0f02f-9d0a-45f8-b9e5-9f6d830a25a3 Estonia, be53e08d-5a06-4e3c-9852-450444c0da66 Czechia, e33764a8-a284-4193-94a4-247e62ff988c Poland, e91f3e94-af20-4fbe-b9c0-995452a48485 Hungary, f5bc4fea-7417-46fc-832c-7b4759f8f95a Germany
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification Code	Q
ETIM 7	EC000066 - Power contactor, AC switching
ETIM 8	EC000066 - Power contactor, AC switching
ETIM 9	EC000066 - Power contactor, AC switching
eClass	V11.0 : 27371003
UNSPSC	39121529
IDEA Granular Category Code (IGCC)	4755 >> Contactors
E-Number (Finland)	3707349
