ABB 1SAZ401110R0001

DB200 Single Mounting Kit

MPN
1SAZ401110R0001
EAN
4013614237768
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 1SAZ401110R0001?

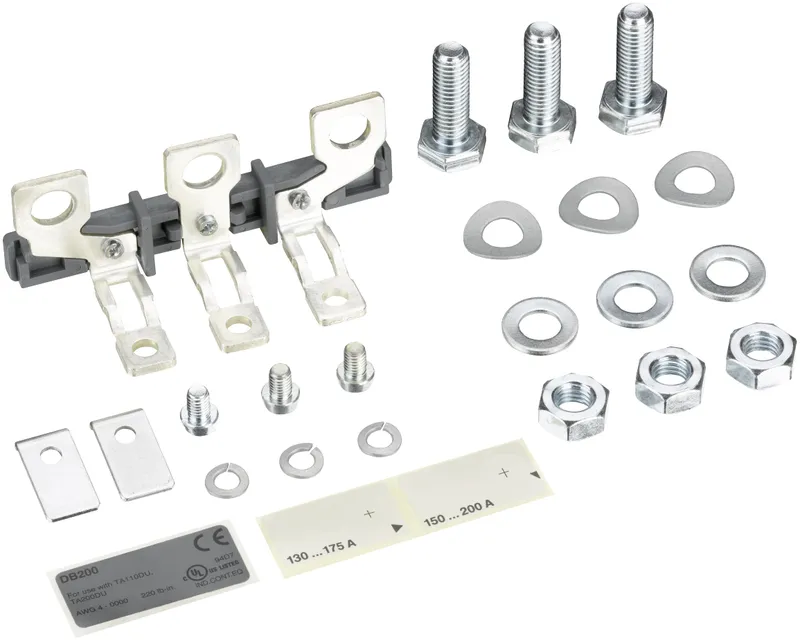

The DB200 single mounting kit allows the installation of TA110DU or TA200DU thermal overload relays without a contactor on a mounting plate.

Specifications

General

Order code (ABB product ID)1SAZ401110R0001
TypeDB200
LifecycleActive (current ABB product)
Country of originIndia

Ordering

Minimum Order Quantity1 piece
Customs Tariff Number85389099

Dimensions

Product Net Width105 mm
Product Net Height43 mm
Product Net Depth / Length40 mm
Product Net Weight0.225 kg

Technical

Rated Operational VoltageMain Circuit 690 V AC
Rated Frequency (f)Main Circuit 50 Hz, Main Circuit 60 Hz
Rated Impulse Withstand Voltage (U<sub>imp</sub>)Main Circuit 6 kV
Rated Insulation Voltage (U<sub>i</sub>)690 V
Number of Poles3P
Pollution Degree3
Connecting Capacity Main CircuitHole Diameter > 10 mm², Rigid or Flexible with Cable Lug 1x 25 ... 120 mm²
Tightening TorqueMain Circuit 25 N·m
Suitable ForTA110DU, TA200DU
StandardsCSA 22.2 No. 14, IEC/EN 60947-1, IEC/EN 60947-4-1, UL 508

Technical UL/CSA

Maximum Operating Voltage UL/CSAMain Circuit 600 V AC
Connecting Capacity Main Circuit UL/CSAFlexible 1x 4-0000 AWG

Environmental

Ambient Air TemperatureOperation -25 ... +55 °C, Storage -40 ... +70 °C
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Material Compliance

WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards

Object Classification CodeQ
ETIM 9EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 10EC002498 - Accessories/spare parts for low-voltage switch technology
eClassV11.0 : 27371392
UNSPSC31162313
IDEA Granular Category Code (IGCC)2988 >> Mounting kits
E-Number (Finland)3850488
E-Number (Norway)4116898
E-Number (Sweden)3229006

1SAZ401110R0001: frequently asked questions

When can 1SAZ401110R0001 be shipped?

1SAZ401110R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SAZ401110R0001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SAZ401110R0001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAZ401110R0001, subject to availability and destination.
