ABB 1SAP565200R0001

CP665-WEB

MPN
1SAP565200R0001
Category
Leaflets
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 1SAP565200R0001?

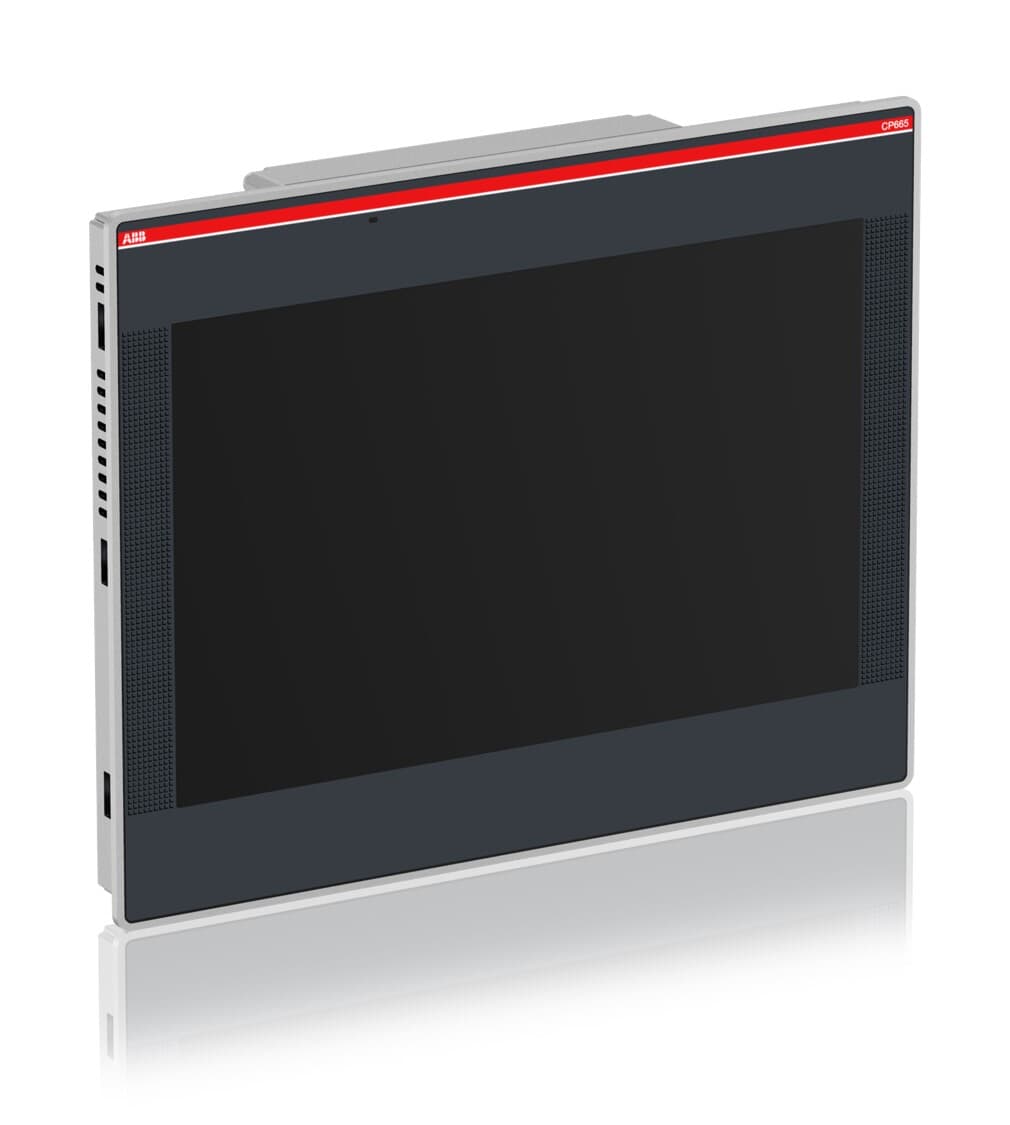

CP665-WEB Control Panel 13.3" TFT touch screen, 64 K colors, 1280 x 800 pixel,

microbrowser for V2.3 webserver

Specifications

Additional Information

ABB Type DesignationCP665-WEB
Ambient Air TemperatureOperation 0 ... +50 °C, Storage -20 ... +70 °C
CN885371091
Communication Interface2x Ethernet 10/100Mbit, 1x RS-232/-422/-485, 2x USB 2.0 Host, 1x SD-card slot, 2x Expansion slot
Country or Territory of OriginItaly, Germany
Customs Tariff Number85371091
Degree of Protectionacc. to IEC 60529 Front IP66, acc. to IEC 60529 Housing IP20
EAN4013614493164
eClass27-33-02-01
Frame SizeUndefined
Gross Weight3.4 kg kg
Housing MaterialFront side: Aluminium, Reverse side: Aluminium
Invoice DescriptionCP665-WEB Control Panel 13.3" with microbrowser for V2.3 webserver
Made To OrderNo
Memory Size User Data256 MB
Memory Size User Program256 MB
Memory Type User DataFlash Disk
Memory Type User ProgramDDR RAM
Minimum Order Quantity1 piece
Mounting TypeFront face
Order Multiple1 piece
Package Level 1 Depth / Length420 mm mm
Package Level 1 Height140 mm mm
Package Level 1 Units1 carton
Package Level 1 Width340 mm mm
Power Consumption (@Pcons)28 W W
Power Supply24 (18 ... 30) V DC V
Product Main TypeCP665
Product NameControl Panels
Product Net Depth / Length60 mm mm
Product Net Height267 mm mm
Product Net Weight2.34 kg kg
Product Net Width336 mm mm
Product TypePLC-CP600
Quote OnlyNo
Real-time ClockHardware clock, battery back-up
SCIPa93c87cf-555a-464d-adf4-46860c9d6ab4 Germany
Screen Color64k colors
Screen Resolution1280 x 800 pixel
Screen Size16:9 wide screen 13.3 in
Screen TypeTFT color, LED backlight, touch screen
SecurityPassword protection with 8 user levels
Selling Unit of Measurepiece
Serial Port 1 TypeRS232/RS422/RS485
Service Life40000 hour
Short DescriptionCP665-WEB Control Panel 13.3"microbr.f.V2.3websv.
Stocked At (Warehouses)Menden, Germany, Hangzhou, China, Bairro Santo Antonio, Brazil
UNSPSC32151703
USB Port 1 TypeHost, version 2.0
USB Port 2 TypeHost, version 2.0
WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm) cm

1SAP565200R0001: frequently asked questions

When can 1SAP565200R0001 be shipped?

1SAP565200R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SAP565200R0001 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SAP565200R0001 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP565200R0001, subject to availability and destination.
