What is the ABB 1SAP562110R0001?

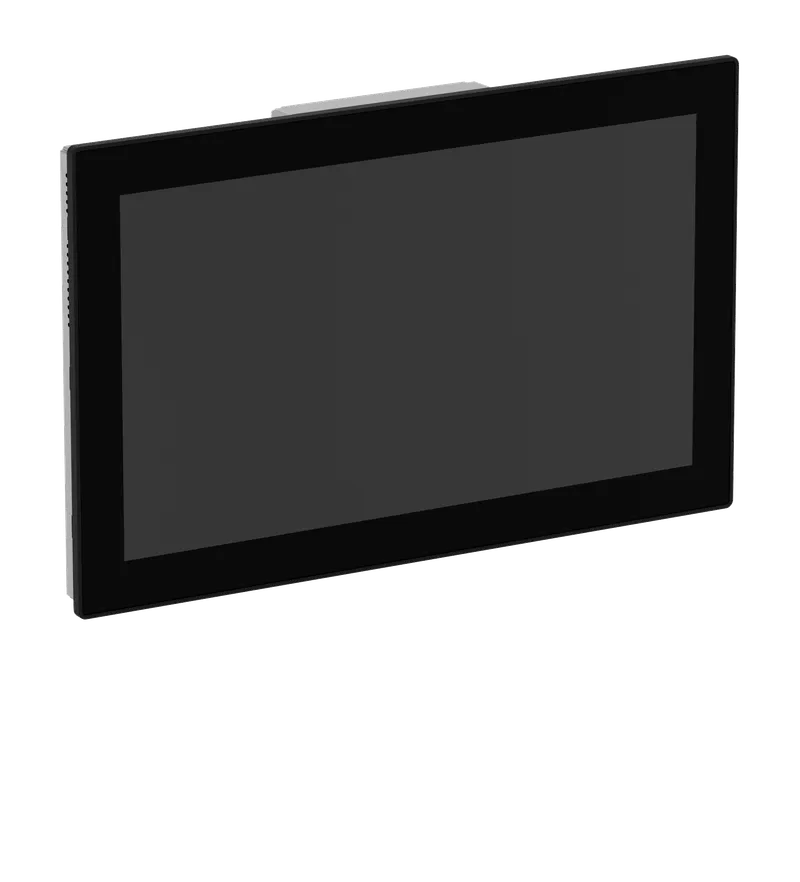

CP6621: CP600-Pro Control panel. 21.5" TFT multi-touch screen, 16 M colors, 1920 x 1080 pixel, Chromium Browser. PB610 applications.

Specifications

Ordering

CN885371091
Invoice DescriptionControl panel. 21.5" TFT multi-touch screen, 16 M colors, 1920 x 1080 pixel, Chromium Browser (CP6621) M
Made To OrderNo
Minimum Order Quantity1 piece
Order Multiple1 piece
Selling Unit of Measurepiece

Dimensions

Product Net Weight5.8 kg kg
Product Net Depth / Length65 mm mm
Product Net Height347 mm mm
Product Net Width552 mm mm
Gross Weight6 kg kg
Package Level 1 Depth / Length655 mm mm
Package Level 1 Height145 mm mm
Package Level 1 Width450 mm mm
Package Level 1 Units1 carton

Certificates and Declarations

Declaration of Conformity - CE3ADR980149
REACH Date20241206
REACH Declaration3ADR980139
REACH InformationTrue - contains substances > 0.1 mass percentage
SCIP870cd730-6afc-4248-a300-90534a80fc57 Germany
RoHS Declaration3ADR980149
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function21.5" TFT multi-touch screen, 16 M colors, 1920 x 1080 pixel, Chromium Browser M
Screen Size21.5 in
Screen Color16000000 Colors
Screen Resolution1920 x 1080 pixel
Display TypeTFT Capacitive Multitouch
Number of Hardware InterfacesIndustrial Ethernet 3, Other 1, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 2, Wireless 0, PROFINET 0
Memory Size240000 kB
Security50
Input Voltage TypeDC
Degree of ProtectionFront IP66
Supply Voltage18 … 32 V DC V
Built-In Depth (t2)56 mm mm
Ambient Air TemperatureOperation -20 … +60 °C

Additional Information

Product Main TypeCP6621
Product NameControl Panels

External Classifications and Standards

eClass27-33-02-01
ETIM 8EC001412 - Graphic panel
ETIM 9EC001412 - Graphic panel
ETIM 10EC001412 - Graphic panel
UNSPSC32151703

Environmental

WEEE B2C / B2BBusiness To Business
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm) cm
