ABB 1SAP317000R0271

TF501-CMS-XC

MPN: 1SAP317000R0271
Category: AC500-XC Condition monitoring system CMS

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the ABB 1SAP317000R0271?

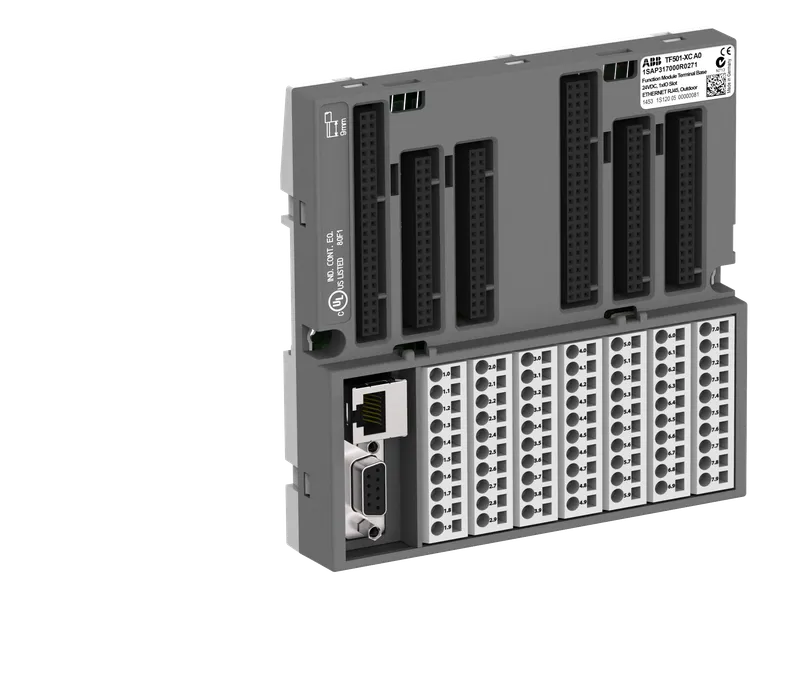

TF501-CMS-XC: AC500 Function module terminal base. Without slot for communication module. Ethernet interface. eXtreme Conditions

Specifications

Ordering

CN8	85389091
Invoice Description	Function module terminal base. Without slot for communication module. Ethernet interface (TF501-CMS-XC)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.322 kg kg
Product Net Depth / Length	28 mm mm
Product Net Height	135 mm mm
Product Net Width	135 mm mm
Gross Weight	0.383 kg kg
Package Level 1 Depth / Length	147 mm mm
Package Level 1 Height	40 mm mm
Package Level 1 Width	142 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3ADR980140
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	fb6e9a6c-3d4a-484c-852b-f7f6b164d262 Germany
RoHS Declaration	3ADR980140
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	Without slot for communication module. Ethernet interface
Input Voltage Type	DC
Degree of Protection	IP20

Additional Information

Product Main Type	TF501
Product Name	Distributed Automation PLCs

External Classifications and Standards

eClass	27-24-22-92
ETIM 8	EC000810 - PLC mounting rack
ETIM 9	EC000810 - PLC mounting rack
ETIM 10	EC000810 - PLC mounting rack
UNSPSC	32151703

Environmental

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
