ABB

ABB 1SAP314100R0270

TB541-ETH-XC

MPN: 1SAP314100R0270
Category: AC500-XC CPUs

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB 1SAP314100R0270?

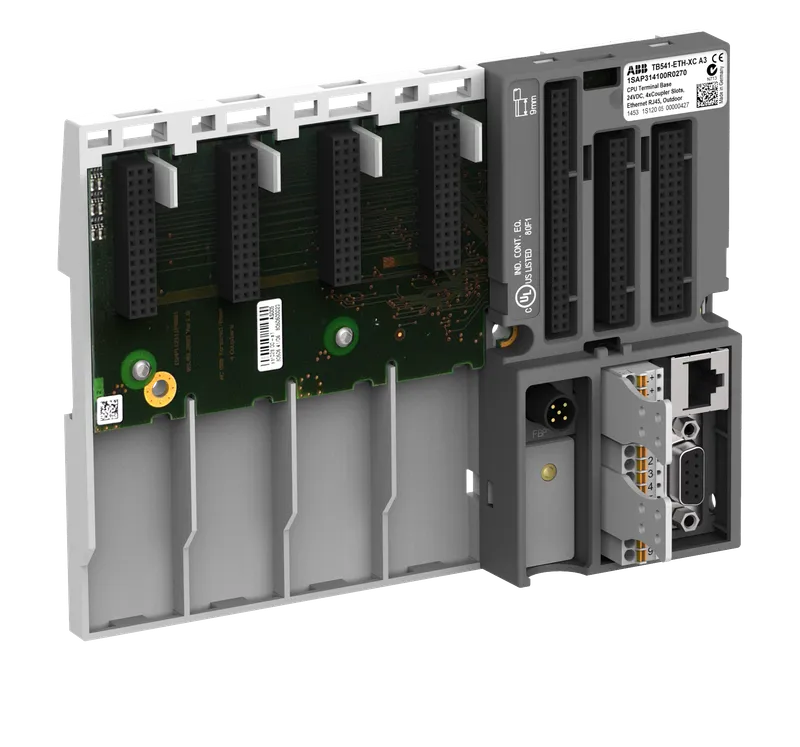

TB541-ETH-XC: AC500 Terminal base. For AC500 V2. 4 slots for communication module. Ethernet interface. 2 serial interfaces RS232/RS485. eXtreme Conditions

Specifications

Ordering

CN8	85389091
Invoice Description	Terminal base. For AC500 V2. 4 slots for communication module. Ethernet interface. 2 serial interfaces RS232/RS485 (TB541-ETH-XC)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.255 kg kg
Product Net Depth / Length	28 mm mm
Product Net Height	135 mm mm
Product Net Width	179.5 mm mm
Gross Weight	0.326 kg kg
Package Level 1 Depth / Length	147 mm mm
Package Level 1 Height	40 mm mm
Package Level 1 Width	131 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3ADR980140
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	2a3ae44e-c5b4-47ba-93a7-7a749a489a49 Germany
RoHS Declaration	3ADR980140
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	For AC500 V2. 4 slots for communication module. Ethernet interface. 2 serial interfaces RS232/RS485
Input Voltage Type	DC
Degree of Protection	IP20
Ambient Air Temperature	Operation -30...+70 °C, Storage -40...+85 °C

Additional Information

Product Main Type	TB541
Product Name	Distributed Automation PLCs

External Classifications and Standards

eClass	27-24-22-92
ETIM 8	EC000810 - PLC mounting rack
ETIM 9	EC000810 - PLC mounting rack
ETIM 10	EC000810 - PLC mounting rack
UNSPSC	32151703

Environmental

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm

1SAP314100R0270: frequently asked questions

When can 1SAP314100R0270 be shipped?

1SAP314100R0270 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1SAP314100R0270 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1SAP314100R0270 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP314100R0270, subject to availability and destination.
