ABB 1SAP286000R0001

AC500-S CPUs

MPN: 1SAP286000R0001
Category: AC500-S CPUs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the ABB 1SAP286000R0001?

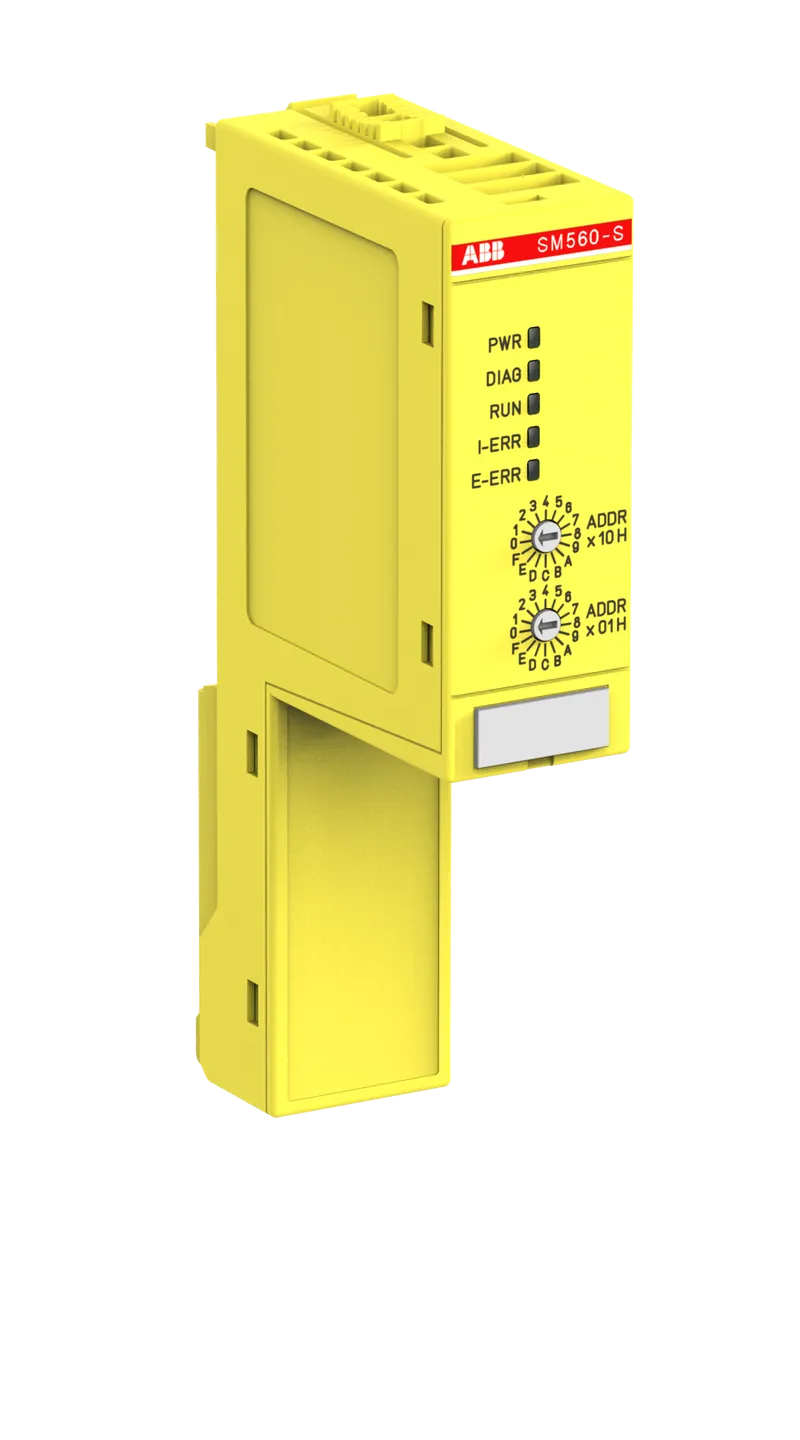

SM560-S-FD-1: AC500-S Safety processor module. Safety related module up to SIL 3 with F-Device functionality for 1 PROFIsafe network.

Specifications

Ordering

CN8	85371091
Invoice Description	Safety processor module. Safety related module up to SIL 3 with F-Device functionality for 1 PROFIsafe network (SM560-S-FD-1)
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	0.087 kg kg
Product Net Depth / Length	62 mm mm
Product Net Height	135 mm mm
Product Net Width	28 mm mm
Gross Weight	0.12 kg kg
Package Level 1 Depth / Length	147 mm mm
Package Level 1 Height	40 mm mm
Package Level 1 Width	78 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3ADR980142
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	b4fe8b49-d627-4f13-8511-b829f3e6f81d Germany
RoHS Declaration	3ADR980142
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	Safety related module up to SIL 3 with F-Device functionality for 1 PROFIsafe network
Number of Hardware Interfaces	Industrial Ethernet 0, Other 0, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0
Memory Size	2300 kB
Memory Type User Data	RAM
Controller Processing Time	0.00005 ms
Degree of Protection	IP20
Safety Integrity Level (SIL)	2

Additional Information

Product Main Type	SM560
Product Name	Distributed Automation PLCs

External Classifications and Standards

eClass	27-24-22-07
ETIM 8	EC000236 - PLC CPU-module
ETIM 9	EC000236 - PLC CPU-module
ETIM 10	EC000236 - PLC CPU-module
UNSPSC	32151802

Environmental

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
