ABB 1SAP284100R0001
S500-S I/O modules Terminal unit
- MPN
- 1SAP284100R0001
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

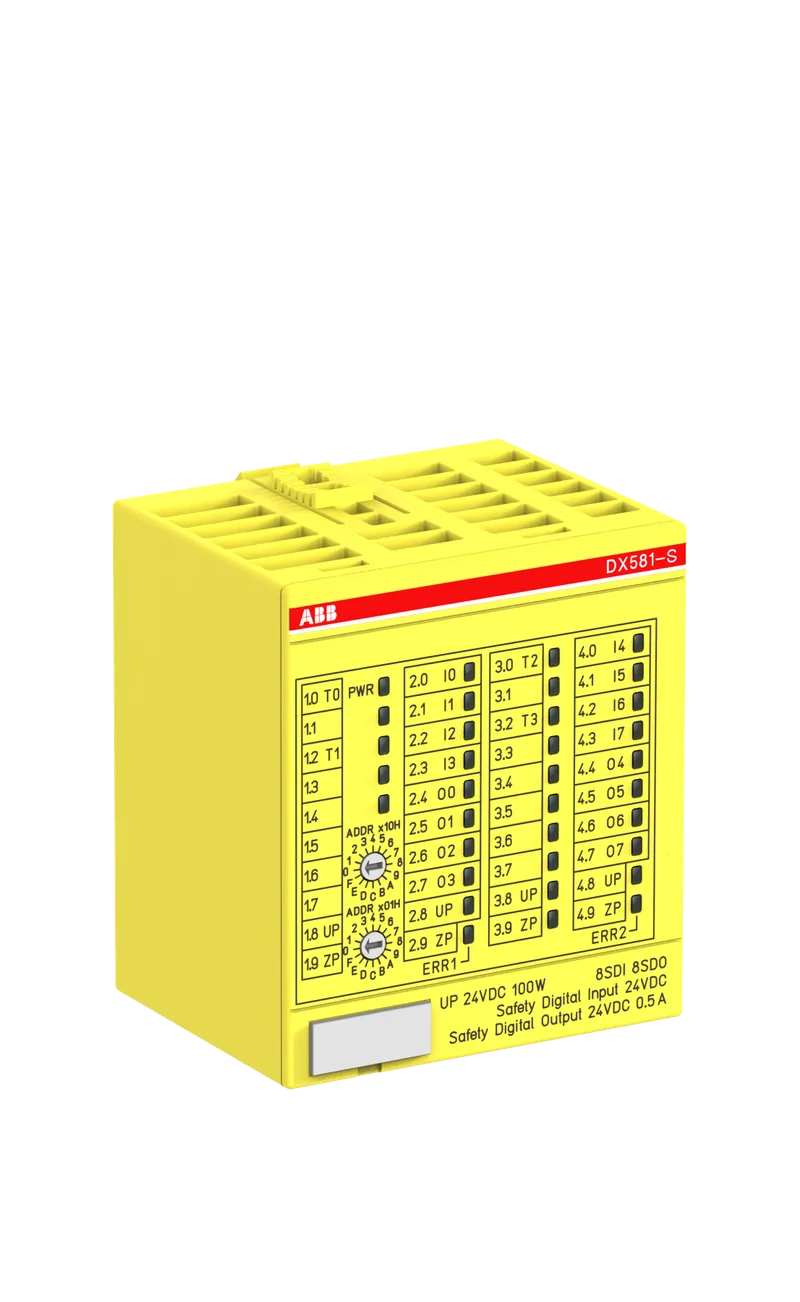

What is the ABB 1SAP284100R0001?
DX581-S: S500-S Digital input/output module. 8 SDI SIL2 / 4SDI SIL3, 24VDC. 8 SDO SIL2/3 24VDC 0.5A. 4 pulse outputs. 1-wire.
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Digital input/output module. 8 SDI SIL2 / 4SDI SIL3, 24VDC. 8 SDO SIL2/3 24VDC 0.5A. 4 pulse outputs (DX581-S) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.13 kg kg |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 76 mm mm |
| Product Net Width | 67.5 mm mm |
| Gross Weight | 0.159 kg kg |
| Package Level 1 Depth / Length | 84 mm mm |
| Package Level 1 Height | 72 mm mm |
| Package Level 1 Width | 71 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980142 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | 5916c970-096a-4753-a46e-f309240b87af Germany |
| RoHS Declaration | 3ADR980142 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | 8 SDI SIL2 / 4SDI SIL3, 24VDC. 8 SDO SIL2/3 24VDC 0.5A. 4 pulse outputs |
| Number of Digital Inputs | 8 |
| Number of Digital Outputs | 8 |
| Number of Digital Configurable I/Os | 8 |
| Input Voltage Type | DC |
| Input Current | 7 mA |
| Maximum Input Voltage | 0 ... 30 V V |
| Delay Time (τ) | 1 … 500 ms |
| Output | Transistor |
| Output Voltage Type | DC |
| Output Current | 0.5 A A |
| Output Voltage Maximum | 20.4 … 28.8 V V |
| Degree of Protection | IP20 |
| Safety Integrity Level (SIL) | 2 |
| Supply Voltage | 20.4 … 28.8 V DC V |
Additional Information
| Product Main Type | DX581 |
| Product Name | Distributed Automation I/Os |
External Classifications and Standards
| eClass | 27-24-22-02 |
| ETIM 8 | EC001419 - PLC digital I/O-module |
| ETIM 9 | EC001419 - PLC digital I/O-module |
| ETIM 10 | EC001419 - PLC digital I/O-module |
| UNSPSC | 32151802 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
