CM575-DN
MPN: 1SAP170500R0001 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Leaflets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1SAP170500R0001 be shipped?
1SAP170500R0001 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP170500R0001 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP170500R0001 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP170500R0001, subject to availability and destination.

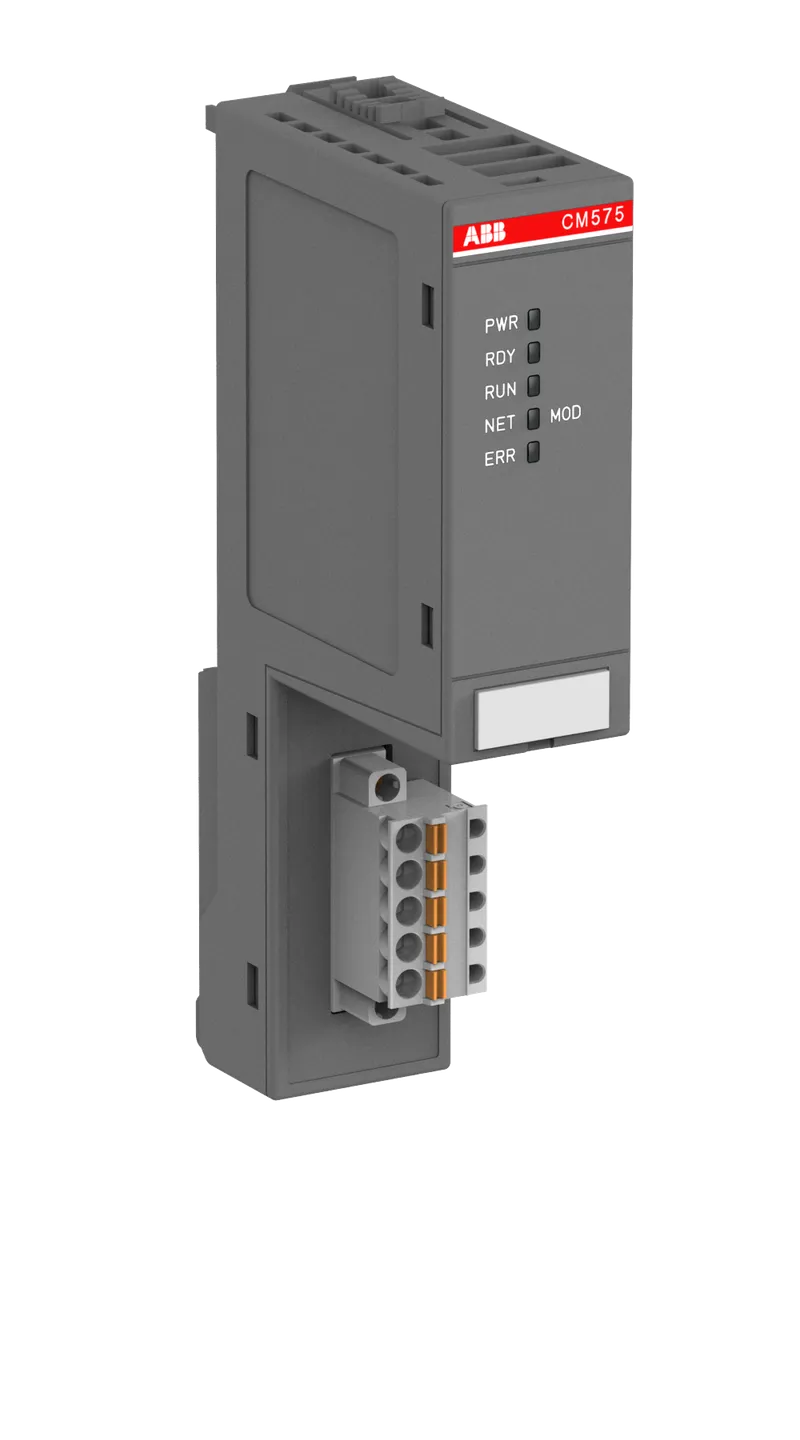

CM575-DN:AC500,Com.Module DeviceNet Master, pluggable 5 poles spring terminal
Specifications
Additional Information
| ABB Type Designation | CM575-DN |
| Ambient Air Temperature | Operation 0 ... +60 °C, Storage -40 ... +70 °C |
| Cable Cross-Section | 0.08 ... 1.5 mm² mm |
| CN8 | 85389091 |
| Communication | DeviceNet |
| Communication Interface | Terminals |
| Country or Territory of Origin | Germany |
| Customs Tariff Number | 85389091 |
| Data Sheet, Technical Information | 2CDC125002B0206 |
| Degree of Protection | IP20 |
| DESTO EGR | 05955 |
| DeviceNet | 1 |
| EAN | 4016779651462 |
| eClass | 27-24-22-08 |
| Fieldbus Interface Type | DeviceNet |
| Frame Size | Undefined |
| Gross Weight | 0.2 kg kg |
| Instructions and Manuals | 2CDC125080M0202 |
| Invoice Description | CM575-DN:AC500,Com.Module DeviceNet |
| Made To Order | No |
| Maximum Operating Altitude Permissible | 2000 m m |
| Minimum Order Quantity | 1 piece |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 mm |
| Mounting Position | Horizontal, Vertical possible with derating |
| Number of LEDs | 5 |
| Order Multiple | 1 piece |
| Power Supply | 24 V DC V |
| Product Depth | 40 mm mm |
| Product Main Type | CM575 |
| Product Name | Distributed Automation PLCs |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 135 mm mm |
| Product Net Weight | 0.12 kg kg |
| Product Net Width | 28 mm mm |
| Product Type | PLC-AC500 |
| Programming Software | PS501-PROG Control Builder Plus |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Serial Port 1 Type | DeviceNet 125/500Kbps |
| Short Description | CM575-DN:AC500,Com.Module DeviceNet |
| Stocked At (Warehouses) | Menden, Germany, Hangzhou, China, Bairro Santo Antonio, Brazil |
| Terminal Type | Spring Terminals, Pluggable |
| UNSPSC | 32151705 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
