ABB 1SAP155500R0279

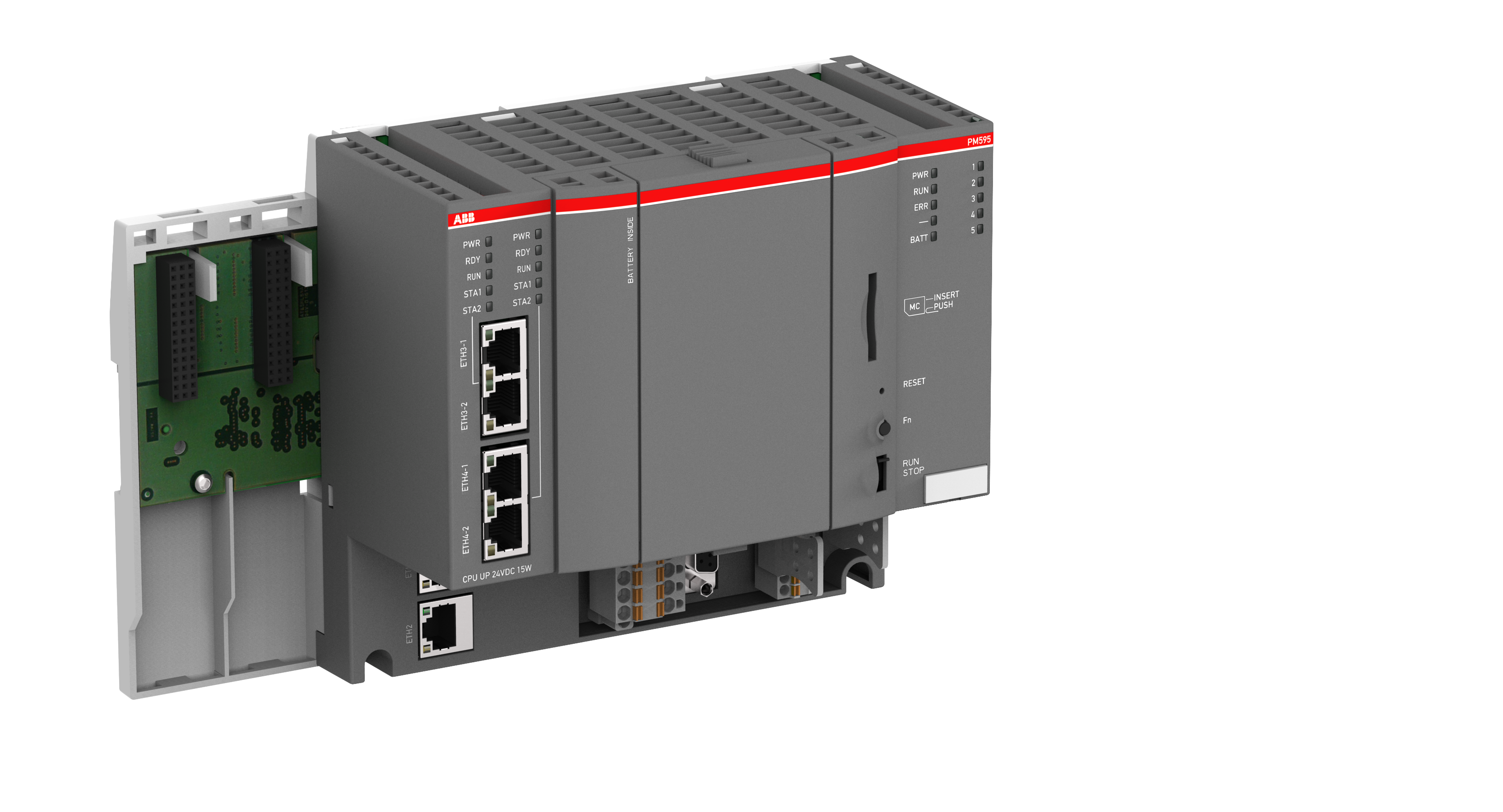

PM595-4ETH-F

MPN: 1SAP155500R0279
Category: High performance, scalable PLC designed for future automation | AC500 PM5685

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the ABB 1SAP155500R0279?

PM595-4ETH-F: AC500 Processor module. Memory: 16MB program, 16MB data. Interfaces: 2x Ethernet, 2x RS232/485, 2x Ethernet with switch. 2x coupler slots.

Specifications

Ordering

CN8	85371091
Invoice Description	Processor module. Memory: 16MB program, 16MB data. Interfaces: 2x Ethernet, 2x serial, 2x Ethernet w. switch. 2x CM slots (PM595-4ETH-F) w
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece

Dimensions

Product Net Weight	1.045 kg kg
Product Net Depth / Length	92 mm mm
Product Net Height	152 mm mm
Product Net Width	228 mm mm
Gross Weight	1.23 kg kg
Package Level 1 Depth / Length	123 mm mm
Package Level 1 Height	173 mm mm
Package Level 1 Width	273 mm mm
Package Level 1 Units	1 carton

Certificates and Declarations

Declaration of Conformity - CE	3ADR980140
REACH Date	20241206
REACH Declaration	3ADR980139
REACH Information	True - contains substances > 0.1 mass percentage
SCIP	1877dff4-e387-4145-b0b3-1849a87cdf2a Germany
RoHS Declaration	3ADR980140
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019

Technical

Function	Memory: 16MB program, 16MB data. Interfaces: 2x Ethernet, 2x RS232/485, 2x Ethernet with switch. 2x coupler slots
Number of Hardware Interfaces	Industrial Ethernet 4, Other 2, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0
Memory Size	32768 kB
Memory Type User Data	RAM
Controller Processing Time	0.0000006 ms
Degree of Protection	IP20
Rated Voltage (Ur)	24 V DC V
Supply Voltage	20.4 … 28.8 V DC V

Additional Information

Product Main Type	PM595
Product Name	Distributed Automation PLCs

External Classifications and Standards

eClass	27-24-22-07
ETIM 8	EC000236 - PLC CPU-module
ETIM 9	EC000236 - PLC CPU-module
ETIM 10	EC000236 - PLC CPU-module
UNSPSC	32151705

Environmental

WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm) cm
