ABB 1SAP150200R0271
PM592-ETH
- MPN
- 1SAP150200R0271
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

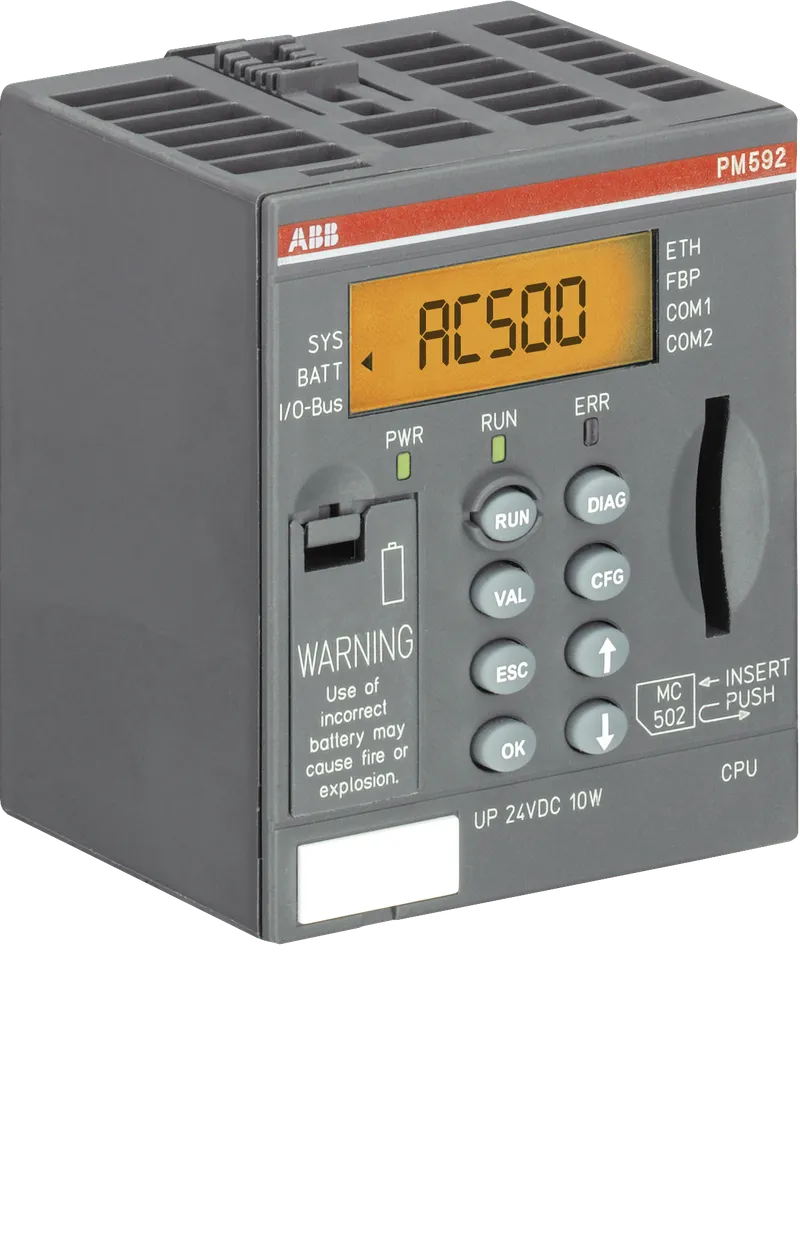

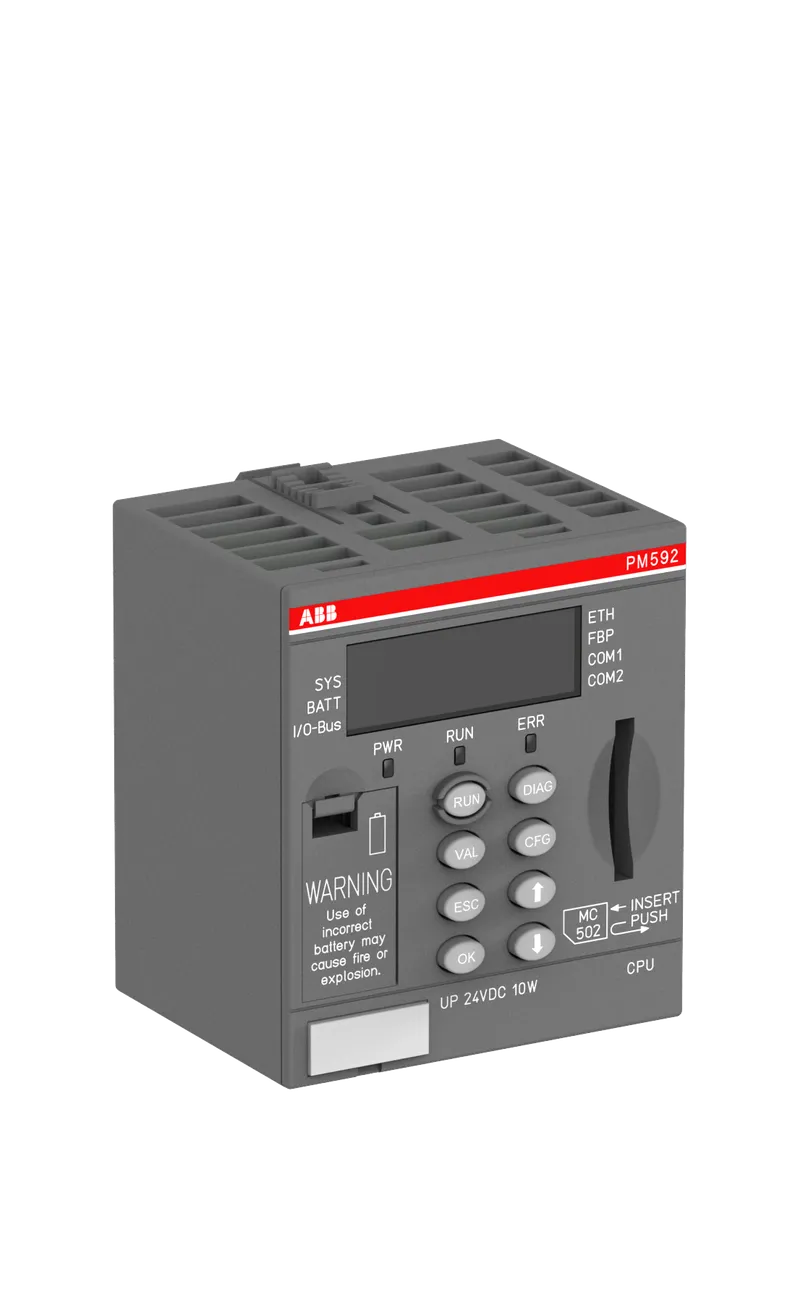

What is the ABB 1SAP150200R0271?
PM592-ETH: AC500 Processor module. Memory 4MB. Interfaces: Ethernet, 2x RS232/485, FBP. 4GB Flashdisk. Display.
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Processor module. Memory 4MB. Interfaces: Ethernet, 2x RS232/485, FBP. 4GB Flashdisk. Display (PM592-ETH) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.153 kg kg |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 76 mm mm |
| Product Net Width | 67.5 mm mm |
| Gross Weight | 0.177 kg kg |
| Package Level 1 Depth / Length | 84 mm mm |
| Package Level 1 Height | 72 mm mm |
| Package Level 1 Width | 71 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980140 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | deb0c894-534f-494e-a6f1-0534e460807e Germany |
| RoHS Declaration | 3ADR980140 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | Memory 4MB. Interfaces: Ethernet, 2x RS232/485, FBP. 4GB Flashdisk. Display |
| Display Type | LCD |
| Communication Interface | Serial/FBP/Ethernet |
| Number of Hardware Interfaces | Industrial Ethernet 1, Other 2, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0 |
| Memory Size | 9728 kB |
| Memory Size User Data | 5632 2 kB |
| Memory Size User Program | 4096 2 kB |
| Memory Type User Data | RAM |
| Controller Processing Time | 0.000002 ms |
| Degree of Protection | IP20 |
| Rated Voltage (Ur) | 24 V DC V |
| Supply Voltage | 20.4 … 28.8 V DC V |
| Ambient Air Temperature | Operation 0 ... +60 °C, Storage -40 ... +70 °C |
Additional Information
| Product Main Type | PM592 |
| Product Name | Distributed Automation PLCs |
External Classifications and Standards
| eClass | 27-24-22-07 |
| ETIM 8 | EC000236 - PLC CPU-module |
| ETIM 9 | EC000236 - PLC CPU-module |
| ETIM 10 | EC000236 - PLC CPU-module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
1SAP150200R0271: frequently asked questions
When can 1SAP150200R0271 be shipped?
1SAP150200R0271 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP150200R0271 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP150200R0271 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP150200R0271, subject to availability and destination.
