ABB 1SAP150100R0277
PM591-2ETH
- MPN
- 1SAP150100R0277
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB 1SAP150100R0277?

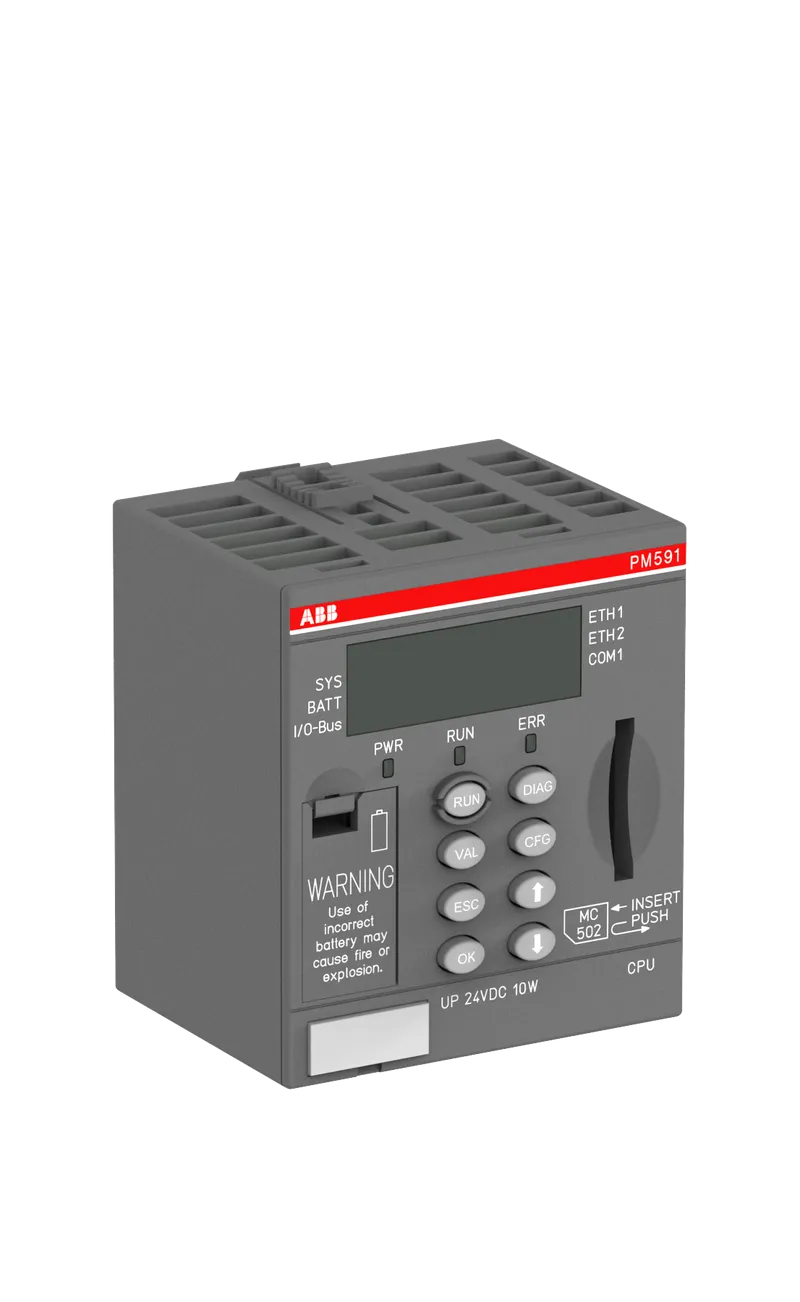

PM591-2ETH: AC500 Processor module. Memory 4MB. Interfaces: 2x Ethernet, RS232/485. Display.
Specifications
Ordering
| CN8 | 85389091 |
| Invoice Description | Processor module. Memory 4MB. Interfaces: 2x Ethernet, RS232/485. Display (PM591-2ETH) |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Selling Unit of Measure | piece |
Dimensions
| Product Net Weight | 0.137 kg kg |
| Product Net Depth / Length | 62 mm mm |
| Product Net Height | 76 mm mm |
| Product Net Width | 67.5 mm mm |
| Gross Weight | 0.161 kg kg |
| Package Level 1 Depth / Length | 84 mm mm |
| Package Level 1 Height | 72 mm mm |
| Package Level 1 Width | 71 mm mm |
| Package Level 1 Units | 1 carton |
Certificates and Declarations
| Declaration of Conformity - CE | 3ADR980140 |
| REACH Date | 20241206 |
| REACH Declaration | 3ADR980139 |
| REACH Information | True - contains substances > 0.1 mass percentage |
| SCIP | 33127340-6b39-44ac-a7c5-a3dcb2794d1b Germany |
| RoHS Declaration | 3ADR980140 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
Technical
| Function | Memory 4MB. Interfaces: 2x Ethernet, RS232/485. Display |
| Number of Hardware Interfaces | Industrial Ethernet 1, Other 1, Parallel 0, RS-232 0, RS-422 0, RS-485 0, Serial TTY 0, USB 0, Wireless 0 |
| Memory Size | 9728 kB |
| Memory Type User Data | RAM |
| Controller Processing Time | 0.000002 ms |
| Degree of Protection | IP20 |
| Rated Voltage (Ur) | 24 V DC V |
| Supply Voltage | 20.4 … 28.8 V DC V |
Additional Information
| Product Main Type | PM591 |
| Product Name | Distributed Automation PLCs |
External Classifications and Standards
| eClass | 27-24-22-07 |
| ETIM 8 | EC000236 - PLC CPU-module |
| ETIM 9 | EC000236 - PLC CPU-module |
| ETIM 10 | EC000236 - PLC CPU-module |
| UNSPSC | 32151705 |
Environmental
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
1SAP150100R0277: frequently asked questions
When can 1SAP150100R0277 be shipped?
1SAP150100R0277 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAP150100R0277 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAP150100R0277 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAP150100R0277, subject to availability and destination.
