ABB 1SAL100545R9906 – MP0AAE2 Surge Suppressor R/C 72-240V 50/60Hz
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Mini Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.006 kg |
| UPC / EAN | 4013614550522 |
Shipping & availability
When can 1SAL100545R9906 be shipped?
1SAL100545R9906 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAL100545R9906 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAL100545R9906 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAL100545R9906, subject to availability and destination.
The MP0AAE2 is a surge suppressor for contactor coils. Designed to reduce the maximum overvoltage peak value and to limit or even completely eliminate the high pre-damping voltage frequencies for a rated control circuit voltage between 72 ... 240 V. The surge suppressor is simply plugged onto the front of all MC1, MC2 and MCR AC operated variants.
Specifications
General
| Order code (ABB product ID) | 1SAL100545R9906 |
| Type | MP0AAE2 |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363010 |
Dimensions
| Product Net Width | 9 mm |
| Product Net Depth / Length | 31 mm |
| Product Net Height | 18 mm |
| Product Net Weight | 0.006 kg |
Technical
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1 |
| Rated Frequency (f) | Control Circuit 50 Hz, Control Circuit 60 Hz |
| Rated Insulation Voltage (U<sub>i</sub>) | 750 V |
| Rated Control Circuit Voltage (U<sub>c</sub>) | 72 ... 240 V AC |
| Degree of Protection | IP20 |
| Terminal Type | No Terminals |
| Suitable For | MC1, MC2, MCR AC operated |
| Suitable for Product Class | Mini Contactors |
| Product Name | Surge Suppressor |
Environmental
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -55 ... +80 °C |
| Maximum Operating Altitude Permissible | 3000 m |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards
| Object Classification Code | F |
| ETIM 7 | EC000197 - Surge voltage protection |
| ETIM 8 | EC000683 - Surge protection module |
| ETIM 9 | EC000683 - Surge protection module |
| eClass | V11.0 : 27371010 |
| UNSPSC | 39121610 |
| E-Number (Finland) | 3709468 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (2CDC102078M9901) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
More ABB parts
Available on requestMP0DAE4 Surge Suppressor Varistor 24-48V AC/DC

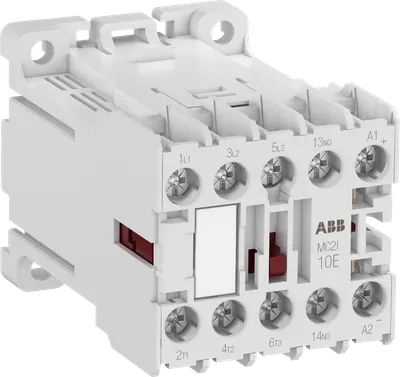

Available on requestMini Contactor MC2 24 V DC - 3 NO - 0 NC - Screw Terminals

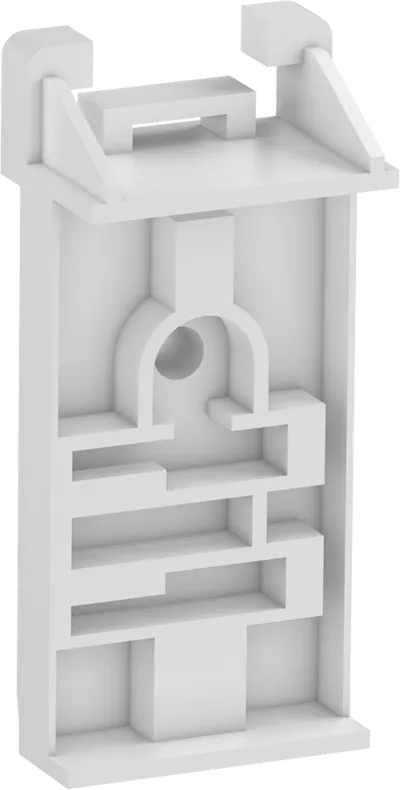

Available on requestMVB0R DIN-rail adaptor for timerAvailable on requestMP0AAE1 Surge Suppressor R/C 12-60V 50/60HzAvailable on requestMP0CAE3 Surge Suppressor Diode 6-240VDC

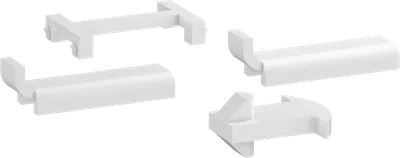

Available on requestMMH0 Mechanical InterlockAvailable on requestMini Contactor MC2 24 V DC - 3 NO - 0 NC - Screw Terminals
