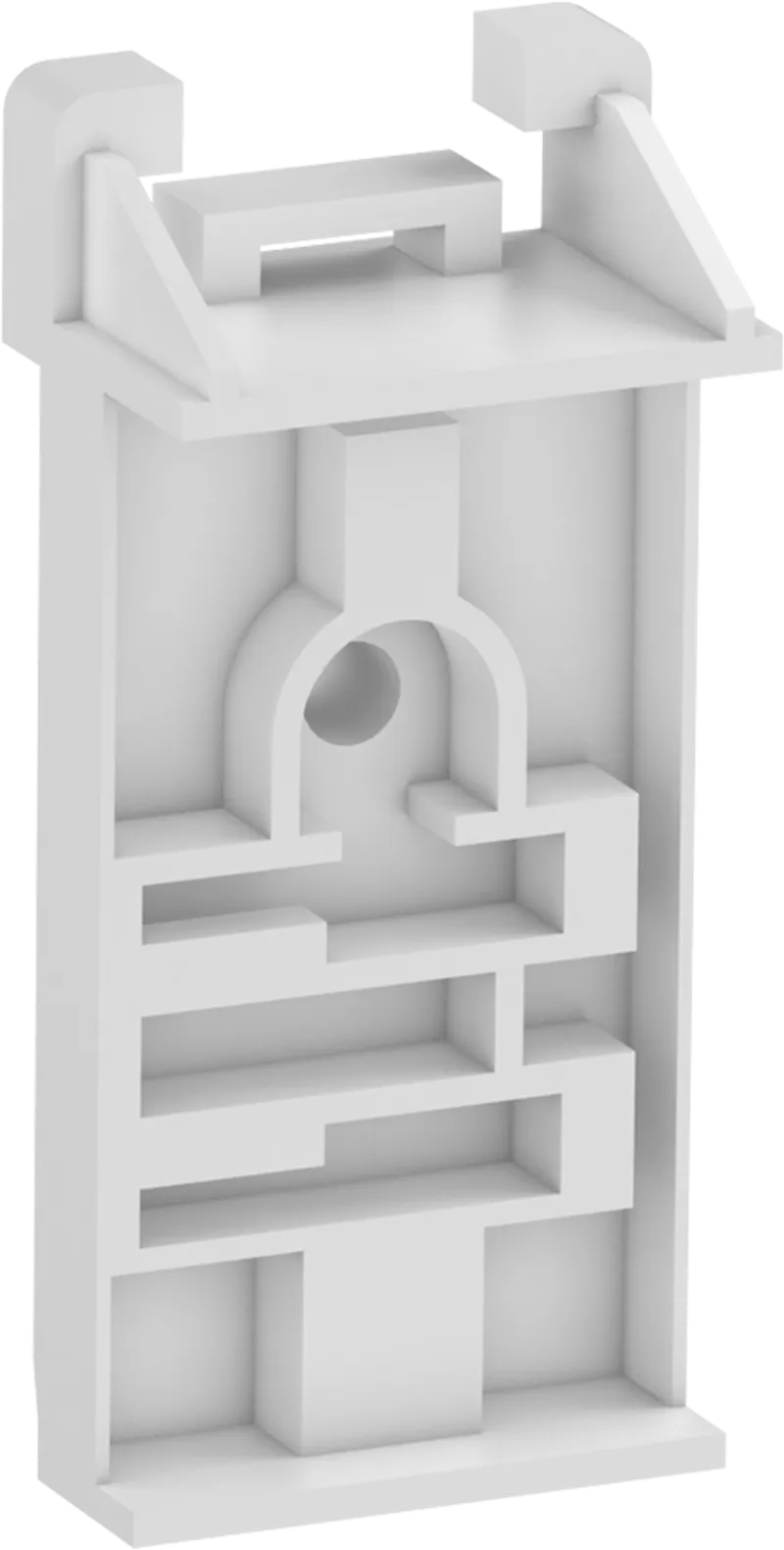

ABB 1SAL100543R9906 – MVB0R DIN-rail adaptor for timer
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | ABB Mini Contactors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 0.003 kg |
| UPC / EAN | 4013614550607 |
Shipping & availability
When can 1SAL100543R9906 be shipped?
1SAL100543R9906 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1SAL100543R9906 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1SAL100543R9906 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1SAL100543R9906, subject to availability and destination.
The MACN431AT is an auxiliary contact for front mounting with 3NO/1NC contacts and screw terminals. Auxiliary contacts are used for the operation of auxiliary circuits and control circuits.
Specifications
General
| Order code (ABB product ID) | 1SAL100543R9906 |
| Type | MVB0R |
| Lifecycle | Active (current ABB product) |
Ordering
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 39269097 |
Dimensions
| Product Net Width | 46 mm |
| Product Net Depth / Length | 20 mm |
| Product Net Height | 15 mm |
| Product Net Weight | 0.003 kg |
Technical
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-1, UL 60947-4-1 |
| Terminal Type | No Terminals |
| Suitable For | MC1, MC2, MCR, MREBC |
| Suitable for Product Class | Timer |
| Product Name | Adapter |
Material Compliance
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards
| Object Classification Code | U |
| ETIM 7 | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| ETIM 9 | EC002498 - Accessories/spare parts for low-voltage switch technology |
| eClass | V11.0 : 27371392 |
| UNSPSC | 39120000 |
| E-Number (Finland) | 3709744 |
Downloads & documentation
Official documents from ABB, downloaded directly from the manufacturer.
Data sheets & manuals
| Data Sheet, Technical Information (1SBC100214C0202) | |
| Instructions and Manuals (2CDC102077M9901) |
CAD & dimension drawings
| CAD Dimensional Drawing (2CDC001079B0201) |
