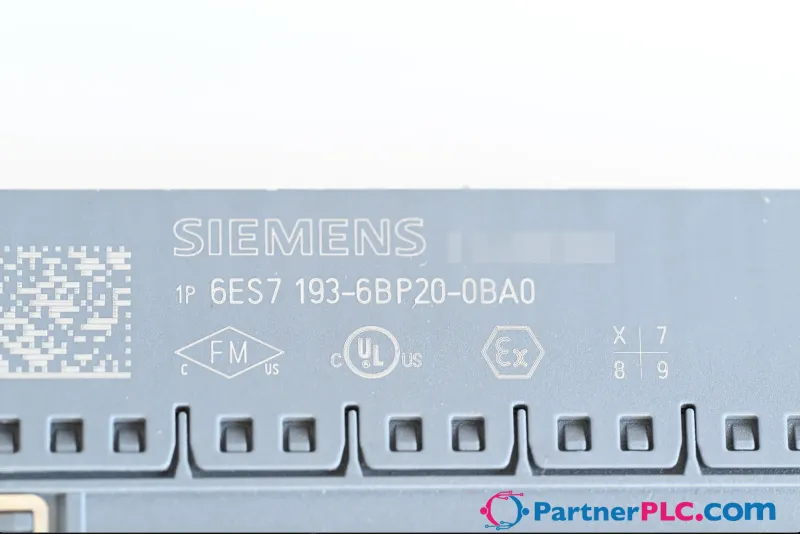

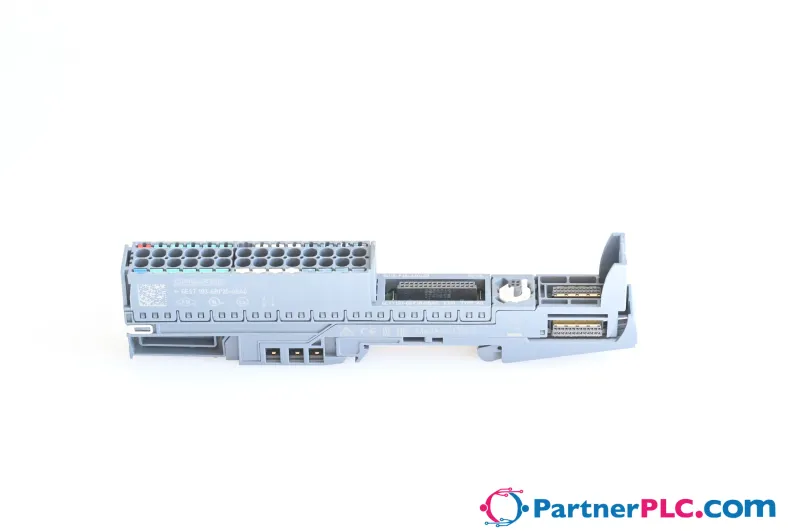

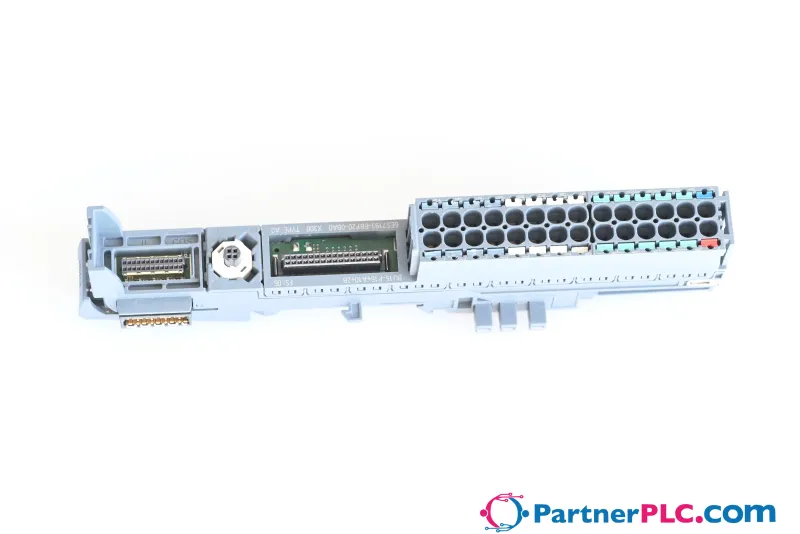

Siemens 6ES7 193-6BP20-0BA0

Terminal Blocks & Connector

MPN: 6ES7 193-6BP20-0BA0
Category: Terminal Blocks & Connectors

€12.72excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

3-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7 193-6BP20-0BA0?

Terminal Blocks & Connector

Specifications

General information

Product type designation	BU type A0
HW functional status	From FS06

Supply voltage

Rated value (DC)	24 V
external protection for power supply lines	Yes; 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic

Current carrying capacity

For P1 and P2 bus, max.	10 A
For AUX bus, max.	10 A
For process terminals, max.	2 A

Hardware configuration

Formation of potential groups — New potential group	No
Formation of potential groups — Potential group continued from the left	Yes
Slots — Number of slots	1; Type A0

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	1.09 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	1.08 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	0 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.0045 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-30 °C
Ambient temperature during operation — horizontal installation, max.	60 °C
Ambient temperature during operation — vertical installation, min.	-30 °C
Ambient temperature during operation — vertical installation, max.	50 °C
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m; Restrictions for installation altitudes > 2 000 m, see manual
Absolute humidity — dew point, min.	-60 °C; suitable for dry room applications

Accessories

Color coding labels — for process terminals	CC00 to CC09
Color coding labels — for AUX terminals	CC71 to CC73
Color coding labels — for add-on terminals	does not exist

Connection method

Terminals — Terminal type	Push-in terminal
Terminals — system-integrated shield connection	Yes; Optional
Terminals — Conductor cross-section, min.	0.14 mm²; AWG 26
Terminals — Conductor cross-section, max.	2.5 mm²; AWG 14
Terminals — Number of process terminals to I/O module	16
Terminals — Number of terminals to AUX bus	10
Terminals — Number of add-on terminals	0
Terminals — Number of terminals with connection to P1 and P2 bus	2

Dimensions

Width	15 mm
Height	141 mm
Depth	35 mm

Weights

Weight, approx.

50 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7193-6BP20-0BA0PDF

6ES7 193-6BP20-0BA0: frequently asked questions

When can 6ES7 193-6BP20-0BA0 be shipped?

6ES7 193-6BP20-0BA0 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 6ES7 193-6BP20-0BA0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 6ES7 193-6BP20-0BA0.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7 193-6BP20-0BA0, subject to availability and destination.
