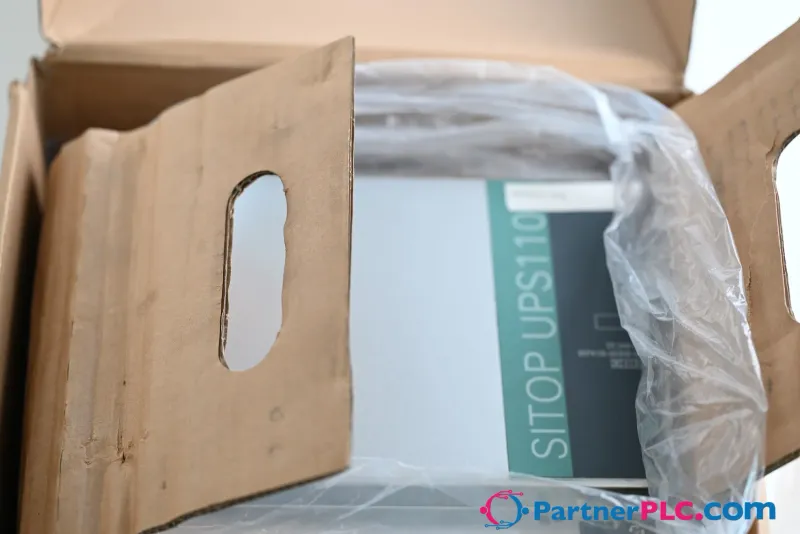

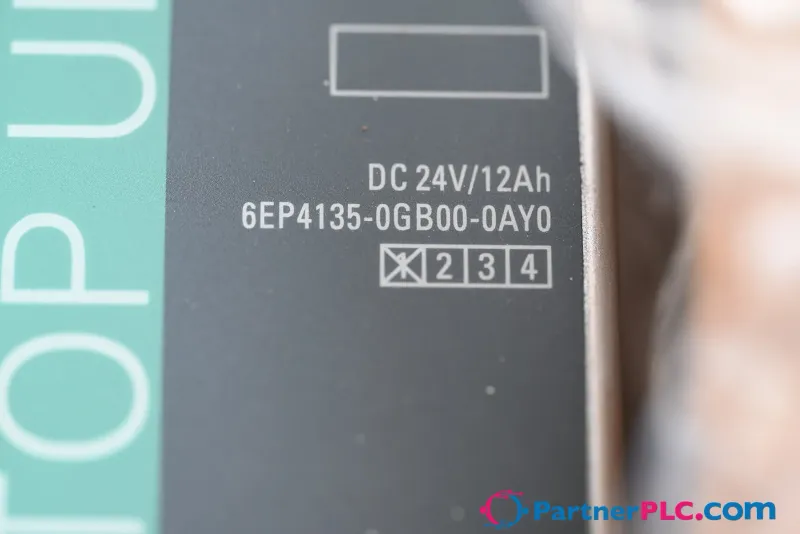

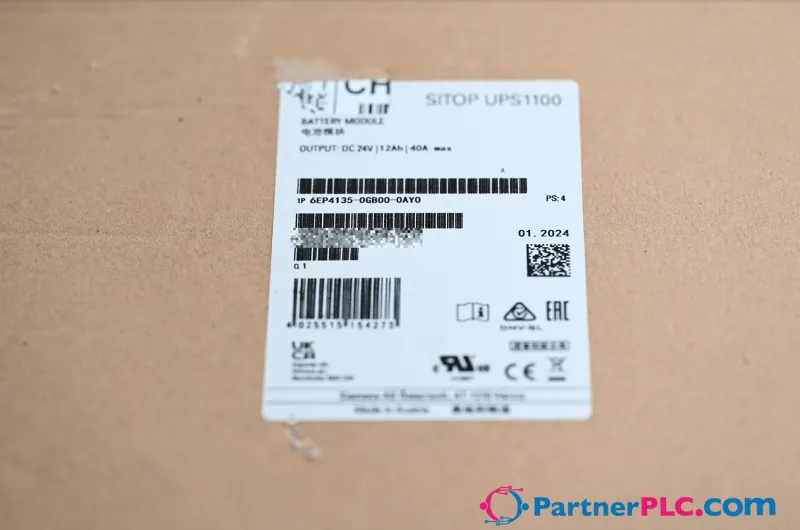

Siemens 6EP4135-0GB00-0AY0

MPN: 6EP4135-0GB00-0AY0
Category: SITOP UPS1100 battery modules

€846.94excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 6EP4135-0GB00-0AY0?

Siemens 6EP4135-0GB00-0AY0

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP4135-0GB00-0AY0
product brand name	SITOP UPS1100
product designation	Battery module 12 Ah
type of battery	maintenance-free lead-acid batteries
product version	Extension module/battery module

electrical data

end-of-charge voltage at DC — at -10 °C recommended	28 V
end-of-charge voltage at DC — at 0 °C recommended	28 V
end-of-charge voltage at DC — at 10 °C recommended	27.8 V
end-of-charge voltage at DC — at 20 °C recommended	27.3 V
end-of-charge voltage at DC — at 30 °C recommended	26.8 V
end-of-charge voltage at DC — at 40 °C recommended	26.6 V
end-of-charge voltage at DC — at 50 °C recommended	26.3 V

output

battery capacity	12 A·h
output current rated value	40 A
output current in buffering mode maximum	40 A
peak current	120 A; for 30 ms
charging current maximum	3 A
output voltage at DC rated value	24 V

interfaces

communication function

Yes

protection and monitoring

design of short-circuit protection	Battery fuse 2x 25 A/32 V (solid-state circuitry blade-type fuse + support)
design of the overload protection	Valve control
display version for normal operation	LED green: Battery OK; LED flashing green: Error or warning; OFF: No communication

safety

operating resource protection class	Class III
protection class IP	IP20

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cURus-Recognized (UL 1778, CSA C22.2 No. 107.1), File E219627
certificate of suitability — EAC approval	Yes

standards, specifications, approvals hazardous environments

certificate of suitability — ATEX

standards, specifications, approvals marine classification

shipbuilding approval	Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	Yes
Marine classification association — Det Norske Veritas (DNV)	Yes

standards, specifications, approvals Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	38.726 kg
global warming potential [CO2 eq] — during manufacturing	20.967 kg
global warming potential [CO2 eq] — during operation	14 kg
global warming potential [CO2 eq] — after end of life	1.105 kg

ambient conditions

ambient condition	For storage, mounting and operation of lead-acid batteries, the relevant DIN/VDE regulations or country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. You must ensure that the battery site is sufficiently ventilated. Possible sources of ignition must be at least 50 cm away.
ambient temperature — during operation	-15 ... +50 °C
ambient temperature — during transport	-20 ... +50 °C
ambient temperature — during storage	-20 ... +40 °C
relative temporary capacity loss at 20 °C in a month typical	3 %

service life

service life of energy storage — typical	capacity falls to 80 % of original capacity (according to EUROBAT)
service life of energy storage — at 20 °C typical	4 a
service life of energy storage — at 30 °C typical	2 a
service life of energy storage — at 40 °C typical	1 a
service life of energy storage — at 50 °C typical	0.5 a
note	Along with the storage and operating temperature, other factors such as the duration of the storage period and the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, and within the temperature range 0 to +20 °C.

connection method

type of electrical connection	screw terminal
for UPS module	1 screw terminal each for 0.5 ... 16 mm² for + BAT and - BAT
for control circuit and status message	1 screw terminal each for 0.14 ... 4 mm²

mechanical data

width × height × depth of the enclosure	253 × 186 × 110 mm
installation width × mounting height	253 mm × 201 mm
required spacing — top	15 mm
required spacing — bottom	0 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	can be screwed onto flat surface (keyhole mounting for hooking in to M4 screws)
DIN-rail mounting	No
S7 rail mounting	No
wall mounting	Yes
net weight	9.8 kg
number of cells	12

accessories

product component included

Accessories pack with solid-state circuitry fuse 25 A

further information internet links

internet link — to website: Industry Online Support

https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6EP4135-0GB00-0AY0PDF

6EP4135-0GB00-0AY0: frequently asked questions

Can I still buy the 6EP4135-0GB00-0AY0 now that it is discontinued?

Yes. Siemens has discontinued the 6EP4135-0GB00-0AY0, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 6EP4135-0GB00-0AY0 be shipped?

6EP4135-0GB00-0AY0 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 6EP4135-0GB00-0AY0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 6EP4135-0GB00-0AY0.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6EP4135-0GB00-0AY0, subject to availability and destination.
