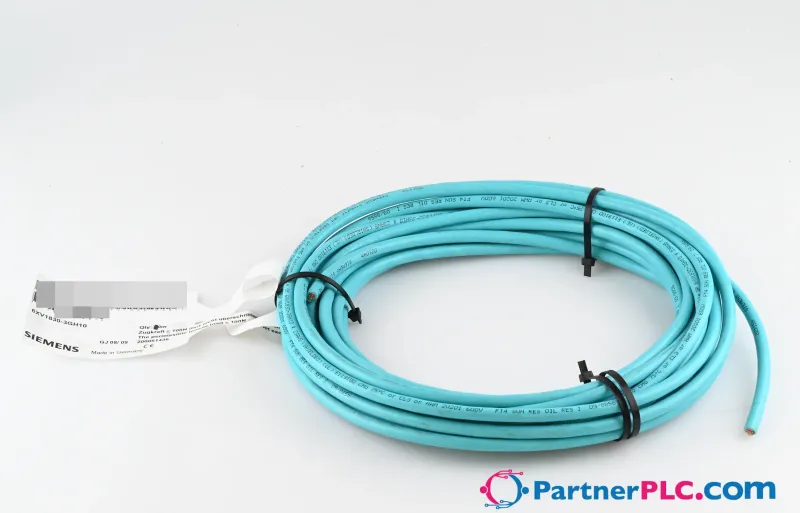

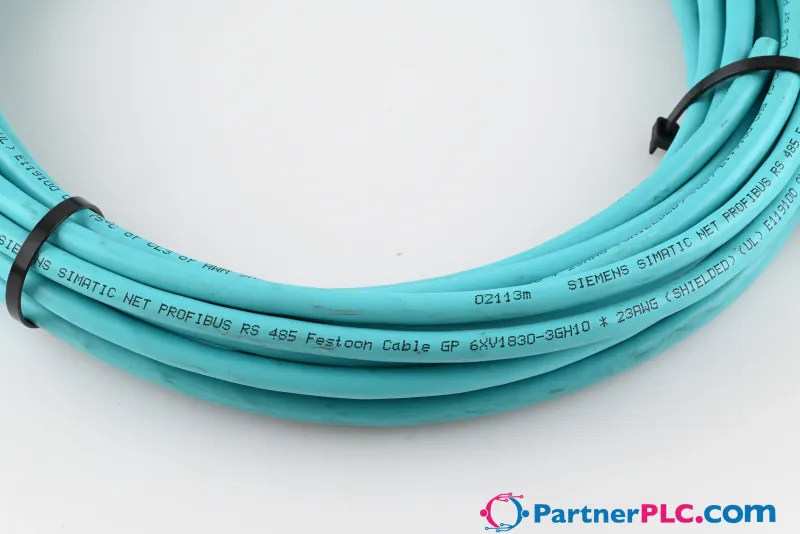

Siemens 6XV1830-3GH10
Terminal Blocks & Connector
- MPN
- 6XV1830-3GH10
- Category
- Terminal Blocks & Connectors
€68.90excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 6XV1830-3GH10?
Terminal Blocks & Connector
Specifications
electrical data
| Technical Product Detail Page | https://i.siemens.com/1P6XV1830-3GH10 |
| attenuation factor per length — at 9.6 kHz / maximum | 0.003 dB/m |
| attenuation factor per length — at 38.4 kHz / maximum | 0.004 dB/m |
| attenuation factor per length — at 4 MHz / maximum | 0.025 dB/m |
| attenuation factor per length — at 16 MHz / maximum | 0.049 dB/m |
| impedance — rated value | 150 Ω |
| impedance — at 9.6 kHz | 270 Ω |
| impedance — at 38.4 kHz | 185 Ω |
| impedance — at 3 MHz … 20 MHz | 150 Ω |
| relative symmetrical tolerance — of the characteristic impedance at 9.6 kHz | 10 % |
| relative symmetrical tolerance — of the characteristic impedance at 38.4 kHz | 10 % |
| relative symmetrical tolerance — of the characteristic impedance at 3 MHz … 20 MHz | 10 % |
| loop resistance per length / maximum | 133 mΩ/m |
| shield resistance per length / maximum | 19 Ω/km |
| insulation resistance coefficient | 16000 GΩ·m |
| capacity per length / at 1 kHz | 28 pF/m |
| operating voltage — RMS value | 80 V |
mechanical data
| number of electrical cores | 2 |
| design of the shield | Overlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires |
| type of electrical connection / FastConnect | No |
| outer diameter — of inner conductor | 0.67 mm |
| outer diameter — of the wire insulation | 2.56 mm |
| outer diameter — of the inner sheath of the cable | 5.8 mm |
| outer diameter — of cable sheath | 8 mm |
| symmetrical tolerance of the outer diameter / of cable sheath | 0.3 mm |
| material — of the wire insulation | polyethylene (PE) |
| material — of cable sheath | PVC |
| color — of the insulation of data wires | red/green |
| color — of cable sheath | petrol |
| bending radius — with single bend / minimum permissible | 30 mm |
| bending radius — with continuous bending | 70 mm |
| tensile load / maximum | 80 N |
| weight per length | 64 kg/km |
ambient conditions
| ambient temperature — during operation | -40 ... +80 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| ambient temperature — during transport | -40 ... +80 °C |
| ambient temperature — during installation | -40 ... +80 °C |
| ambient temperature — note | electrical properties measured at 20 °C |
| fire behavior | flame resistant according to IEC 60332-3-24 (Category C) |
| class of burning behaviour / according to EN 13501-6 | Eca |
| chemical resistance — to mineral oil | conditional resistance |
| chemical resistance — to grease | Conditional resistance |
| chemical resistance — to water | conditional resistance |
| radiological resistance / to UV radiation | resistant |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | Yes; CMG / PLCT / Sun Res / Oil Res |
| UL/ETL style / 600 V Rating | Yes |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — CE marking | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Germanische Lloyd (GL) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
| Marine classification association — Nippon Kaiji Kyokai (NK) | No |
| Marine classification association — Polski Rejestr Statkow (PRS) | No |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
