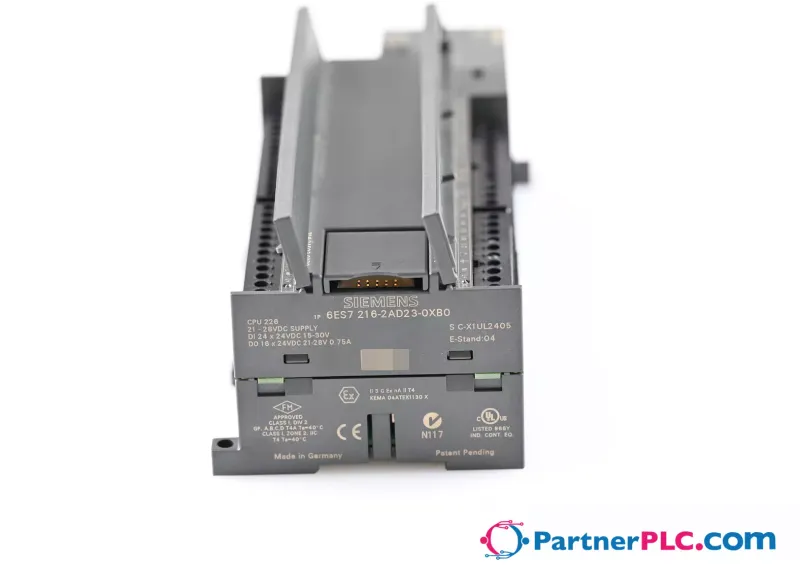

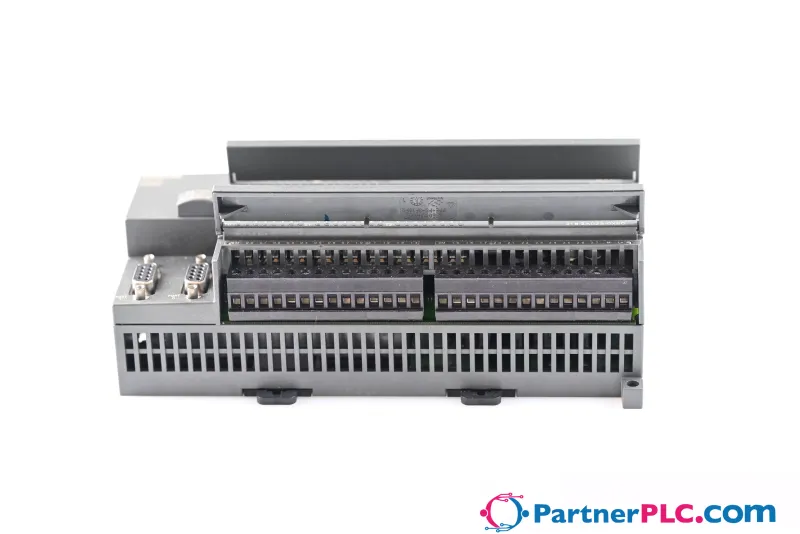

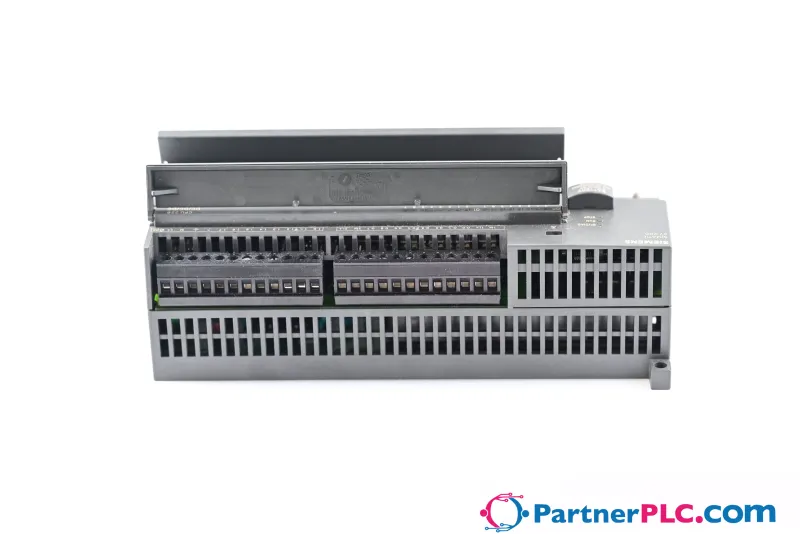

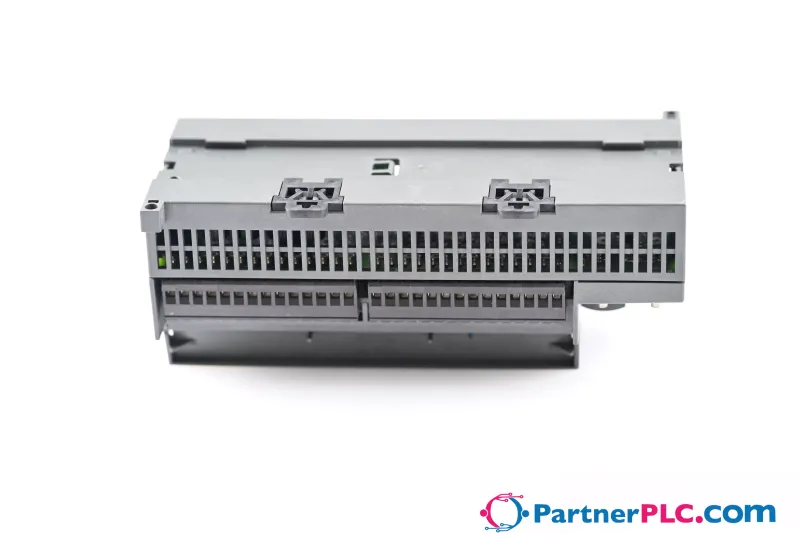

Siemens 6ES7 216-2AD23-OXBO

CPU & Controller

MPN
6ES7 216-2AD23-OXBO
€153.70excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7 216-2AD23-OXBO?

CPU & Controller

Specifications

Supply voltage

Technical Product Detail Pagehttps://i.siemens.com/1P6ES7216-2AD23-0XB0
Rated value (DC) — 24 V DCYes
Rated value (DC) — Rated value (DC)24 V
Rated value (DC) — permissible range, lower limit (DC)20.4 V
Rated value (DC) — permissible range, upper limit (DC)28.8 V

Input current

Inrush current, max.10 A; at 28.8 V
from supply voltage L+, max.1 050 mA; 150 mA to 1 050 mA output current for expansion modules (5 V DC) 1 000 mA

Encoder supply

24 VYes; permissible range: 15.4 to 28.8 V
Short-circuit protectionYes; electronic at 400 mA
Output current, max.400 mA

Power loss

Power loss, typ.11 W

Storage

Number of memory modules (optional)1; pluggable memory module, content identical with integral EEPROM; can additionally store recipes, data logs and other files
integrated (for program)24 kbyte; 16 KB with active run-time edit
integrated (for data)10 kbyte
presentYes; Program: Entire program maintenance-free on integral EEPROM, programmable via CPU; data: Entire DB 1 loaded from PG/PC maintenance-free on integral EEPROM, current values of DB 1 in RAM, retentive memory bits, timers, counters, etc. maintenance-free via high-performance capacitor; optional battery for long-term buffering

Battery

Backup time, max.100 h; (min. 70 h at 40 °C); 200 days (typ.) with optional battery module

CPU processing times

for bit operations, max.0.22 µs

Counters, timers and their retentivity

Number256
— adjustableYes; via high-performance capacitor or battery
— lower limit0
— upper limit32 767
Number256
— adjustableYes; via high-performance capacitor or battery
— lower limit1 ms
— upper limit54 min; 4 timers: 1 ms to 30 s; 16 timers: 10 ms to 5 min; 236 timers: 100 ms to 54 min

Data areas and their retentivity

Size, max.32 byte
Retentivity availableYes; M 0.0 to M 31.7
of which retentive with battery0 to 255, via high-performance capacitor or battery, adjustable
of which retentive without battery0 to 112 in EEPROM, adjustable

Hardware configuration

Number of expansion units, max.7; Only expansion modules of the S7-22x series can be used. Due to the limited output current, the use of expansion modules may be limited.
connectable programming devices/PCsSIMATIC PG/PC, standard PC
Analog inputs/outputs, max.35; max. 28 inputs and 7 outputs (EM) or max. 0 inputs and 14 outputs (EM)
Digital inputs/outputs, max.148; max. 128 inputs and 120 outputs (CPU+EM)
AS-Interface inputs/outputs, max.62; AS-Interface A/B slaves (CP 243-2)

Digital inputs

Number of digital inputs24
Sourcing/sinking inputYes; optionally, per group
Rated value (DC)24 V
for signal "0"0 to 5 V
for signal "1"min. 15 V
for signal "1", typ.2.5 mA
— parameterizableYes; all
— at "0" to "1", min.0.2 ms
— at "0" to "1", max.12.8 ms
— ParameterizableYes; I 0.0 to I 0.3
— ParameterizableYes; (E 0.0 to E 1.5) 30 kHz
shielded, max.500 m; Standard input: 500 m, high-speed counters: 50 m
unshielded, max.300 m; not for high-speed signals

Digital outputs

Number of digital outputs16; Transistor
Short-circuit protectionNo; to be provided externally
Limitation of inductive shutdown voltage to1 W
with resistive load, max.0.75 A
on lamp load, max.5 W
for signal "1", min.20 V DC
for signal "1" rated value750 mA
for signal "0" residual current, max.10 µA
"0" to "1", max.15 µs; of the standard outputs, max. (Q 0.2 to Q 1.1) 2 µs; of the pulse outputs, max. (Q 0.0 to Q 0.1) 2 µs
"1" to "0", max.130 µs; of the standard outputs, max. (Q 0.2 to Q 1.1) 10 µs; of the pulse outputs, max. (Q 0.0 to Q 0.1) 10 µs
for upratingYes
of the pulse outputs, with resistive load, max.20 kHz; Q0.0 to Q0.1
— up to 40 °C, max.6 A
— up to 55 °C, max.6 A
Number of relay outputs0
shielded, max.500 m
unshielded, max.150 m

Analog inputs

Number of analog potentiometers2; Analog potentiometer; resolution 8 bit

Encoder

2-wire sensorYes
— permissible quiescent current (2-wire sensor), max.1 mA

1. Interface

Interface typeIntegrated RS 485 interface
MPIYes; As MPI slave for data exchange with MPI masters (S7-300/S7-400 CPUs, OPs, TDs, Push Button Panels); S7-200-internal CPU/CPU communication is possible in the MPI network with restrictions; transmission rates: 19.2/187.5 kbit/s
PPIYes; with PPI protocol for program functions, HMI functions (TD 200, OP), S7-200-internal CPU/CPU communication ; transmission rates 9.6/19.2/187.5 kbit/s
serial data exchangeYes; As freely programmable interface with interrupt facility for serial data exchange with third-party devices with ASCII protocol transfer rates: 1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 / 57.6 / 115.2 kbps; the PC/PPI cable can also be used as RS 232/RS 485 converter
Transmission rate, min.19.2 kbit/s
Transmission rate, max.187.5 kbit/s

2. Interface

Interface typeIntegrated RS 485 interface
MPIYes; As MPI slave for data exchange with MPI masters (S7-300/S7-400 CPUs, OPs, TDs, Push Button Panels); S7-200-internal CPU/CPU communication is possible in the MPI network with restrictions; transmission rates: 19.2/187.5 kbit/s
PPIYes; with PPI protocol for program functions, HMI functions (TD 200, OP), S7-200-internal CPU/CPU communication ; transmission rates 9.6/19.2/187.5 kbit/s
serial data exchangeYes; As freely programmable interface with interrupt facility for serial data exchange with third-party devices with ASCII protocol transfer rates: 1.2 / 2.4 / 4.8 / 9.6 / 19.2 / 38.4 / 57.6 / 115.2 kbps; the PC/PPI cable can also be used as RS 232/RS 485 converter

Integrated Functions

Counter — Number of counters6; High-speed counters (30 kHz each), 32 bit (incl. sign), can be used as up/down counters or for connecting 2 incremental encoders with 2 pulse trains offset by 90° (max. 20 kHz (A/B counters)); parameterizable enable and reset input; interrupt facilities (incl. call of subroutine with any content) when the setpoint is reached; reversal in counting direction, etc.
Counter — Counting frequency, max.30 kHz
Number of alarm inputs4; 4 rising edges and/or 4 falling edges
Number of pulse outputs2; High-speed outputs, 20 kHz, with interrupt option; pulse-width and frequency modulation option
Limit frequency (pulse)20 kHz

Potential separation

between the channelsYes
between the channels, in groups of13 and 11
between the channelsYes; Optocoupler
between the channels, in groups of8 and 8

Permissible potential difference

between different circuits500 V DC between 24 V DC and 5 V DC

Degree and class of protection

IP degree of protectionIP20

Ambient conditions

horizontal installation, min.0 °C
horizontal installation, max.55 °C
vertical installation, min.0 °C
vertical installation, max.45 °C
permissible range, lower limit860 hPa
permissible range, upper limit1 080 hPa
Operation, min.5 %
Operation, max.95 %; RH class 2 in accordance with IEC 1131-2

Configuration

Command setBit logic instructions, compare instructions, timer instructions, counter instructions, clock instructions, transmissions instructions, table instructions, logic instructions, shift and rotate instructions, conversion instructions, program control instructions, interrupt and communications instructions, logic stack instructions, integer maths, floating-point math instructions, numerical functions
Program processingfree cycle (OB 1), interrupt-controller, time-controlled (1 to 255 ms)
Program organization1 OB, 1 DB, 1 SDB subroutines with/without parameter transfer
Number of subroutines, max.64
— LADYes
— FBDYes
— STLYes
User program protection/password protectionYes; 3-stage password protection

Connection method

Plug-in I/O terminalsYes

Dimensions

Width196 mm
Height80 mm
Depth62 mm

Weights

Weight, approx.550 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

6ES7 216-2AD23-OXBO: frequently asked questions

Can I still buy the 6ES7 216-2AD23-OXBO now that it is discontinued?

Yes. Siemens has discontinued the 6ES7 216-2AD23-OXBO, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 6ES7 216-2AD23-OXBO be shipped?

6ES7 216-2AD23-OXBO is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 6ES7 216-2AD23-OXBO in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 6ES7 216-2AD23-OXBO.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7 216-2AD23-OXBO, subject to availability and destination.
