B&R 8CCH0010.11120-1

Name: B&R 8CCH0010.11120-1
Brand: B&R
SKU: 8CCH0010.11120-1
Price: 227.90 EUR
Availability: InStock

MPN: 8CCH0010.11120-1 · Brand: B&R

€227.90 excl. VAT & shipping

Request a Quote

3-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 1 available
Warranty	3-month
Country of origin	null
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8CCH0010.11120-1 be shipped?

8CCH0010.11120-1 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 8CCH0010.11120-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8CCH0010.11120-1.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8CCH0010.11120-1, subject to availability and destination.

• Can be used in cable drag chains

• Cable for connection of ACOPOSremote / ACOPOSmotor drive systems to ACOPOSmulti 8BVE expansion modules

• Hybrid connector system for secure connections

• Integrated shield plate

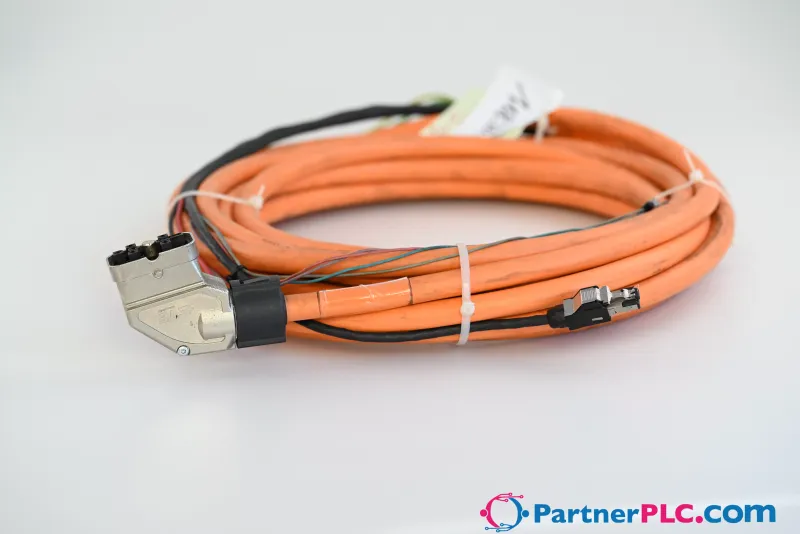

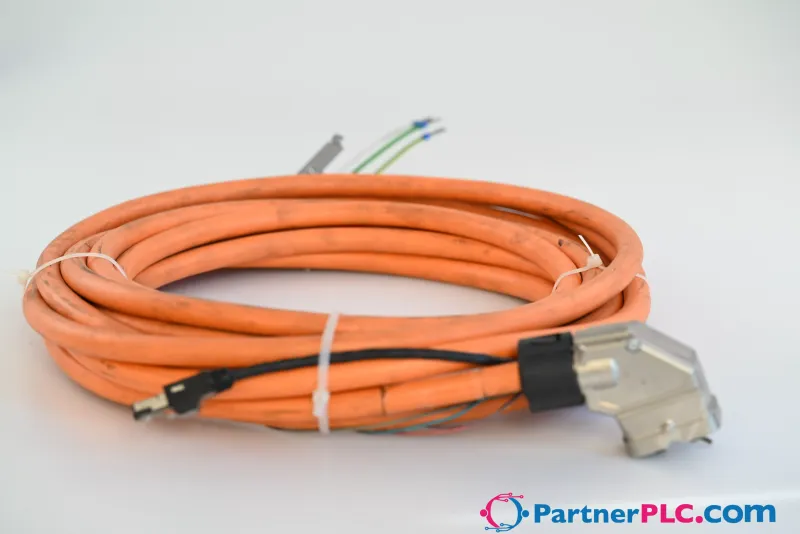

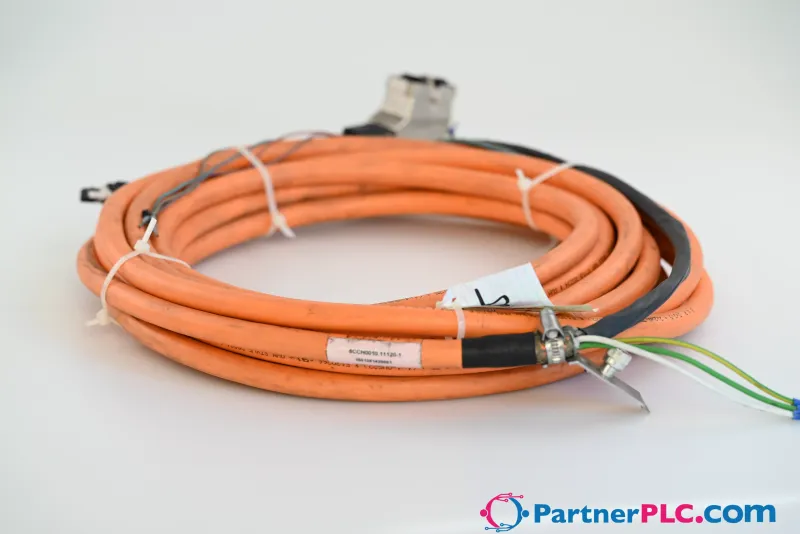

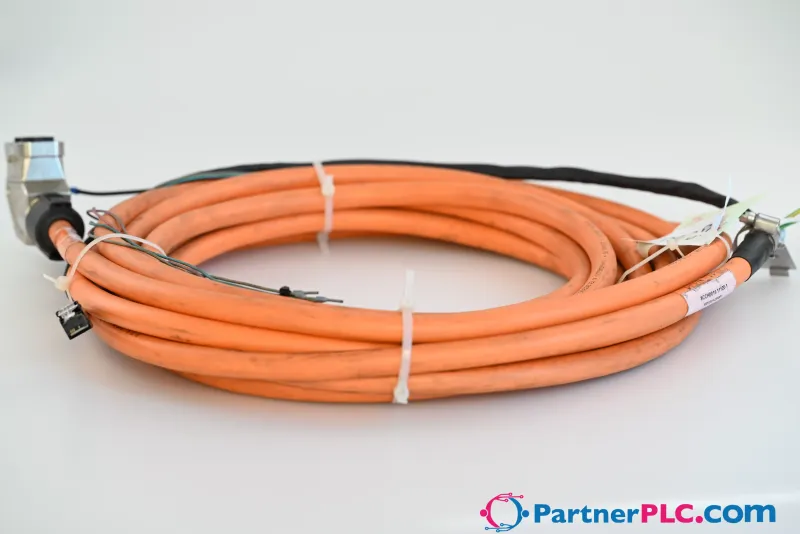

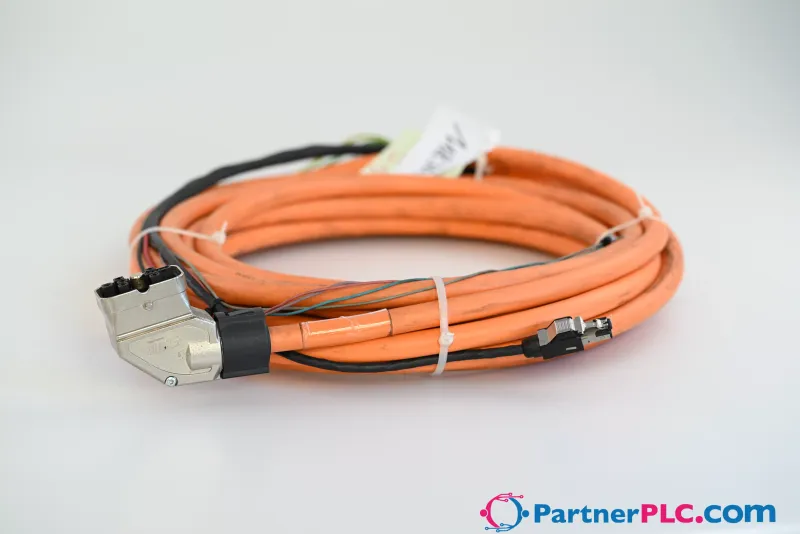

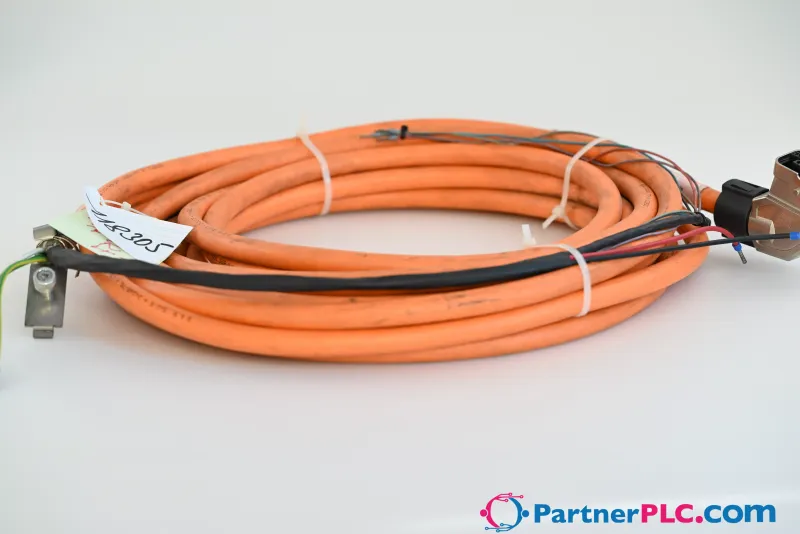

Hybrid cable for connecting 8BVE to 8CVI or 8DI, length 10 m, 2x 2x 0.34 mm² + 4x 0.75 mm² + 5x 2.5 mm², 1x 15-pin female TYCO connector, 1x RJ45 connector, integrated shield fixing, can be used in cable drag chains

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E225616; Power conversion equipment
Cable cross section	5x 2.5 mm² + 2x 2x 0.75 mm² + 2x 2x 0.34 mm² / 1.55- 100 VZN
Durability	In preparation
Certification	E130266 cURus AWM style 20234, 80°C, 1000 V and CSA C22.2 No. 210.2 I/II A/B, FT1 " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Cable construction

Power lines – Quantity	5
Power lines – Wire insulation	PE
Power lines – Wire colors	Black, red, brown, white, yellow/green
Power lines – Variant	Tinned copper stranded wire
Power lines – Cross section	2.5 mm²
Power lines – Shield	No
Power lines – Stranding	No
Signal line – Quantity	4
Signal line – Wire insulation	PE
Signal line – Wire colors	Pink/Blue, violet/gray
Signal line – Variant	Tinned copper stranded wire
Signal line – Cross section	0.75 mm²
Signal line – Shield	Yes
Signal line – Stranding	Yes
Data lines – Quantity	4
Data lines – Wire insulation	PE
Data lines – Wire colors	VZN (cat. 5)
Data lines – Variant	Tinned copper stranded wire
Data lines – Cross section	0.34 mm²
Data lines – Shield	Yes
Data lines – Stranding	Yes
Outer jacket – Material	PUR
Outer jacket – Color	Orange, similar to RAL 2003 flat
Outer jacket – Labeling	B&R 5x2.5 + 2x2x0.75 + (1x4x22AWG) * E130266 cURus AWM STYLE 20234 * AWM I/II A/B 80°C 1000 V FT1 * "internal lot number" " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">
Cable stranding	With filler elements and foil shield
Cable shield	Tinned copper braiding, optical coverage >85% and foil shield

Connector

Type	15-pin female TYCO connector
Mating cycles	Max. 20
Contacts	15
Degree of protection per EN 60529	IP65

Electrical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Test voltage – Wire - Wire	2.5 mm²: 3 kV; 0.75 mm²: 2 kV; 0.34 mm²: 2 kV
Test voltage – Wire - Shield	2.5 mm²: 3 kV; 0.75 mm²: 1 kV; 0.34 mm²: 1 kV
Conductor resistance – Power lines	≤8 Ω/km
Conductor resistance – Signal line	≤26 Ω/km
Conductor resistance – Data lines	≤56 Ω/km
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting	23.7 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct	27.3 A
Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray	29.1 A
Operating voltage	Power lines: ≤1000 V; Signal lines: ≤1000 V; Data lines: ≤100 V
Insulation resistance	≥500 MΩ*km

Ambient conditions " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Temperature – Moving	-40°C to +80°C
Temperature – Static	-40°C to +80°C

Mechanical properties " data-placement="top" data-html="true" data-container="body" data-content="Values refer to the raw cable being used.">

Dimensions – Length	10 m
Dimensions – Diameter	14.6 mm ±0.4 mm
Bend radius – Single bend	>60 mm
Bend radius – Moving	≥150 mm
Drag chain data – Acceleration	Max. 50 m/s² (depends on the length of the travel path)
Drag chain data – Flex cycles	≥5,000,000
Drag chain data – Velocity	Max. 300 m/min
Weight	3.5 kg
