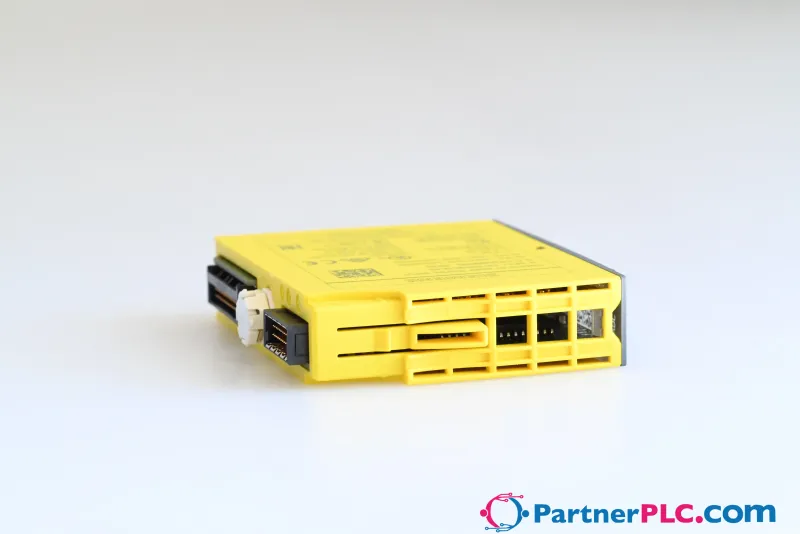

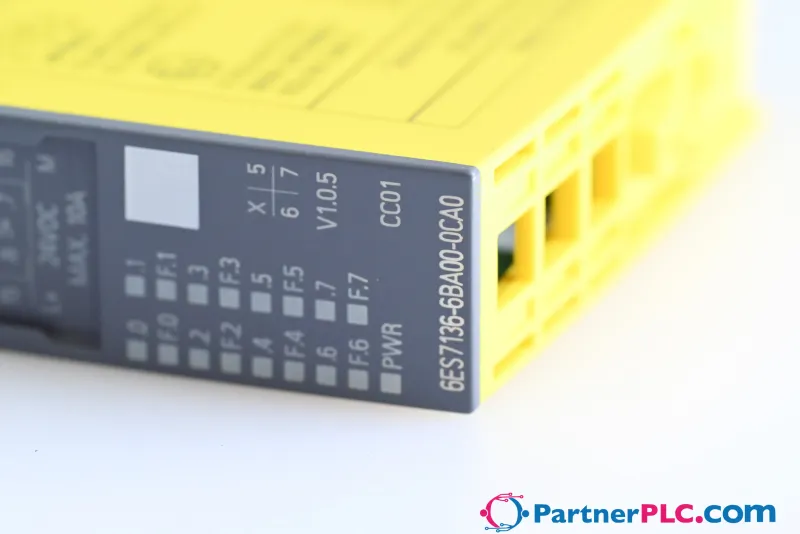

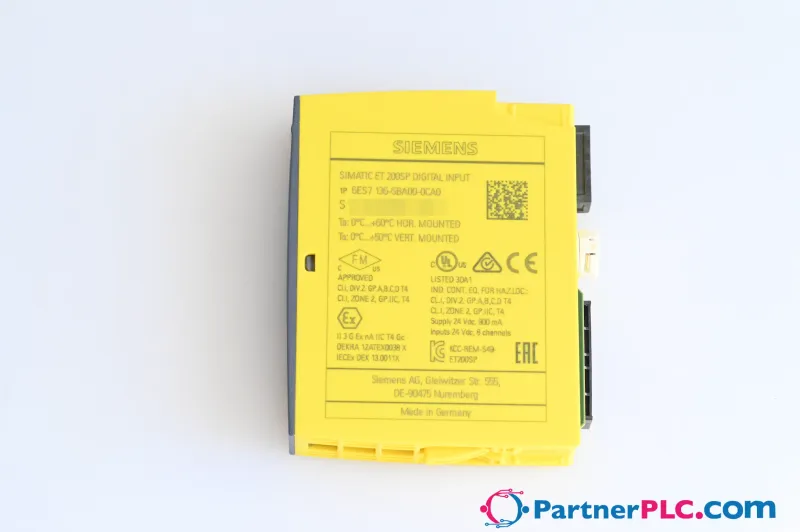

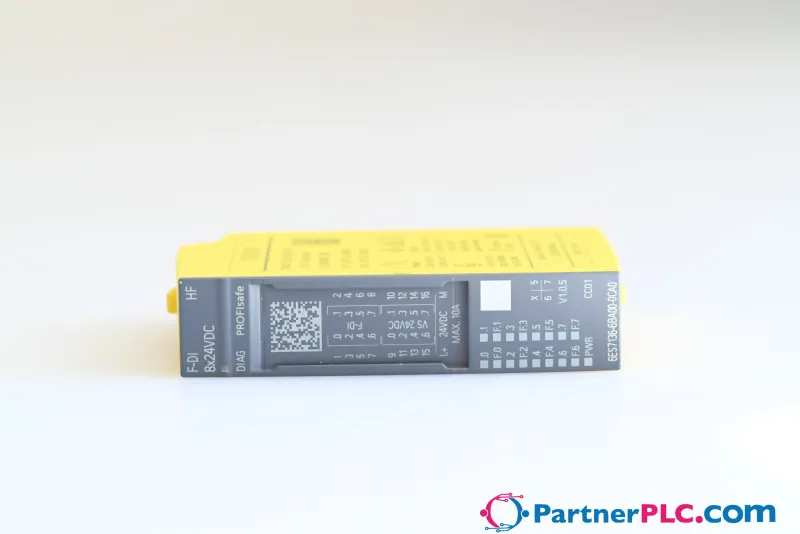

Siemens 6ES7136-6BA00-0CA0

Digital I/O Module

MPN: 6ES7136-6BA00-0CA0
Category: Digital I/O Modules

€200.34excl. VAT & shipping

In stock — 4 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7136-6BA00-0CA0?

Digital I/O Module

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6ES7136-6BA00-0CA0
Product type designation	F-DI 8x24VDC HF
usable BaseUnits	BU type A0
I&M data	Yes; I&M0 to I&M3
STEP 7 TIA Portal configurable/integrated from version	V12
STEP 7 configurable/integrated from version	V5.5 SP3 / -
PROFINET from GSD version/GSD revision	V2.31
DI	Yes

CiR - Configuration in RUN

Reparameterization possible in RUN

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes
power supply according to NEC Class 2 required	No

Input current

Current consumption (rated value)	75 mA; without load
Current consumption, max.	21 mA; From the backplane bus

Encoder supply

Number of outputs	8
Short-circuit protection	Yes; Electronic (response threshold 0.7 A to 1.8 A)
up to 60 °C, max.	0.3 A
24 V	Yes; min. L+ (-1.5 V)
Short-circuit protection	Yes
Output current, max.	800 mA; Total current of all encoders

Power

Power consumption from the backplane bus

70 mW

Power loss

Power loss, typ.

4 W

Address area

Inputs	6 byte
Outputs	4 byte

Hardware configuration

Automatic encoding	Yes
Electronic coding element type F	Yes

Digital inputs

Number of digital inputs	8
Digital inputs, parameterizable	Yes
Sourcing/sinking input	Yes; P-reading
Input characteristic curve in accordance with IEC 61131, type 1	Yes
Rated value (DC)	24 V
for signal "0"	-30 to +5 V
for signal "1"	+15 to +30 V
for signal "1", typ.	3.7 mA
— parameterizable	Yes
— at "0" to "1", min.	0.4 ms
— at "0" to "1", max.	20 ms
— at "1" to "0", min.	0.4 ms
— at "1" to "0", max.	20 ms
— Parameterizable	No
shielded, max.	1 000 m
unshielded, max.	500 m

Interrupts/diagnostics/status information

Diagnostics function	Yes; See Chapter "Alarms/diagnostic messages" in the manual
Diagnostic alarm	Yes
Hardware interrupt	No
RUN LED	Yes; green LED
ERROR LED	Yes; red LED
Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Channel status display	Yes; green LED
for channel diagnostics	Yes; red LED
for module diagnostics	Yes; green/red DIAG LED

Potential separation

between the channels	No
between the channels and backplane bus	Yes
between the channels and the power supply of the electronics	No

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functions	Yes
environmental product declaration	Yes
— global warming potential, (total) [CO2 eq]	88.3 kg
— global warming potential, (during production) [CO2 eq]	13.1 kg
— global warming potential, (during operation) [CO2 eq]	76.6 kg
— global warming potential, (after end of life cycle) [CO2 eq]	-1.37 kg
Performance level according to ISO 13849-1	PLe
SIL acc. to IEC 61508	SIL 3
— Low demand mode: PFDavg in accordance with SIL3	< 2.00E-05
— High demand/continuous mode: PFH in accordance with SIL3	< 1.00E-09 1/h

Ambient conditions

horizontal installation, min.	0 °C
horizontal installation, max.	60 °C
vertical installation, min.	0 °C
vertical installation, max.	50 °C
Installation altitude above sea level, max.	4 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Dimensions

Width	15 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

49 g
