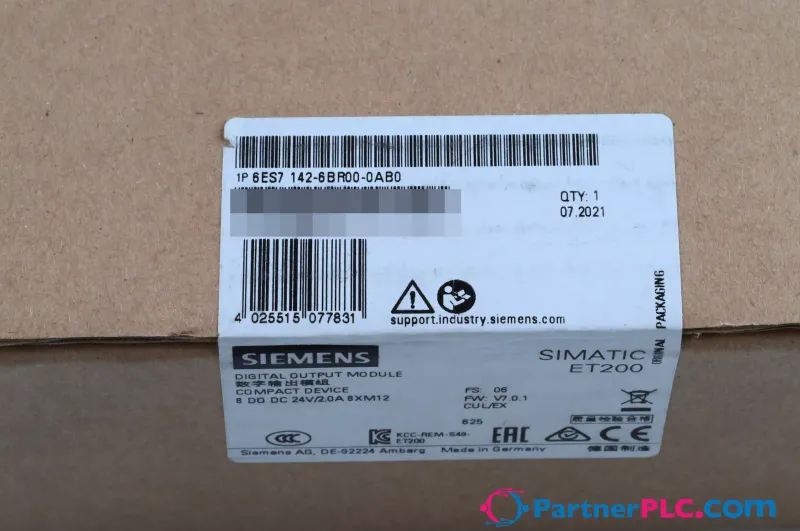

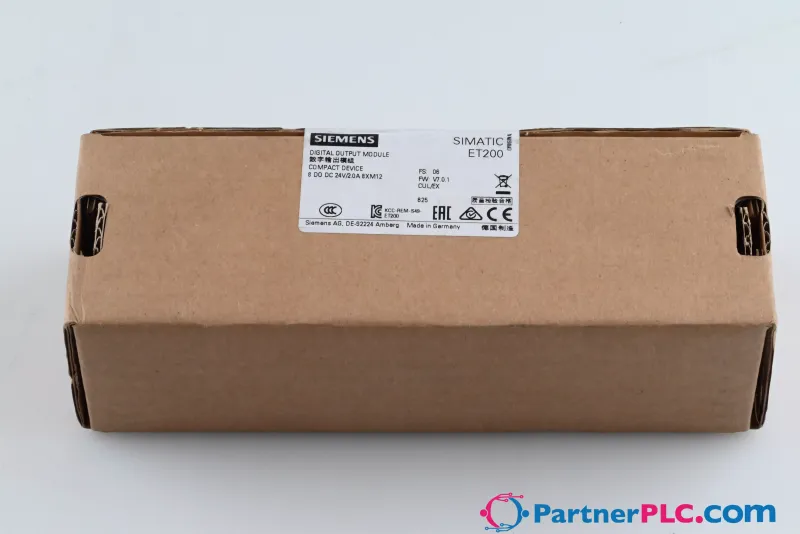

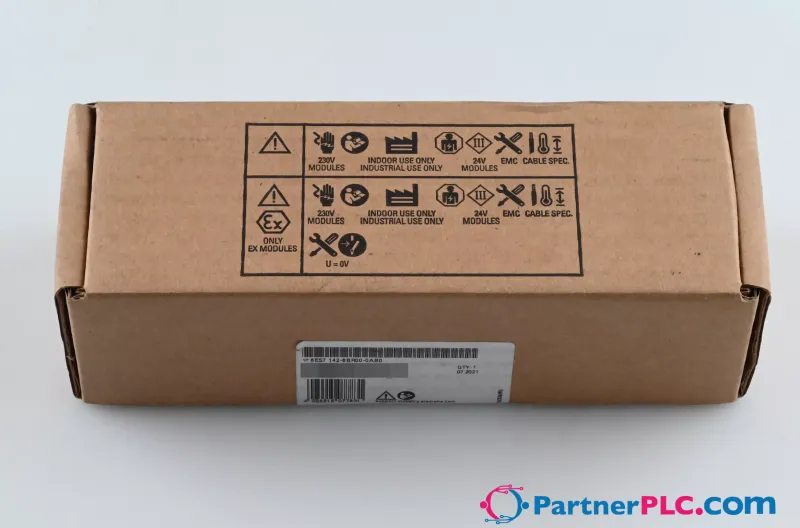

Siemens 6ES7 142-6BR00-0AB0

Digital I/O Module

MPN: 6ES7 142-6BR00-0AB0
Category: Digital I/O Modules

€412.34excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7 142-6BR00-0AB0?

Digital I/O Module

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6ES7142-6BR00-0AB0
Vendor identification (VendorID)	002AH
Device identifier (DeviceID)	0306H

Supply voltage

Rated value (DC)	24 V
Reverse polarity protection	Yes
power supply according to NEC Class 2 required	Yes
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption, typ.	100 mA
from supply voltage 1L+, max.	4 A
from load voltage 1L+ (unswitched voltage)	4 A
from load voltage 2L+, max.	4 A

Power loss

Power loss, typ.

5 W

Digital outputs

Number of digital outputs	8
in groups of	4
Short-circuit protection	Yes
Response threshold, typ.	2.8 A
Limitation of inductive shutdown voltage to	Typ. (L1+, L2+) -47 V
Controlling a digital input	Yes
on lamp load, max.	10 W
for signal "1" rated value	2 A
for signal "0" residual current, max.	1.5 mA
for uprating	No
for redundant control of a load	Yes
with resistive load, max.	100 Hz
with inductive load, max.	0.5 Hz
on lamp load, max.	1 Hz
— up to 60 °C, max.	3.9 A
unshielded, max.	30 m

Interfaces

Transmission procedure	100BASE-TX
Number of PROFINET interfaces	1

1. Interface

integrated switch	Yes
— IRT with the option "high flexibility"	Yes
— Prioritized startup	Yes

Interface types

Autonegotiation	Yes
Autocrossing	Yes
Transmission rate, max.	100 Mbit/s

Protocols

Supports protocol for PROFINET IO	Yes
PROFINET CBA	No
PROFIsafe	No
— MRP	Yes
TCP/IP	No
SNMP	Yes
DCP	Yes
LLDP	Yes
ping	Yes
ARP	Yes

Interrupts/diagnostics/status information

Diagnostics function	Yes
Diagnostic alarm	Yes
Diagnostic information readable	Yes
Monitoring the supply voltage	Yes; green "ON" LED
Wire-break in actuator cable	Yes
short-circuit	Yes
Group error	Yes; Red/yellow "SF/MT" LED

Potential separation

between the load voltages	Yes
between load voltage and all other switching components	No
between Ethernet and electronics	Yes
between the channels	No

Isolation

24 V DC circuits	707 V DC (type test)
Test voltage for interface, rms value [Vrms]	1 500 V; According to IEEE 802.3

Degree and class of protection

IP degree of protection

IP65/67

Standards, approvals, certificates

Suitable for safety-related tripping of standard modules	Yes
Performance level according to ISO 13849-1	PL d
Category according to ISO 13849-1	Cat. 3
SIL acc. to IEC 62061	SIL 2
remark on safety-oriented shutdown	https://support.industry.siemens.com/cs/de/en/view/39198632
Explosion protection category for gas	ATEX II 3G Ex nA II T4
Explosion protection category for dust	ATEX II 3D Ex tc IIIC T90°C Dc

Connection method

Design of electrical connection

4/5-pin M12 circular connectors

Dimensions

Width	60 mm
Height	175 mm
Depth	49 mm

Weights

Weight, approx.

910 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7142-6BR00-0AB0PDF

6ES7 142-6BR00-0AB0: frequently asked questions

Can I still buy the 6ES7 142-6BR00-0AB0 now that it is discontinued?

Yes. Siemens has discontinued the 6ES7 142-6BR00-0AB0, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can 6ES7 142-6BR00-0AB0 be shipped?

6ES7 142-6BR00-0AB0 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 6ES7 142-6BR00-0AB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 6ES7 142-6BR00-0AB0.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7 142-6BR00-0AB0, subject to availability and destination.
