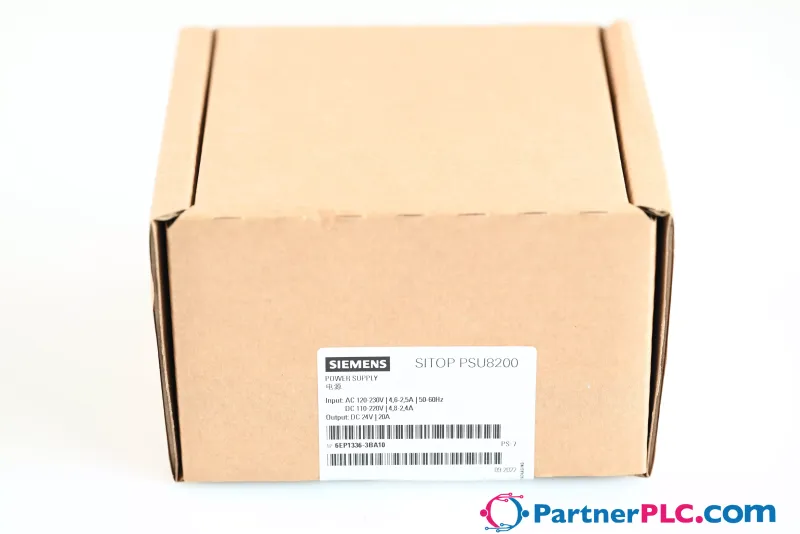

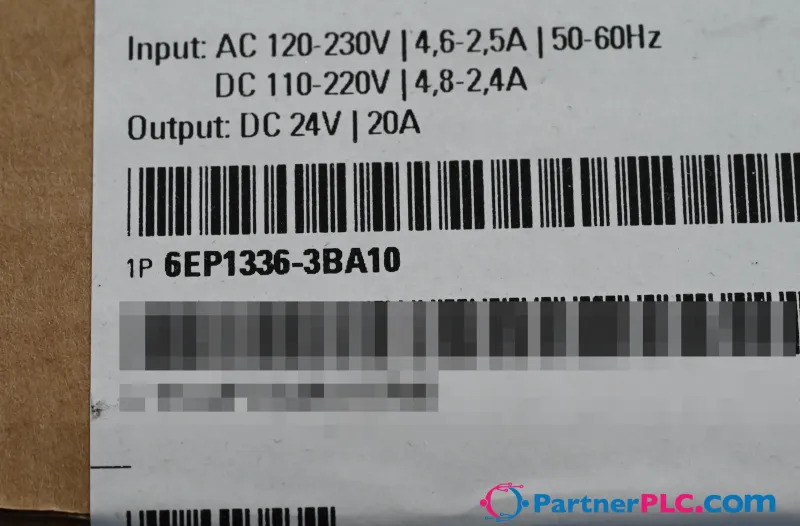

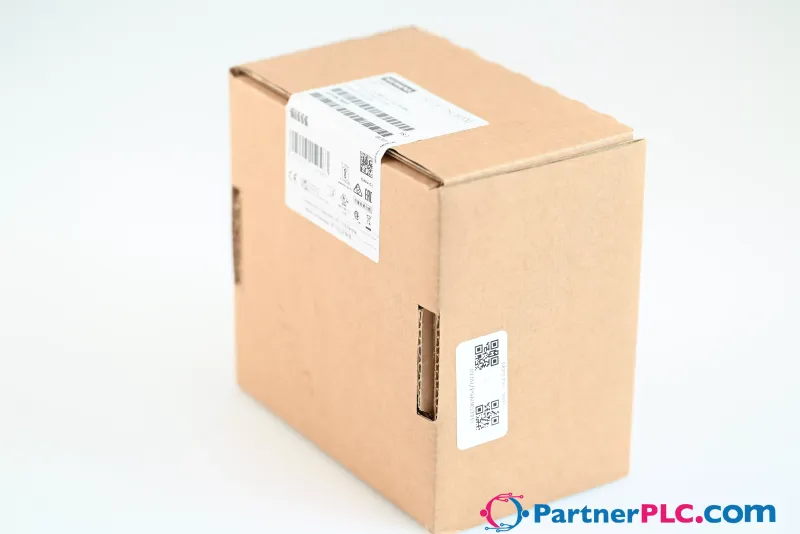

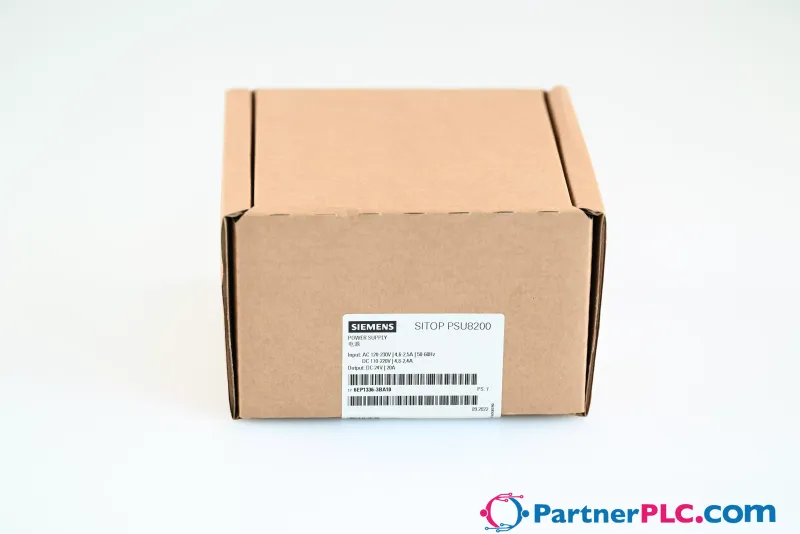

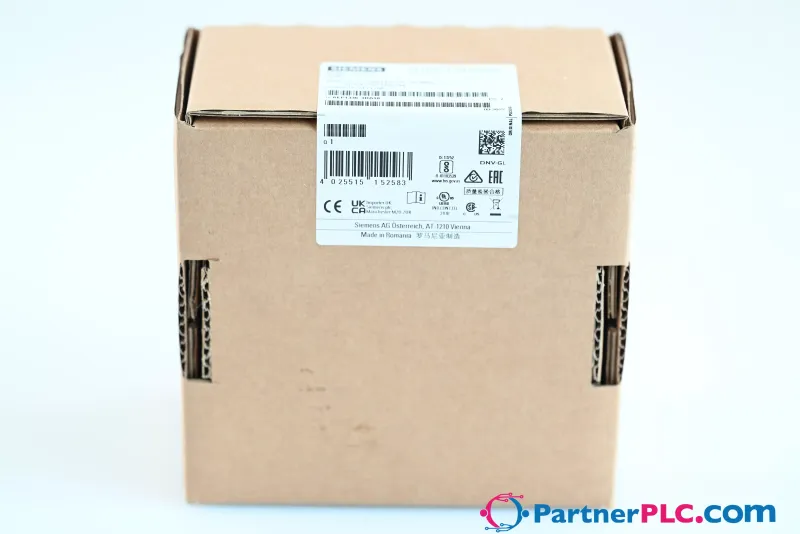

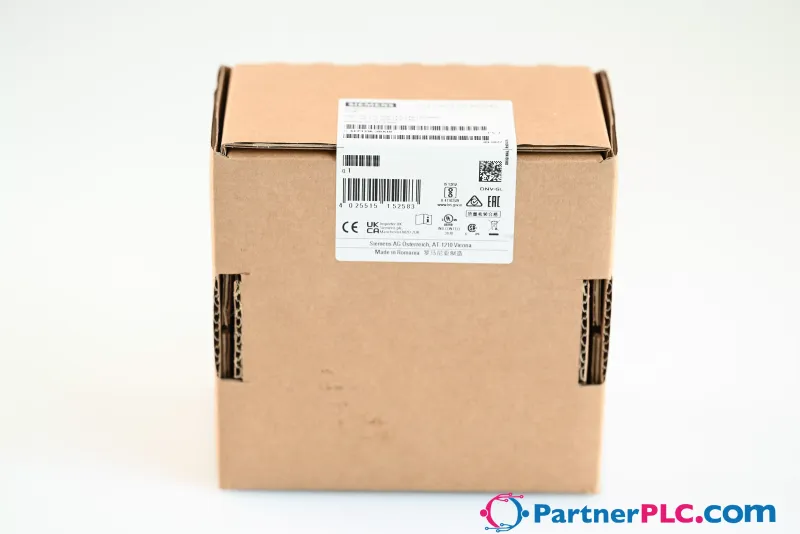

Siemens 6EP1336-3BA10

Power Supply

MPN: 6EP1336-3BA10
Category: Power Supplies

€221.54excl. VAT & shipping

In stock — 4 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 6EP1336-3BA10?

Power Supply

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP1336-3BA10
Technical Product Detail Page	https://i.siemens.com/1P6EP1336-3BA10
product brand name	SITOP
product type designation	PSU8200
product designation	Power supply SITOP modular
type of current supply	24 V/20 A

input

type of the power supply network	1-phase and 2-phase AC or DC
phase number	1
voltage curve at input	AC/DC
supply voltage at AC — minimum rated value	120 V
supply voltage at AC — maximum rated value	230 V
supply voltage at AC — initial value	85 V
supply voltage at AC — full-scale value	275 V
supply voltage at AC	temperature derating necessary at Uin<100 V AC or DC at 50 °C; additional derating at Uin<100 V: Uin=95 V Pa max=460 W, Uin=90 V Pa max=440 W, Uin=85 V Pa max=420 W
supply voltage at DC	110 ... 220 V
input voltage at DC	88 ... 350 V
supply voltage — at 50 Hz	230 V
supply voltage — at 60 Hz	120 V
line frequency	50/60 Hz
line frequency	47 ... 63 Hz
wide range input	Yes
buffering time for rated value of the output current in the event of power failure minimum	20 ms
operating condition of the mains buffering	at Vin = 230 V
input current — at rated input voltage 120 V	4.6 A
input current — at rated input voltage 230 V	2.5 A
current limitation of inrush current at 25 °C maximum	20 A
I2t value maximum	5 A²·s
fuse protection type	Yes
fuse protection type in the feeder	Recommended miniature circuit breaker at 1-phase operation: 10 A characteristic C; required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2711-1HD10 (UL 489) at 120 V or 3RV2711-1ED10 (UL 489) at 230 V

output

voltage curve at output	Controlled, isolated DC voltage
product function output voltage controlled	Yes
product function output voltage stabilized	Yes
output voltage at DC rated value	24 V
output voltage — at output 1 at DC rated value	24 V
output voltage — at output 1 at DC	24 V
output voltage adjustable	Yes; via potentiometer
adjustable output voltage	24 ... 28 V
relative overall tolerance of the voltage	3 %
relative control precision of the output voltage — on slow fluctuation of input voltage	0.1 %
relative control precision of the output voltage — on slow fluctuation of ohm loading	0.3 %
residual ripple — maximum	100 mV
residual ripple — typical	80 mV
voltage peak — maximum	200 mV
voltage peak — typical	100 mV
display version for normal operation	Green LED for 24 V OK
type of signal at output	Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"
behavior of the output voltage when switching on	No overshoot of Vout (soft start)
response delay maximum	1.5 s
voltage increase time of the output voltage — typical	250 ms
output current — rated value	20 A
output current — rated range	0 ... 20 A; +60 ... +70 °C: Derating 3%/K
supplied active power typical	480 W
short-term overload current — at short-circuit during operation typical	60 A
duration of overloading capability for excess current — at short-circuit during operation	25 ms
constant overload current — on short-circuiting during the start-up typical	30 A
bridging of equipment	Yes; switchable characteristic
number of parallel-switched equipment resources for increasing the power	2

efficiency

efficiency in percent	94 %
power loss [W] — at rated output voltage for rated value of the output current typical	31 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	0.5 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical	1 %
setting time — load step 50 to 100% typical	1 ms
setting time — load step 100 to 50% typical	1 ms
setting time — maximum	5 ms

protection and monitoring

design of the overvoltage protection	< 31.8 V
property of the output short-circuit proof	Yes
design of short-circuit protection	Alternatively, constant current characteristic approx. 21.5 A or latching shutdown
typical	21.5 A
overcurrent overload capability — in normal operation	overload capability 150 % Iout rated up to 5 s/min
enduring short circuit current RMS value — typical	21.5 A
display version for overload and short circuit	LED yellow for "overload", LED red for "latching shutdown"

safety

galvanic isolation between input and output	Yes
galvanic isolation	Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection class	Class I
leakage current — maximum	3.5 mA
leakage current — typical	1 mA
protection class IP	IP20

EMC

standard — for emitted interference	EN 55022 Class B
standard — for mains harmonics limitation	EN 61000-3-2
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
certificate of suitability — UKCA marking	Yes
certificate of suitability — EAC approval	Yes
certificate of suitability — Regulatory Compliance Mark (RCM)	Yes
certificate of suitability — NEC Class 2	No
certificate of suitability — SEMI F47	Yes
type of certification — BIS	Yes; R-41183539
type of certification — CB-certificate	Yes
MTBF at 40 °C	583 500 h

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	No
certificate of suitability — ATEX	No
certificate of suitability — ULhazloc approval	No
certificate of suitability — FM registration	No

standards, specifications, approvals marine classification

shipbuilding approval	Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	Yes
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	Yes
Marine classification association — Lloyds Register of Shipping (LRS)	No

standards, specifications, approvals Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	814.3 kg
global warming potential [CO2 eq] — during manufacturing	28.7 kg
global warming potential [CO2 eq] — during operation	785 kg
global warming potential [CO2 eq] — after end of life	0.24 kg

ambient conditions

ambient temperature — during operation	-25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	screw terminal
at input	L, N, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded
at output	+, -: 2 screw terminals each for 0.2 ... 4 mm²
for auxiliary contacts	13, 14 (alarm signal), 15, 16 (Remote ON OFF): 1 screw terminal each for 0.14 ... 1.5 mm²

mechanical data

width × height × depth of the enclosure	90 × 125 × 125 mm
installation width × mounting height	90 mm × 225 mm
required spacing — top	50 mm
required spacing — bottom	50 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mounting	Yes
S7 rail mounting	No
wall mounting	No
housing can be lined up	Yes
net weight	1.2 kg

accessories

electrical accessories	Buffer module
mechanical accessories	Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

further information internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: power supplies	https://siemens.com/sitop
internet link — to website: CAx-Download-Manager	https://siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
