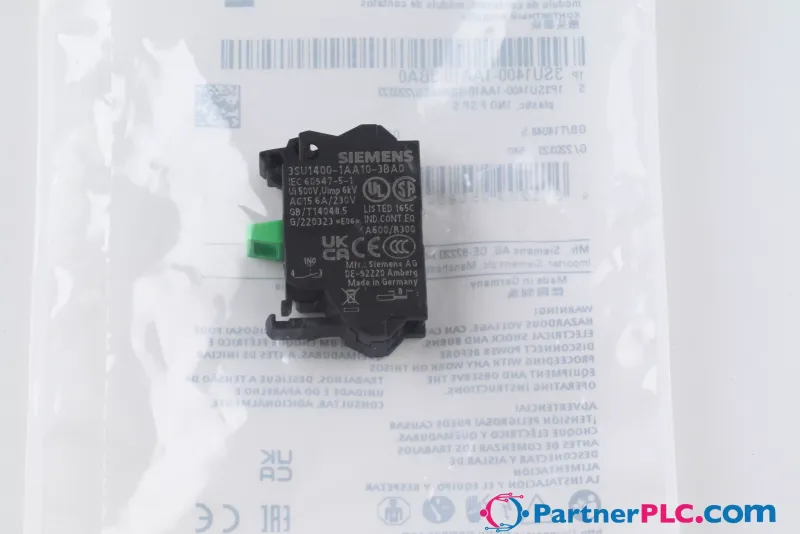

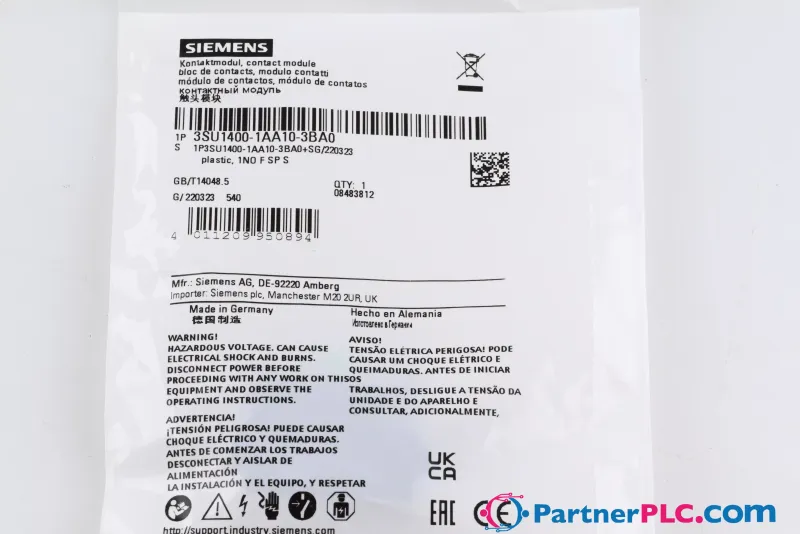

Siemens 3SU1400-1AA10-3BA0

Accessory

MPN: 3SU1400-1AA10-3BA0
Category: Accessories

€6.36excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3SU1400-1AA10-3BA0?

Accessory

Specifications

Contact block/ lampholder

Technical Product Detail Page	https://i.siemens.com/1P3SU1400-1AA10-3BA0
socket design	other

General technical data

product function positive opening	No
insulation voltage rated value	500 V
degree of pollution	3
type of voltage — of the operating voltage	AC/DC
type of voltage — of the input voltage	AC/DC
surge voltage resistance rated value	6 kV
protection class IP — of the enclosure	IP40
protection class IP — of the terminal	IP20
shock resistance — according to IEC 60068-2-27	sinusoidal half-wave 15 g / 11 ms
shock resistance — for railway applications according to EN 61373	Category 1, Class B
vibration resistance — according to IEC 60068-2-6	10 ... 500 Hz: 5 g
vibration resistance — for railway applications according to EN 61373	Category 1, Class B
operating frequency maximum	3 600 1/h
mechanical service life (operating cycles) typical	10 000 000
electrical endurance (operating cycles) typical	10 000 000
thermal current	10 A
reference code according to IEC 81346-2	S
continuous current of the C characteristic MCB	10 A
Substance Prohibitance (day/month/year)	10/01/2014
Net Weight	8 g
— at 50 Hz rated value	5 ... 500 V
— at 60 Hz rated value	5 ... 500 V
at DC rated value	5 ... 500 V

Power Electronics

contact reliability

One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Auxiliary circuit

design of the contact of auxiliary contacts	Silver alloy
number of NC contacts for auxiliary contacts	0
lagging switching	0
number of NO contacts for auxiliary contacts	1
leading contact	0
operational current at AC-12 — at 24 V rated value	10 A
operational current at AC-12 — at 48 V rated value	10 A
operational current at AC-12 — at 110 V rated value	10 A
operational current at AC-12 — at 230 V rated value	8 A
operational current at AC-12 — at 400 V rated value	8 A
operational current at AC-15 — at 24 V rated value	6 A
operational current at AC-15 — at 48 V rated value	6 A
operational current at AC-15 — at 110 V rated value	6 A
operational current at AC-15 — at 230 V rated value	6 A
operational current at AC-15 — at 400 V rated value	3 A
operational current at AC-15 — at 500 V rated value	1.4 A
operational current at DC-12 — at 24 V rated value	10 A
operational current at DC-12 — at 48 V rated value	5 A
operational current at DC-12 — at 110 V rated value	2.5 A
operational current at DC-12 — at 230 V rated value	1 A
operational current at DC-12 — at 400 V rated value	0.3 A
operational current at DC-12 — at 500 V rated value	0.3 A
operational current at DC-13 — at 24 V rated value	3 A
operational current at DC-13 — at 48 V rated value	1.5 A
operational current at DC-13 — at 110 V rated value	0.7 A
operational current at DC-13 — at 230 V rated value	0.3 A
operational current at DC-13 — at 400 V rated value	0.1 A
operational current at DC-13 — at 500 V rated value	0.1 A

Connections/ Terminals

type of electrical connection	spring-loaded terminals
type of connectable conductor cross-sections — solid without core end processing	2x (0.25 ... 1.5 mm²)
type of connectable conductor cross-sections — finely stranded with core end processing	2x (0.25 ... 0.75 mm²)
type of connectable conductor cross-sections — finely stranded without core end processing	2x (0.25 ... 1.5 mm²)
type of connectable conductor cross-sections — for AWG cables	2x (24 ... 16)

Ambient conditions

ambient temperature — during operation	-25 ... +70 °C
ambient temperature — during storage	-40 ... +80 °C
environmental category during operation according to IEC 60721	3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted)

Installation/ mounting/ dimensions

fastening method	front plate mounting
of modules and accessories	Front plate mounting
height	36 mm
width	9.8 mm
depth	27.7 mm
suitability for integration — plastic enclosure	Yes
suitability for integration — metal enclosure	Yes

Environmental footprint

Environmental Product Declaration(EPD)	Yes
global warming potential [CO2 eq] total	0.787 kg
global warming potential [CO2 eq] during manufacturing	0.566 kg
global warming potential [CO2 eq] during operation	0.235 kg
global warming potential [CO2 eq] after end of life	-0.015 kg
