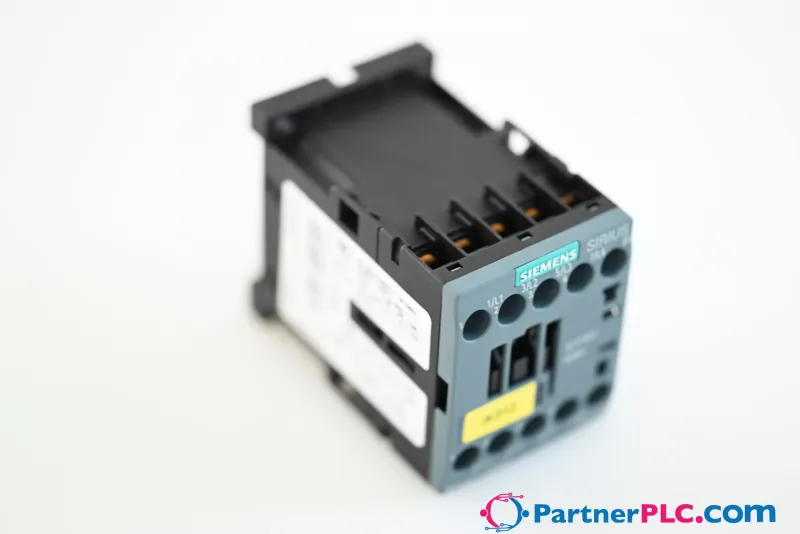

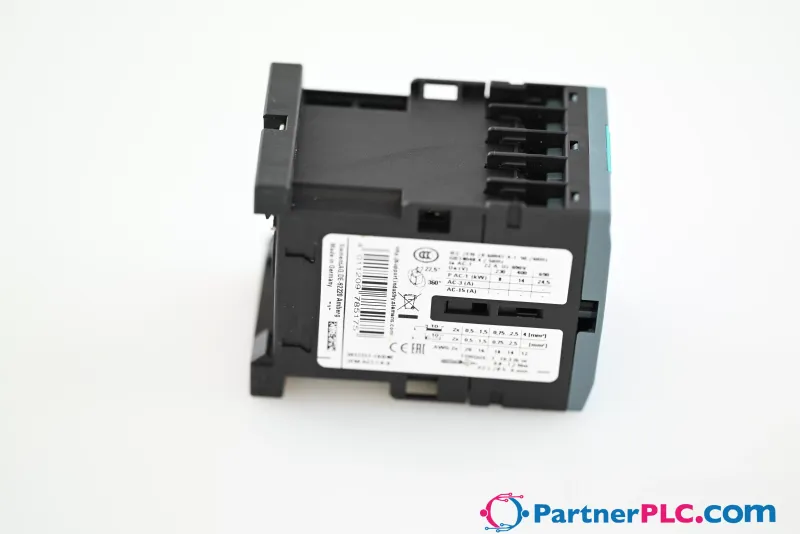

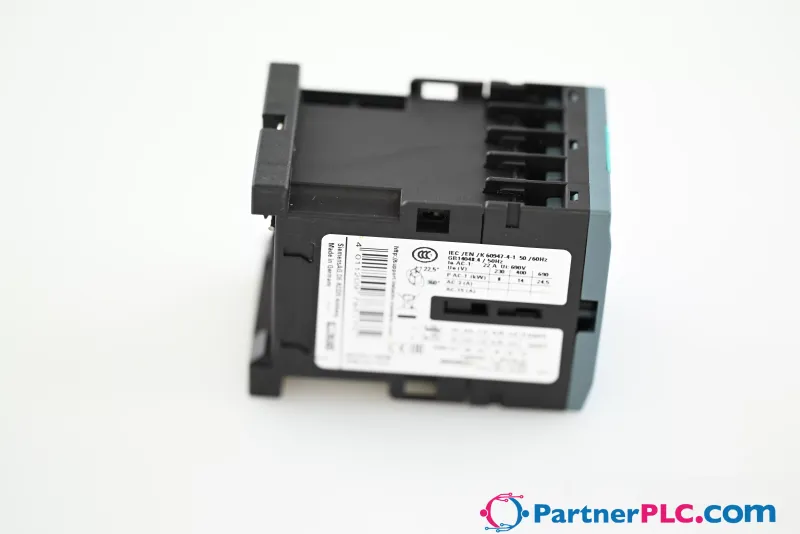

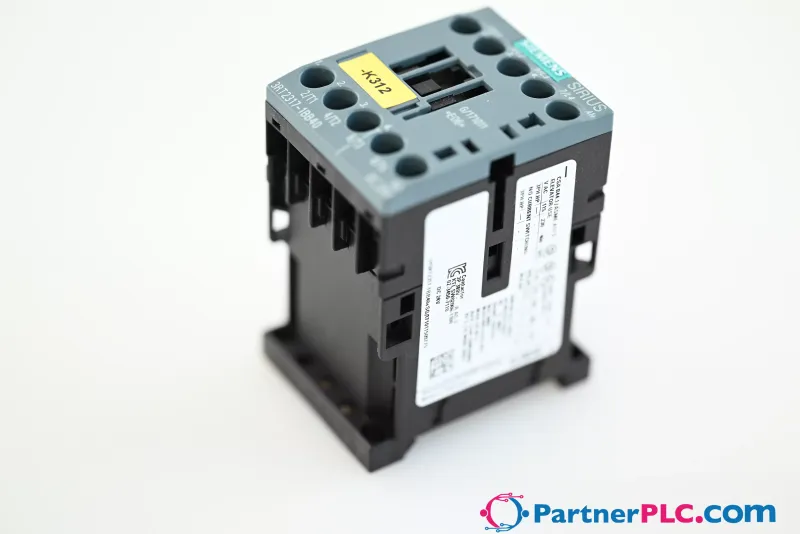

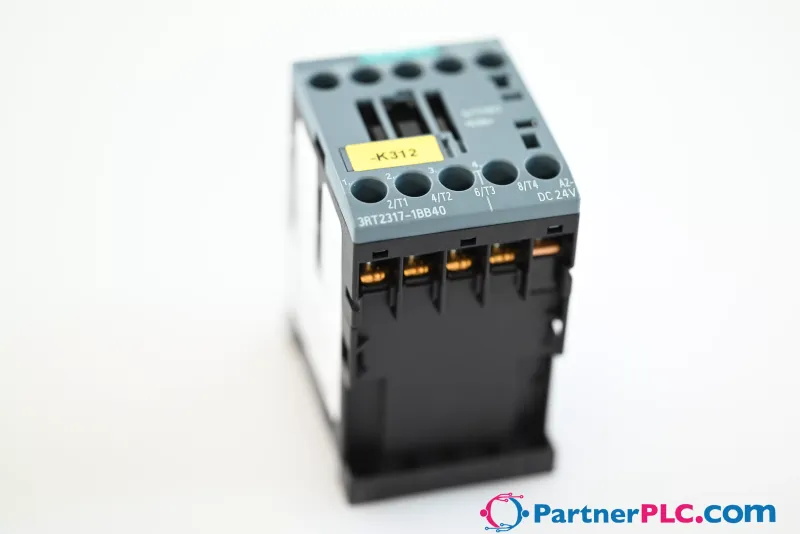

Siemens 3RT2317-1BB40

Circuit Protection & Switching

MPN: 3RT2317-1BB40
Category: Circuit Protection & Switching

€68.90excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RT2317-1BB40?

Circuit Protection & Switching

Specifications

General technical data

Technical Product Detail Page	https://i.siemens.com/1P3RT2317-1BB40
size of contactor	S00
product extension — function module for communication	No
product extension — auxiliary switch	Yes
power loss [W] for rated value of the current — at AC in hot operating state	6.4 W
power loss [W] for rated value of the current — at AC in hot operating state per pole	1.6 W
power loss [W] for rated value of the current — without load current share typical	4 W
type of calculation of power loss current-dependent	quadratic
insulation voltage — of main circuit with degree of pollution 3 rated value	690 V
insulation voltage — of the auxiliary and control circuit with degree of pollution 3 rated value	690 V
surge voltage resistance — of main circuit rated value	6 kV
surge voltage resistance — of auxiliary circuit rated value	6 kV
shock resistance at rectangular impulse — at DC	7.3 g / 5 ms, 4.7 g / 10 ms
shock resistance with sine pulse — at DC	11,4 g / 5 ms, 7,3g / 10 ms
mechanical service life (operating cycles) — of contactor typical	30 000 000
mechanical service life (operating cycles) — of the contactor with added auxiliary switch block typical	10 000 000
reference code according to IEC 81346-2	Q
Substance Prohibitance (day/month/year)	10/01/2009
Net Weight	278.8 g

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-55 ... +80 °C
relative humidity minimum	10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum	95 %

Main circuit

number of poles for main current circuit	4
number of NO contacts for main contacts	4
type of voltage for main current circuit	AC
operational current — at AC-1 at 400 V at ambient temperature 40 °C rated value	22 A
— up to 690 V at ambient temperature 40 °C rated value	22 A
— up to 690 V at ambient temperature 60 °C rated value	20 A
— at 400 V rated value	12 A
at AC-4 at 400 V rated value	8.5 A
minimum cross-section in main circuit at maximum AC-1 rated value	4 mm²
— at 24 V rated value	20 A
— at 60 V rated value	20 A
— at 110 V rated value	2.1 A
— at 220 V rated value	0.8 A
— at 440 V rated value	0.6 A
— at 24 V rated value	20 A
— at 60 V rated value	20 A
— at 110 V rated value	12 A
— at 220 V rated value	1.6 A
— at 440 V rated value	0.8 A
— at 24 V rated value	20 A
— at 60 V rated value	20 A
— at 110 V rated value	20 A
— at 220 V rated value	20 A
— at 440 V rated value	1.3 A
— at 24 V rated value	20 A
— at 60 V rated value	0.5 A
— at 110 V rated value	0.15 A
— at 24 V rated value	20 A
— at 60 V rated value	5 A
— at 110 V rated value	0.35 A
— at 24 V rated value	20 A
— at 60 V rated value	20 A
— at 110 V rated value	20 A
— at 220 V rated value	1.5 A
— at 440 V rated value	0.2 A
operating power — at AC-3 at 400 V rated value	5.5 kW
operating power — at AC-4 at 400 V rated value	4 kW
no-load switching frequency — at DC	10 000 1/h
operating frequency — at AC-1 maximum	1 000 1/h

Control circuit/ Control

type of voltage	DC
type of voltage of the control supply voltage	DC
control supply voltage at DC rated value	24 V
operating range factor control supply voltage rated value of magnet coil at DC — initial value	0.8
operating range factor control supply voltage rated value of magnet coil at DC — full-scale value	1.1
closing power of magnet coil at DC	4 W
holding power of magnet coil at DC	4 W
closing delay — at DC	30 ... 100 ms
opening delay — at DC	7 ... 13 ms
arcing time	10 ... 15 ms
control version of the switch operating mechanism	Standard A1 - A2

Auxiliary circuit

number of NC contacts for auxiliary contacts — attachable	2
number of NO contacts for auxiliary contacts — attachable	2

Short-circuit protection

— with type of coordination 1 required	gG: 35 A (690 V, 100 kA)
— with type of coordination 2 required	gG: 20 A (690 V, 100 kA)

Installation/ mounting/ dimensions

mounting position	+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
fastening method side-by-side mounting	Yes
fastening method	screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
height	58 mm
width	45 mm
depth	73 mm
— forwards	10 mm
— upwards	10 mm
— downwards	10 mm
— at the side	0 mm
— forwards	10 mm
— upwards	10 mm
— at the side	6 mm
— downwards	10 mm
— forwards	10 mm
— upwards	10 mm
— downwards	10 mm
— at the side	6 mm

Connections/ Terminals

type of electrical connection — for main current circuit	screw-type terminals
type of electrical connection — for auxiliary and control circuit	screw-type terminals
type of electrical connection — at contactor for auxiliary contacts	Screw-type terminals
type of electrical connection — of magnet coil	screw terminal
— solid	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
— solid or stranded	2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x 4 mm²
— finely stranded with core end processing	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
for AWG cables for main contacts	2x (20 ... 16), 2x (18 ... 14), 2x 12
connectable conductor cross-section for main contacts — solid	0.5 ... 4 mm²
connectable conductor cross-section for main contacts — solid or stranded	0.5 ... 4 mm²
connectable conductor cross-section for main contacts — stranded	0.5 ... 4 mm²
connectable conductor cross-section for main contacts — finely stranded with core end processing	0.5 ... 2.5 mm²
connectable conductor cross-section for auxiliary contacts — solid or stranded	0.5 ... 4 mm²
connectable conductor cross-section for auxiliary contacts — finely stranded with core end processing	0.5 ... 2.5 mm²
— solid	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
— solid or stranded	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²), 2x 4 mm²
— finely stranded with core end processing	2x (0.5 ... 1.5 mm²), 2x (0.75 ... 2.5 mm²)
for AWG cables for auxiliary contacts	2x (20 ... 16), 2x (18 ... 14), 2x 12
AWG number as coded connectable conductor cross section for main contacts	20 ... 12
AWG number as coded connectable conductor cross section for auxiliary contacts	20 ... 12

Safety related data

product function — mirror contact according to IEC 60947-4-1	Yes; with 3RH29
product function — positively driven operation according to IEC 60947-5-1	No
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

Communication/ Protocol

product function bus communication
