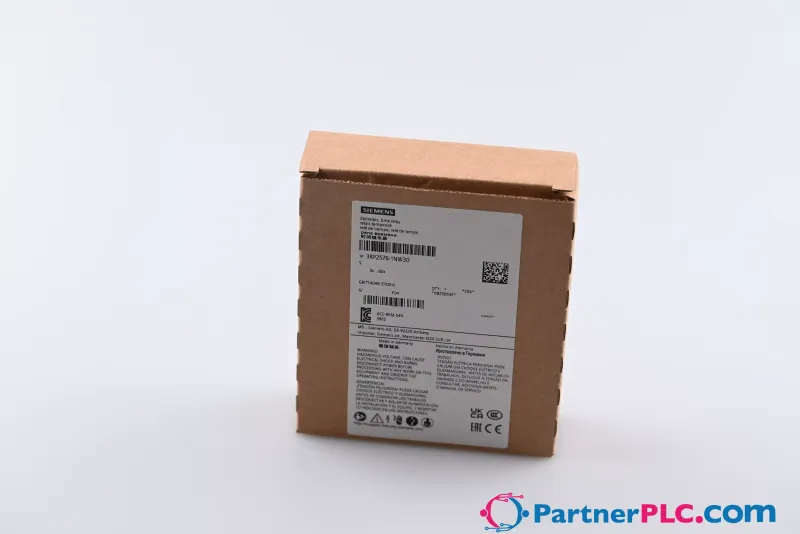

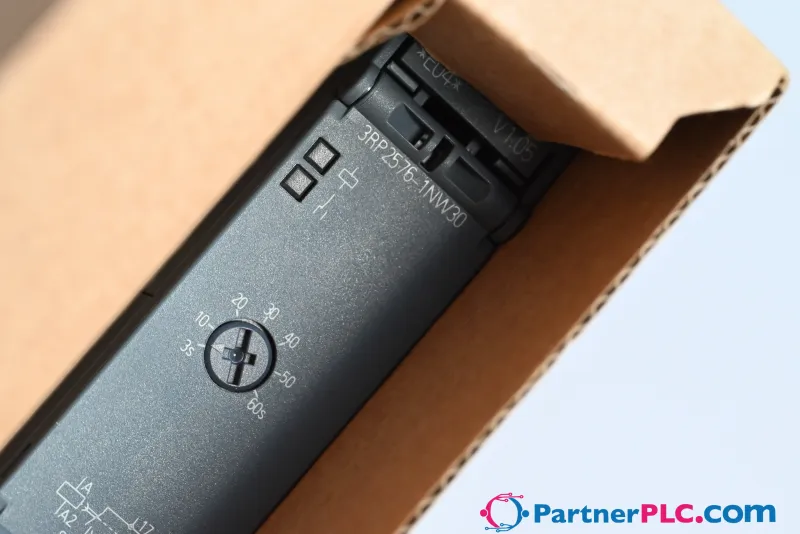

Siemens 3rp2576-1nw30

Circuit Protection & Switching

MPN: 3rp2576-1nw30
Category: Circuit Protection & Switching

€73.14excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3rp2576-1nw30?

Circuit Protection & Switching

Specifications

General technical data

Technical Product Detail Page	https://i.siemens.com/1P3RP2576-1NW30
product feature protective coating on printed-circuit board	No
product component — relay output	Yes
product component — semi-conductor output	No
product extension required remote control	No
product extension optional remote control	No
power loss [W] maximum	2 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value	300 V
test voltage for isolation test	2.5 kV
degree of pollution	3
surge voltage resistance rated value	4 000 V
shock resistance according to IEC 60068-2-27	11 g / 15 ms
vibration resistance according to IEC 60068-2-6	10 ... 55 Hz / 0.35 mm
mechanical service life (operating cycles) typical	10 000 000
electrical endurance (operating cycles) at AC-15 at 230 V typical	100 000
adjustable time	3 ... 60 s
relative setting accuracy relating to full-scale value	5 %; +/-
thermal current	5 A
recovery time	250 ms
reference code according to IEC 81346-2	K
relative repeat accuracy	1 %; +/-
influence of the surrounding temperature	1% in the whole temperature range to the set runtime
power supply influence	1% in the whole voltage range to the set runtime
Substance Prohibitance (day/month/year)	09/12/2014
SVHC substance name	2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1
Net Weight	0.142 kg

Control circuit/ Control

type of voltage of the control supply voltage	AC/DC
control supply voltage at AC — at 50 Hz rated value	12 ... 240 V
control supply voltage at AC — at 60 Hz rated value	12 ... 240 V
control supply voltage 1 at AC — at 50 Hz	12 ... 240 V
control supply voltage 1 at AC — at 60 Hz	12 ... 240 V
control supply voltage frequency 1	50 ... 60 Hz
control supply voltage at DC rated value	12 ... 240 V
control supply voltage 1 at DC	12 ... 240 V
operating range factor control supply voltage rated value at DC — initial value	0.8
operating range factor control supply voltage rated value at DC — full-scale value	1.1
operating range factor control supply voltage rated value at AC at 50 Hz — initial value	0.8
operating range factor control supply voltage rated value at AC at 50 Hz — full-scale value	1.1
operating range factor control supply voltage rated value at AC at 60 Hz — initial value	0.8
operating range factor control supply voltage rated value at AC at 60 Hz — full-scale value	1.1
inrush current peak — at 24 V	0.5 A
inrush current peak — at 240 V	5 A
duration of inrush current peak — at 24 V	0.4 ms
duration of inrush current peak — at 240 V	0.5 ms

Switching Function

switching function — ON-delay	No
switching function — ON-delay/instantaneous contact	No
switching function — passing make contact	No
switching function — passing make contact/instantaneous contact	No
switching function — OFF delay	No
switching function — flashing symmetrically with interval start/instantaneous	No
switching function — flashing symmetrically with interval start	No
switching function — flashing symmetrically with pulse start/instantaneous	No
switching function — flashing symmetrically with pulse start	No
switching function — flashing asymmetrically with interval start	No
switching function — flashing asymmetrically with pulse start	No
switching function — star-delta circuit with delay time	No
switching function — star-delta circuit	Yes
switching function with control signal — additive ON-delay	No
switching function with control signal — passing break contact	No
switching function with control signal — passing break contact/instantaneous	No
switching function with control signal — OFF delay	No
switching function with control signal — OFF delay/instantaneous	No
switching function with control signal — pulse delayed	No
switching function with control signal — pulse delayed/instantaneous	No
switching function with control signal — pulse-shaping	No
switching function with control signal — pulse-shaping/instantaneous	No
switching function with control signal — additive ON-delay/instantaneous	No
switching function with control signal — ON-delay/OFF-delay/instantaneous	No
switching function with control signal — passing make contact	No
switching function with control signal — passing make contact/instantaneous contact	No
switching function of interval relay with control signal — retrotriggerable with deactivated control signal/instantaneous contact	No
switching function of interval relay with control signal — retrotriggerable with switched-on control signal	No
switching function of interval relay with control signal — retrotriggerable with switched-on control signal/instantaneous contact	No
switching function of interval relay with control signal — retriggerable with deactivated control signal	No

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch required

fuse gL/gG: 4 A

Auxiliary circuit

material of switching contacts	AgSnO2
number of NC contacts — delayed switching	0
number of NC contacts — instantaneous contact	0
number of NO contacts — delayed switching	1
number of NO contacts — instantaneous contact	1
number of CO contacts — delayed switching	0
number of CO contacts — instantaneous contact	0
operational current of auxiliary contacts at AC-15 — at 24 V	3 A
operational current of auxiliary contacts at AC-15 — at 250 V	3 A
operational current of auxiliary contacts at DC-13 — at 24 V	1 A
operational current of auxiliary contacts at DC-13 — at 125 V	0.2 A
operational current of auxiliary contacts at DC-13 — at 250 V	0.1 A
operating frequency with 3RT2 contactor maximum	5 000 1/h
contact reliability of auxiliary contacts	one incorrect switching operation of 100 million switching operations (17 V, 5 mA)
contact rating of auxiliary contacts according to UL	R300 / B300
switching capacity current with inductive load	0.01 ... 3 A

Inputs/ Outputs

product function — at the relay outputs switchover delayed/without delay	No
product function — non-volatile	No
ampacity of the output relay at DC-13 — at 24 V	1 A
ampacity of the output relay at DC-13 — at 125 V	0.2 A

Electromagnetic compatibility

EMC emitted interference according to IEC 61812-1	ambience A (industrial sector)
EMC immunity according to IEC 61812-1	corresponds to degree of severity 3
conducted interference — due to burst according to IEC 61000-4-4	2 kV network connection / 1 kV control connection
conducted interference — due to conductor-earth surge according to IEC 61000-4-5	2 kV
conducted interference — due to conductor-conductor surge according to IEC 61000-4-5	1 kV
field-based interference according to IEC 61000-4-3	10 V/m
electrostatic discharge according to IEC 61000-4-2	4 kV contact discharge / 8 kV air discharge

Safety related data

category according to EN 954-1	none
protection class IP on the front according to IEC 60529	IP20
type of insulation	Basic insulation

Connections/ Terminals

product component removable terminal for auxiliary and control circuit	Yes
type of electrical connection	screw terminal
for auxiliary and control circuit	screw-type terminals
type of connectable conductor cross-sections — solid	1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)
type of connectable conductor cross-sections — finely stranded with core end processing	1x (0.5 ... 4 mm²), 2x (0.5 ... 1.5 mm²)
type of connectable conductor cross-sections — for AWG cables solid	1x (20 ... 12), 2x (20 ... 14)
connectable conductor cross-section — solid	0.5 ... 4 mm²
connectable conductor cross-section — finely stranded with core end processing	0.5 ... 4 mm²
AWG number as coded connectable conductor cross section — solid	20 ... 12
tightening torque	0.6 ... 0.8 N·m
design of the thread of the connection screw	M3

Installation/ mounting/ dimensions

mounting position	any
fastening method	screw and snap-on mounting onto 35 mm DIN rail
height	100 mm
width	22.5 mm
depth	90 mm
— forwards	0 mm
— backwards	0 mm
— upwards	0 mm
— downwards	0 mm
— at the side	0 mm
— forwards	0 mm
— backwards	0 mm
— upwards	0 mm
— at the side	0 mm
— downwards	0 mm
— forwards	0 mm
— backwards	0 mm
— upwards	0 mm
— downwards	0 mm
— at the side	0 mm

Ambient conditions

installation altitude at height above sea level maximum	2 000 m
ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-40 ... +85 °C
ambient temperature — during transport	-40 ... +85 °C
relative humidity during operation	10 ... 95 %

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3RP2576-1NW30PDF
