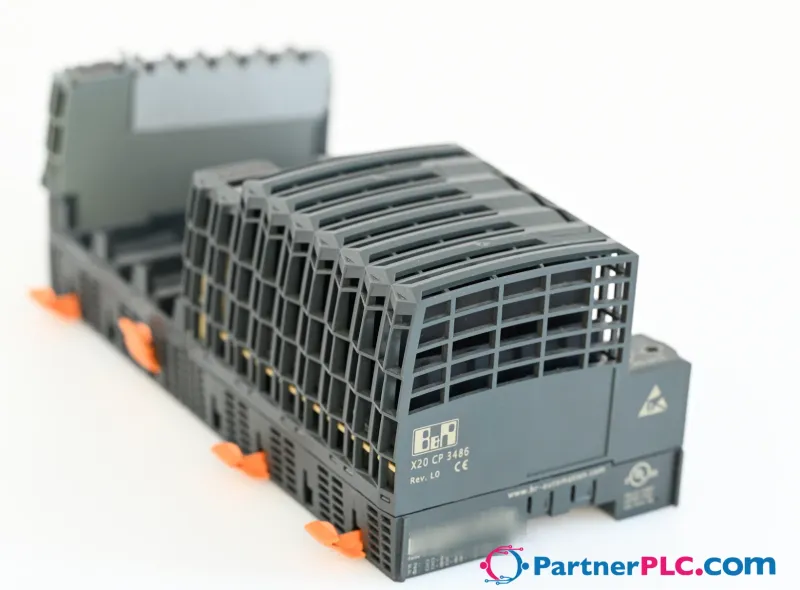

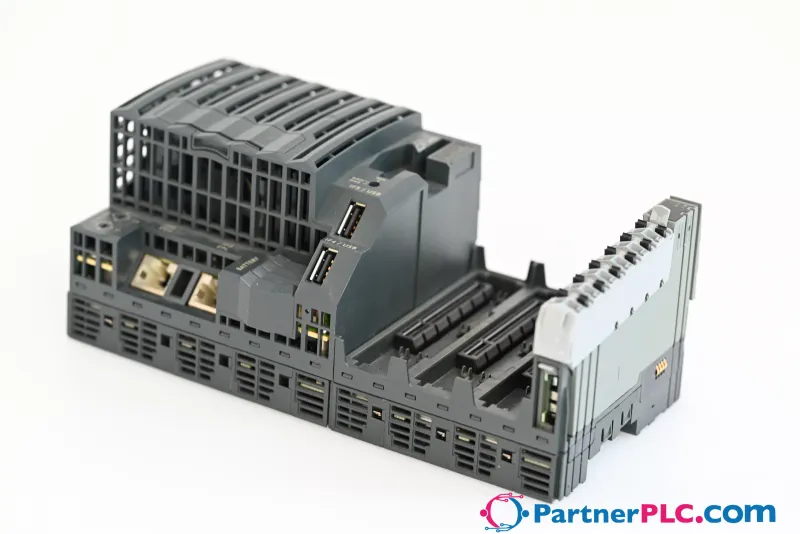

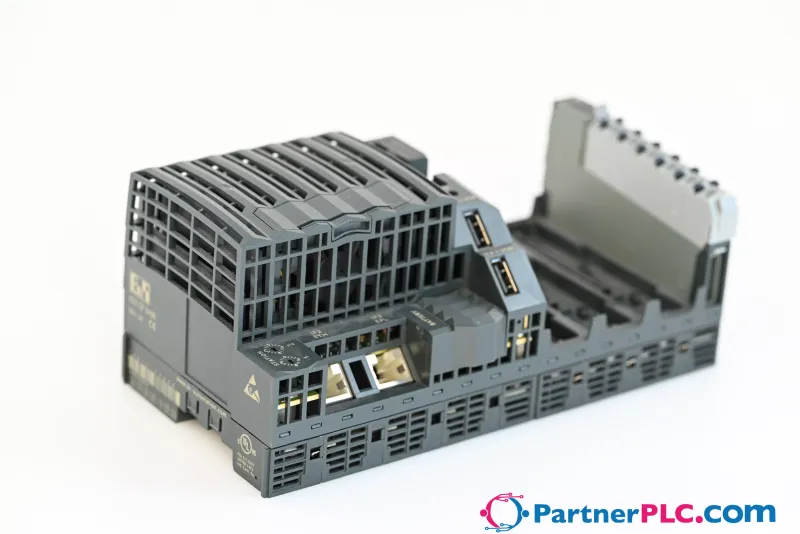

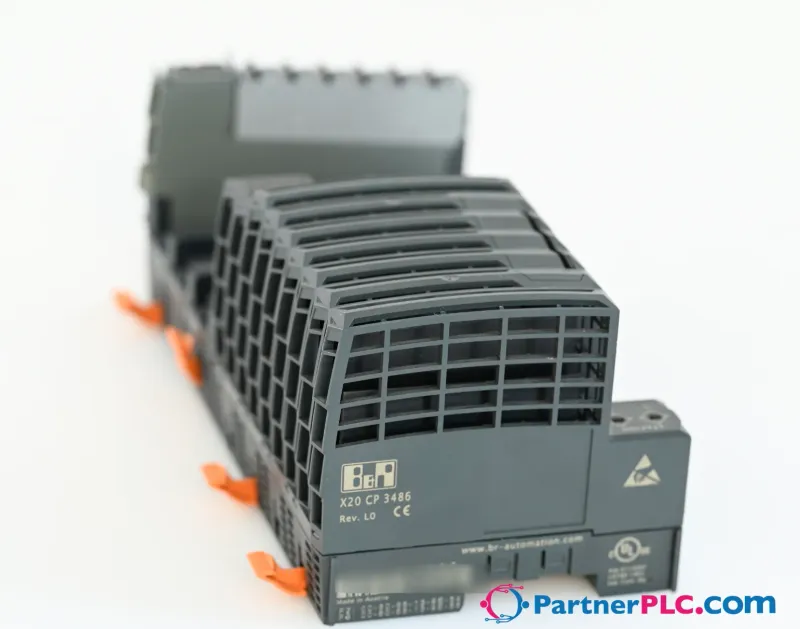

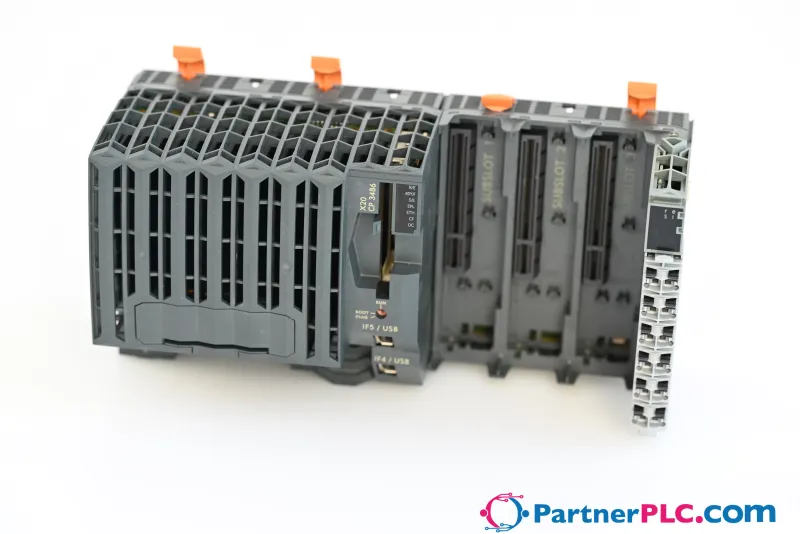

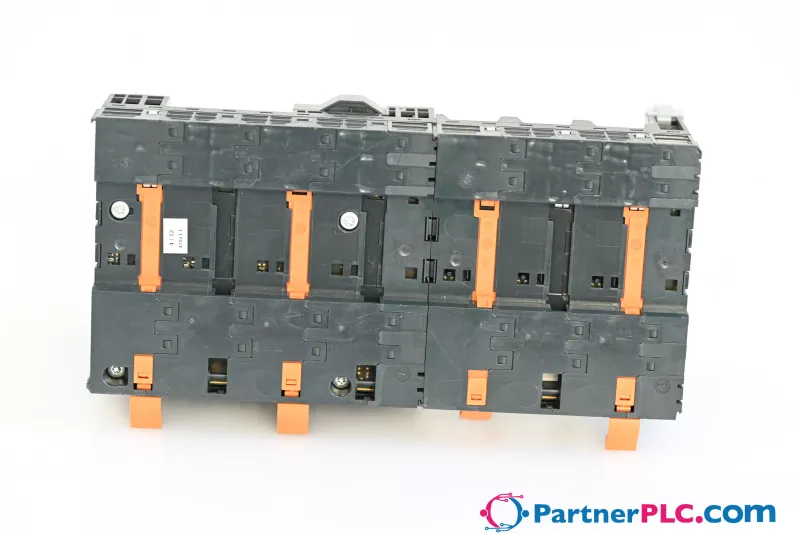

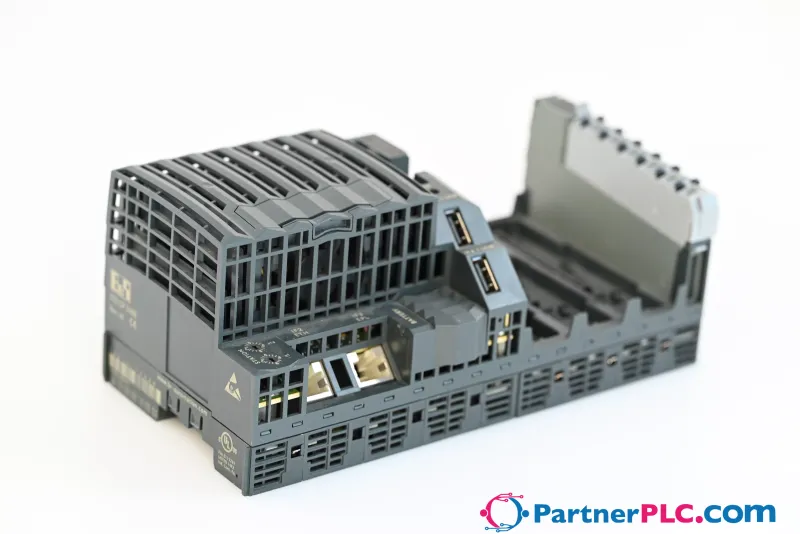

B&R X20CP3486
Intel Celeron 650 Performance with additional I/O processor Ethernet, POWERLINK and USB onboard 3 slots for...
- MPN
- X20CP3486
- Category
- CPU & Controllers
€1,800.94excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 3-month warranty
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R X20CP3486?
Intel Celeron 650 Performance with additional I/O processor Ethernet, POWERLINK and USB onboard 3 slots for modular interface expansion CompactFlash as removable application memory Fan can be exchanged from the outside, tool-free Extremely compact The X20CP3486 is a high-performance CPU for the X20 System. This CPU can be used anywhere from high-end applications in machine manufacturing to demanding tasks in process control. Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. There are also three multi-purpose slots for additional interface modules.
Specifications
Short description
| Interfaces | 1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link |
| System module | CPU |
General information
| Diagnostics – Battery | Yes, using LED status indicator and software |
| Diagnostics – CPU function | Yes, using LED status indicator |
| Diagnostics – CompactFlash | Yes, using LED status indicator |
| Diagnostics – Ethernet | Yes, using LED status indicator |
| Diagnostics – POWERLINK | Yes, using LED status indicator |
| Diagnostics – Overtemperature | Yes, using LED status indicator |
| Diagnostics – Fans | Yes, using software |
| Support – ACOPOS support | Yes |
| Support – Visual Components support | Yes |
| Internal power consumption of X2X Link and I/O power supply – Bus | 1.42 W (note: The specified values are maximum values. The exact calculation is available for download as a data sheet with the other module documentation on the B&R website.) |
| Internal power consumption of X2X Link and I/O power supply – Internal I/O | 0.6 W (note: The specified values are maximum values. The exact calculation is available for download as a data sheet with the other module documentation on the B&R website.) |
| Electrical isolation – IF1 - IF2 | Yes |
| Electrical isolation – IF1 - IF3 | Yes |
| Electrical isolation – IF1 - IF4 | No |
| Electrical isolation – IF1 - IF5 | No |
| Electrical isolation – IF1 - IF6 | Yes |
| Electrical isolation – IF2 - IF4 | Yes |
| Electrical isolation – IF2 - IF5 | Yes |
| Electrical isolation – IF3 - IF4 | Yes |
| Electrical isolation – IF3 - IF5 | Yes |
| Electrical isolation – IF4 - IF5 | No |
| Electrical isolation – IF4 - IF6 | Yes |
| Electrical isolation – IF5 - IF6 | Yes |
| Electrical isolation – PLC - IF1 | No |
| Electrical isolation – PLC - IF2 | Yes |
| Electrical isolation – PLC - IF3 | Yes |
| Electrical isolation – PLC - IF4 | No |
| Electrical isolation – PLC - IF5 | No |
| Electrical isolation – PLC - IF6 | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0x1F19 |
| Cooling | Fanless with derating (see operating conditions) ; Replaceable fan for full temperature range; Fan monitored |
| Status indicators | CPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery |
| Power consumption without memory card, interface module and USB | 13.5 W |
| Additional power dissipation caused by actuators (resistive) [W] | - |
CPU and X2X Link power supply
| Input voltage | 24 VDC -15% / +20% |
| Input current | Max. 2.2 A |
| Fuse | Integrated, cannot be replaced |
| Reverse polarity protection | Yes |
X2X Link power supply output
| Nominal output power | 7 W |
| Parallel connection | Yes (note: In parallel operation, it is only permitted to expect 75% of the nominal power. It is important to make sure that all power supply units operated in parallel are switched on and off at the same time.) |
| Redundant operation | Yes |
Input I/O power supply
| Input voltage | 24 VDC -15% / +20% |
| Fuse | Required line fuse: Max. 10 A, slow-blow |
Output I/O power supply
| Nominal output voltage | 24 VDC |
| Permissible contact load | 10 A |
Power supply - General information
| Diagnostics – RS232 data transfer | Yes, using LED status indicator |
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Overload | Yes, using LED status indicator and software |
| Electrical isolation – I/O supply - I/O power supply | No |
| Electrical isolation – CPU/X2X Link supply - CPU/X2X Link power supply | Yes |
| Status indicators | Overload, operating status, module status, RS232 data transfer |
Controller
| Processor – Type | Celeron 650 |
| Processor – L2 cache | 256 kB |
| Processor – L1 cache for data and program code | 2x 16 kB |
| Data buffering – Battery monitoring | Yes |
| Data buffering – Lithium battery | At least 3 years |
| Standard memory – RAM | 64 MB SDRAM |
| Standard memory – User RAM | 1 MB SRAM (note: Minus the set remanent variables.) |
| CompactFlash slot | 1 |
| Real-time clock | Nonvolatile, resolution 1 s, -20 to 20 ppm accuracy at 25°C |
| FPU | Yes |
| Integrated I/O processor | Processes I/O data points in the background |
| Modular interface slots | 3 |
| Remanent variables | Max. 256 kB (note: Configurable in Automation Studio.) |
| Shortest task class cycle time | 200 µs |
| Typical instruction cycle time | 0.0034 µs |
Interfaces
| Interface IF1 – Type | RS232 |
| Interface IF1 – Variant | Connection via 12-pin terminal block TB12 |
| Interface IF1 – Transfer rate | Max. 115.2 kbit/s |
| Interface IF2 – Type | Ethernet |
| Interface IF2 – Variant | Shielded RJ45 |
| Interface IF2 – Line length | Max. 100 m between 2 stations (segment length) |
| Interface IF2 – Transfer rate | 10/100 Mbit/s |
| Interface IF3 – Fieldbus | POWERLINK V1/V2 |
| Interface IF3 – Type | 100BASE-T (ANSI/IEEE 802.3) |
| Interface IF3 – Variant | Shielded RJ45 |
| Interface IF3 – Line length | Max. 100 m between 2 stations (segment length) |
| Interface IF3 – Transfer rate | 100 Mbit/s |
| Interface IF4 – Type | USB 1.1 |
| Interface IF4 – Variant | Type A |
| Interface IF4 – Max. output current | 0.5 A |
| Interface IF5 – Type | USB 1.1 |
| Interface IF5 – Variant | Type A |
| Interface IF5 – Max. output current | 0.5 A |
| Interface IF6 – Type | X2X Link master |
| Interface IF6 – Quantity | 1 |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | 0 to 55°C, fanless: 0 to 45°C |
| Temperature – Vertical mounting orientation | 0 to 55°C, fanless not permitted |
| Temperature – Derating | - |
| Temperature – Storage | -25 to 70°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Dimensions – Width | 200 mm |
| Dimensions – Height | 99 mm |
| Dimensions – Depth | 85 mm |
| Note | Order application memory (CompactFlash) separately.; Backup battery included in delivery; X20 end cover plate (right) included in delivery; 12-pin X20 terminal block included in delivery; Interface module slot covers included in delivery |
Accessories
Required accessories (order separately)
| 5CFCRD.2048-06 | CompactFlash cards — 2 GBSLC flash CompactFlash card |
| 0CFCRD.8192E.02 | CompactFlash cards — CompactFlash 8 GB extended temp. |
| 0CFCRD.4096E.02 | CompactFlash cards — CompactFlash 4096 MB extended temp. |
| 0CFCRD.2048E.02 | CompactFlash cards — CompactFlash 2048 MB extended temp. |
| 0CFCRD.1024E.02 | CompactFlash cards — CompactFlash 1024 MB extended temp. |
| 0CFCRD.0512E.02 | CompactFlash cards — CompactFlash 512 MB extended temp. |
| 0CFCRD.016GE.02 | CompactFlash cards — CompactFlash 16 GB extended temp. |
Optional accessories (3)
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
| X20AC0EF1 | Miscellaneous — X20 CPU removable fan |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (11)
- 2226379 CSA Certificate of Compliance X20 X67
- 64331_A1 BV Certificate of Compliance X20
- ABS Certificate of Product Design Assessment - X20 IO Series
- CCS Type Approval Certificate - X20
- E115267 UL Certificate of Compliance X20
- FTZU 09 ATEX 0083X
- KR Type Approval Certificate MIL39390-AC003 (X20 System)
- Lloyds Register (X20 only)
- RINA Type Approval Certificate - X20 / Power Panel T30
- TAA00000BJ DNV Type Approval Certificate X20
- X20, X67 KC certificates
