B&R X20BR9300

X2X Link bus receiver Feed for X2X Link and internal I/O supply Electrical isolation of feed and X2X Link…

MPN: X20BR9300
Category: Communication Modules

€30.74excl. VAT & shipping

In stock — 7 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

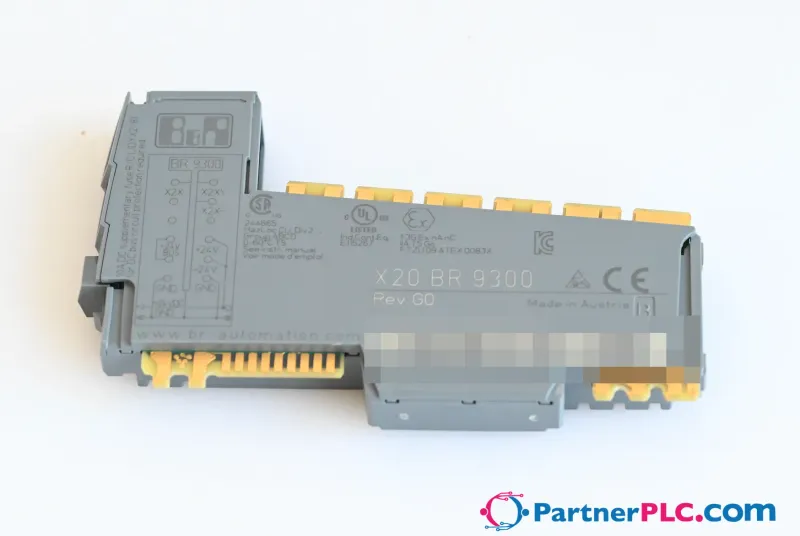

What is the B&R X20BR9300?

X2X Link bus receiver Feed for X2X Link and internal I/O supply Electrical isolation of feed and X2X Link supply Redundancy of X2X Link supply possible by operating multiple supply modules simultaneously Operation only on the slot to the far left The bus receiver is used to connect the X20 System to the X2X Link. The module is equipped with a feed for the X2X Link as well as the internal I/O supply.

Specifications

Short description

Bus receiver

X2X Link bus receiver with supply for I/O and bus

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Overload	Yes, using LED status indicator and software
Diagnostics – X2X bus function	Yes, using LED status indicator
Power consumption – Internal I/O	0.6 W (note: The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 System user's manual)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0x1BC1
Status indicators	X2X bus function, overload, operating state, module status
Power consumption for X2X Link power supply	1.62 W (note: The specified values are maximum values. For examples of the exact calculation, see section "Mechanical and electrical configuration" in the X20 System user's manual)
Additional power dissipation caused by actuators (resistive) [W]	-

X2X Link power supply input

Input voltage	24 VDC -15% / +20%
Input current	Max. 0.7 A
Fuse	Integrated, cannot be replaced
Reverse polarity protection	Yes

X2X Link power supply output

Nominal output power	7 W
Parallel connection	Yes (note: In parallel operation, it is only permitted to expect 75% of the nominal power. It is important to ensure that all power supply units operated in parallel are switched on and off simultaneously.)
Redundant operation	Yes
Overload characteristics	Short-circuit proof, temporary overload

Input I/O power supply

Input voltage	24 VDC -15% / +20%
Fuse	Required line fuse: Max. 10 A slow-blow
Reverse polarity protection	No

Output I/O power supply

Nominal output voltage	24 VDC
Behavior on short circuit	Required line fuse
Permissible contact load	10 A

Electrical properties

Electrical isolation

X2X Link supply isolated from X2X Link power supply ; I/O supply not isolated from I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately.; Order 1x power supply bus module X20BM01 separately
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM05	Bus modules — The bus module is the base for all X20 supply modules; For creating voltage groups; The internal I/O supply is isolated to the left; Manual…
X20BM01	Bus modules — Basis for all power supply modules; For creating potential groups; The internal I/O power supply is interrupted to the left. The bus module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Optional accessories (2)

X67CA0X99.5000	X2X Link Cable — Cable for custom assembly, 500 m
X67CA0X99.1000	X2X Link Cable — Cable for custom assembly, 100 m
