Home / Siemens / Circuit Protection & Switching / Siemens 5ST3010

Siemens

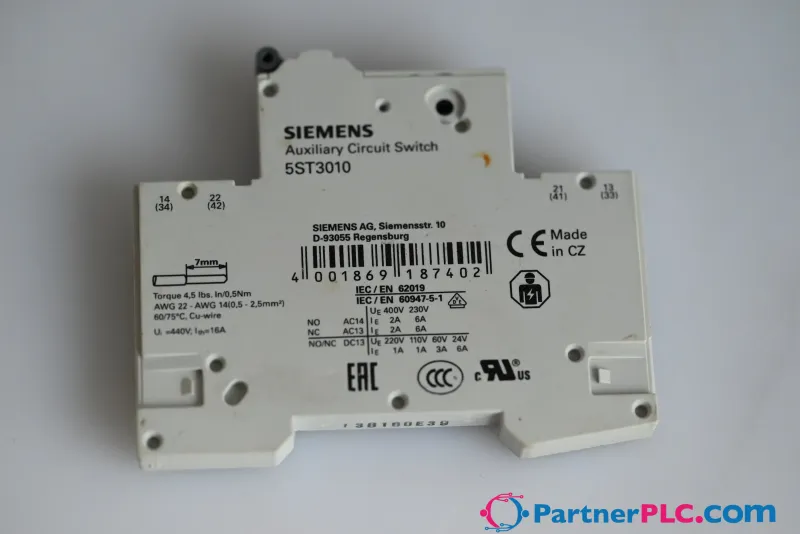

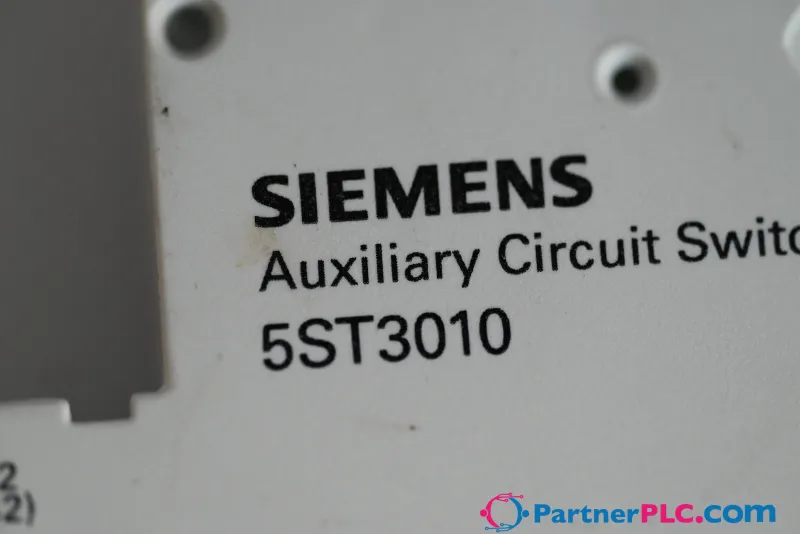

Siemens 5ST3010

Circuit Protection & Switching

MPN: 5ST3010
Category: Circuit Protection & Switching

€2.12excl. VAT & shipping

In stock — 4 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 5ST3010?

Circuit Protection & Switching

Specifications

Model

Technical Product Detail Page	https://i.siemens.com/1P5ST3010
product brand name	SENTRON
product designation	auxiliary switches
design of the product	Mountable
design of the product factory mounted	No
electrical endurance (operating cycles) typical	10 000

Voltage

insulation voltage rated value	440 V
surge voltage resistance rated value	4 kV

Current

operational current at DC rated value

0.01 A

Supply voltage

supply voltage at DC rated value — minimum	12 V
operating voltage — rated value	400 V
operating voltage — at AC rated value minimum	12 V
operating voltage — at DC rated value minimum	12 V
protection class IP	IP20

Control current

type of voltage of control voltage

AC/DC

Product details

product component — auxiliary switch	Yes
number of fault signal contacts	0
number of NC contacts	1
number of NO contacts	1
number of CO contacts	0
product extension can be mounted	Universal
product extension	auxiliary switch
product function test function for fault current trip	No

Connections

connectable conductor cross-section — minimum	0.5 mm²
connectable conductor cross-section — maximum	2.5 mm²
AWG number as coded connectable conductor cross section — minimum	24
AWG number as coded connectable conductor cross section — maximum	12
tightening torque with screw-type terminals — maximum	0.5 N·m

Mechanical Design

height	90 mm
width	9 mm
depth	70 mm
number of modular width units	1
Net Weight	49.7 g

Environmental conditions

standard	IEC/EN60947-5-1; IEC/EN62019
ambient temperature during operation — minimum	-25 °C
ambient temperature during operation — maximum	55 °C
ambient temperature during storage minimum	-40 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 5ST3010PDF

5ST3010: frequently asked questions

When can 5ST3010 be shipped?

5ST3010 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 5ST3010 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 5ST3010.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ST3010, subject to availability and destination.
