B&R

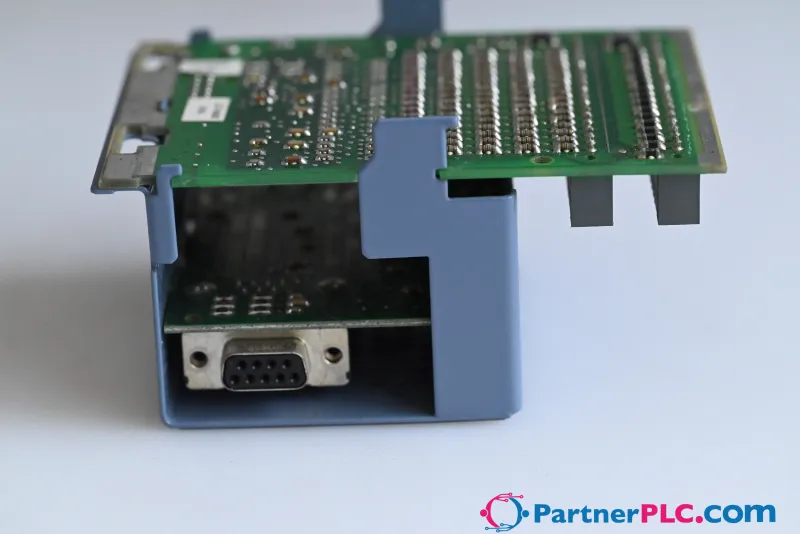

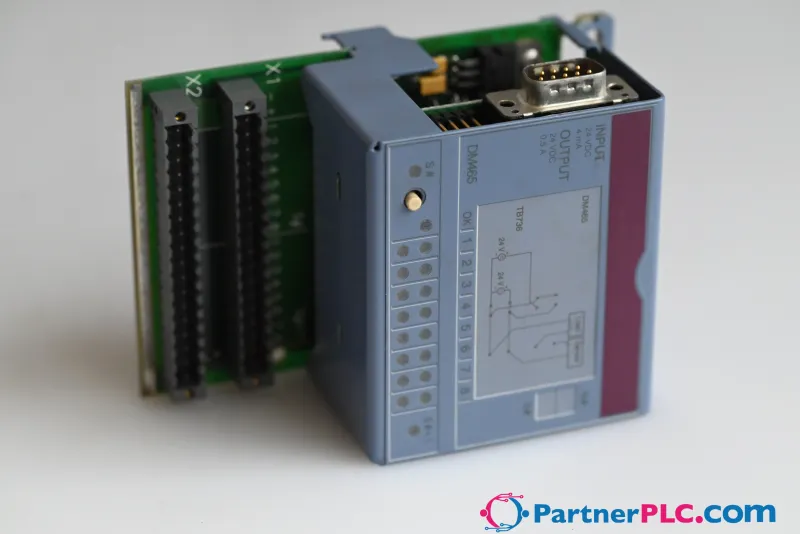

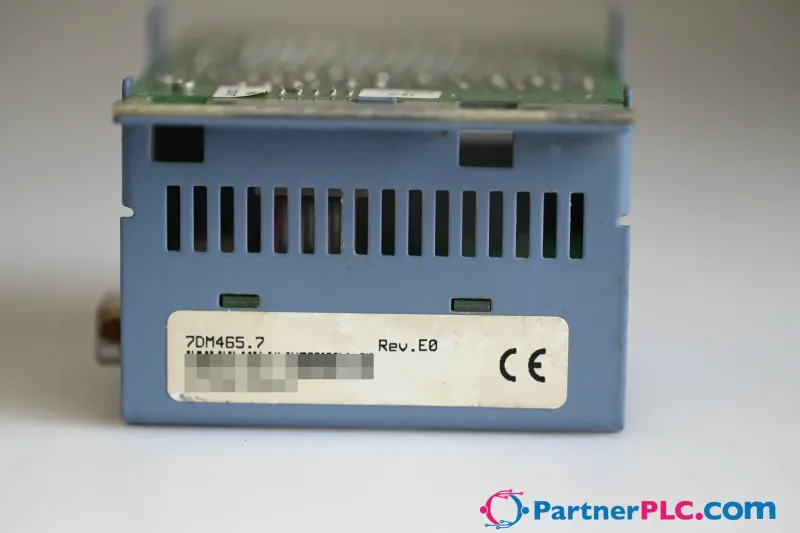

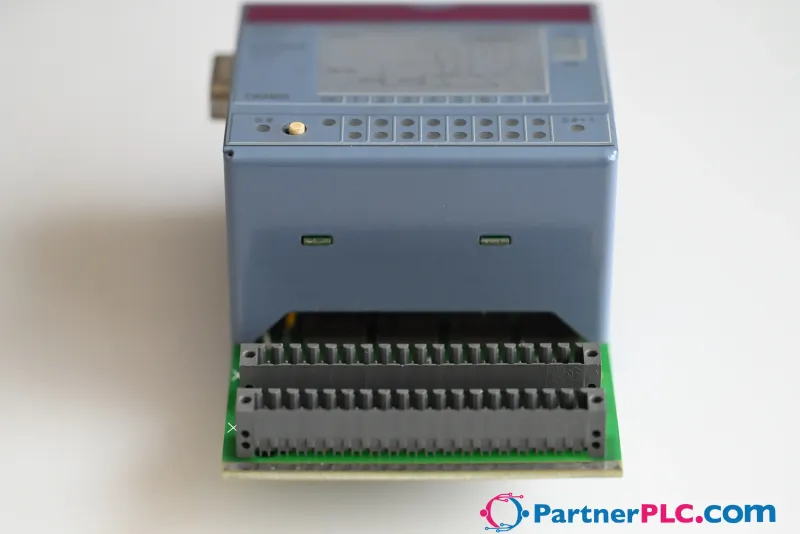

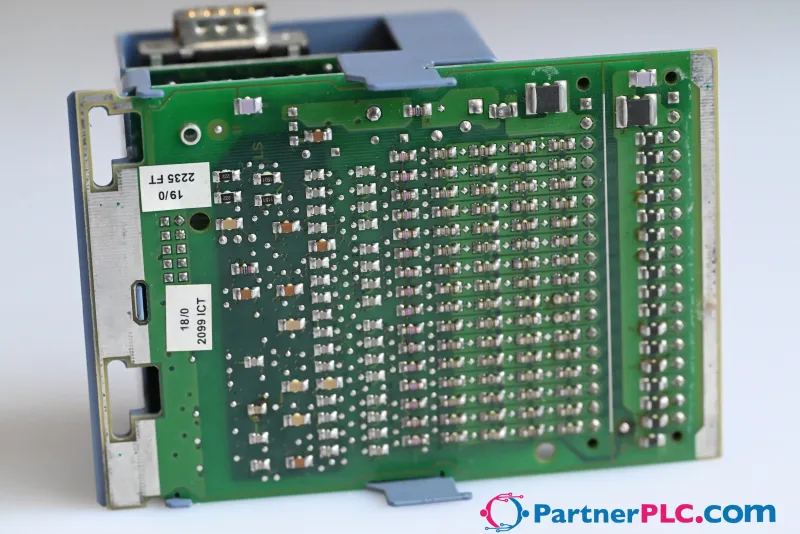

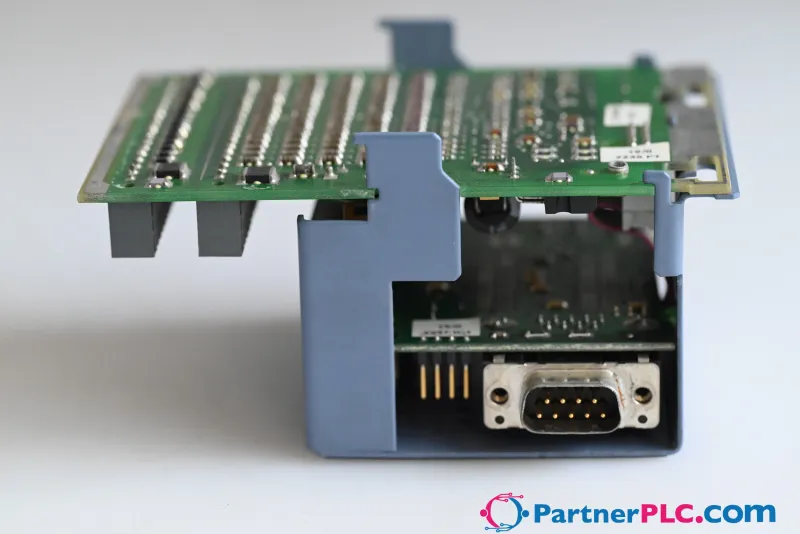

B&R 7DM465.7

Digital I/O Module

MPN: 7DM465.7
Category: Digital I/O Modules

€47.70excl. VAT & shipping

In stock — 4 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 7DM465.7?

Digital I/O Module

Specifications

General information

C-UL-US listed	In preparation
B&R ID code	$F7
Module type	B&R 2003 I/O module
Voltage and output monitoring (LED: OK)	Yes Supply voltage >18 V, outputs OK
Power consumption	Max. 1.1 W
Wiring	Sink
Input voltage – Minimum	18 VDC
Input voltage – Rated	24 VDC
Input voltage – Maximum	30 VDC
Switching threshold – Low	<5 V
Switching threshold – High	>15 V
Input delay	Max. 1 ms
Input current at rated voltage	Approx. 4 mA
Electrical isolation – Input - PLC	Yes
Electrical isolation – Input - Output	No
Type	Highside driver IC (transistor)
Switching voltage – Minimum	18 VDC
Switching voltage – Rated	24 VDC
Switching voltage – Maximum	30 VDC
Continuous current per – Output	Max. 0.5 A
Continuous current per – Module	Max. 8 A
Leakage current when switched off	12 µA
Overload protection	Yes
Switching on after overload cutoff	Automatically within seconds (depends on the module temperature)
Permanent short circuit current	Typ. 4 A
Internal protective circuit	Yes
Braking voltage when switching off inductive loads	47 V
Switching delay log. 0 - log. 1 log. 1 - log. 0	Max. 450 µs Max. 450 µs
Electrical isolation – Output - PLC	Yes
Electrical isolation – Output - Input	No

Mechanical characteristics

Dimensions

B&R 2003 single-width

Accessories

Required accessories (order separately)

7TB718.91	Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB718.9	Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…

Optional accessories (5)

7TB772.91	Terminal blocks — 2003 terminal block, 72-pin, cage clamp terminal block
7TB754.91	Terminal blocks — 2003 terminal block, 54-pin, cage clamp terminal block
7TB754.9	Terminal blocks — 2003 terminal block, 54-pin, screw clamp terminal block
7TB736.91	Terminal blocks — 2003 terminal block, 36-pin, cage clamp terminal block
7TB736.9	Terminal blocks — 2003 terminal block, 36-pin, screw clamp terminal block

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 7DM465.7PDF · 1 MB · 1.20 (11/30/2007) - EN
