Home / B&R / B&R X20CP1486 Used Rev. L0
Used

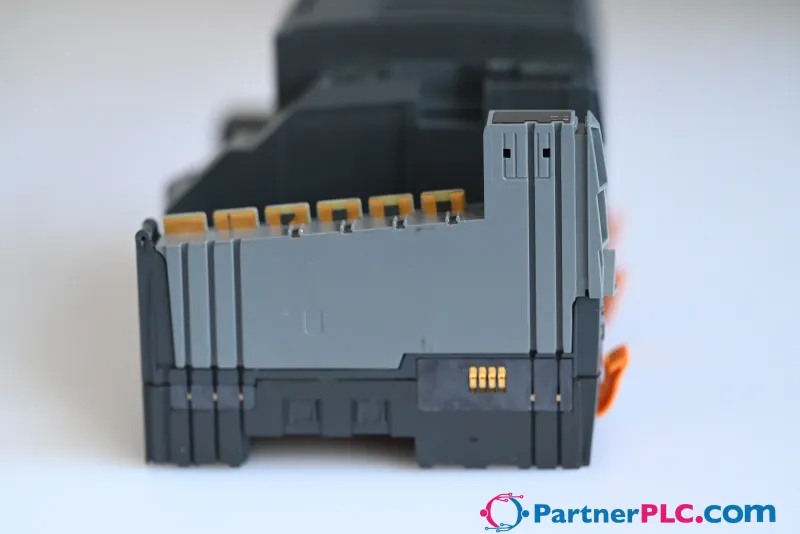

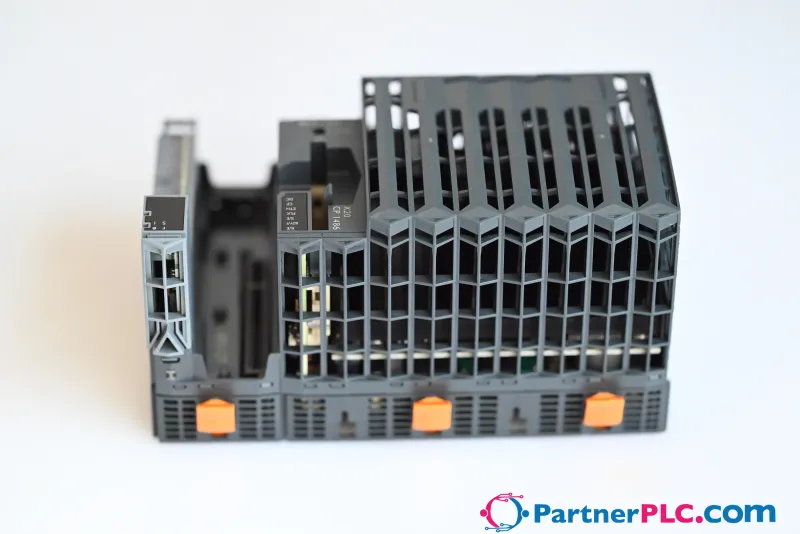

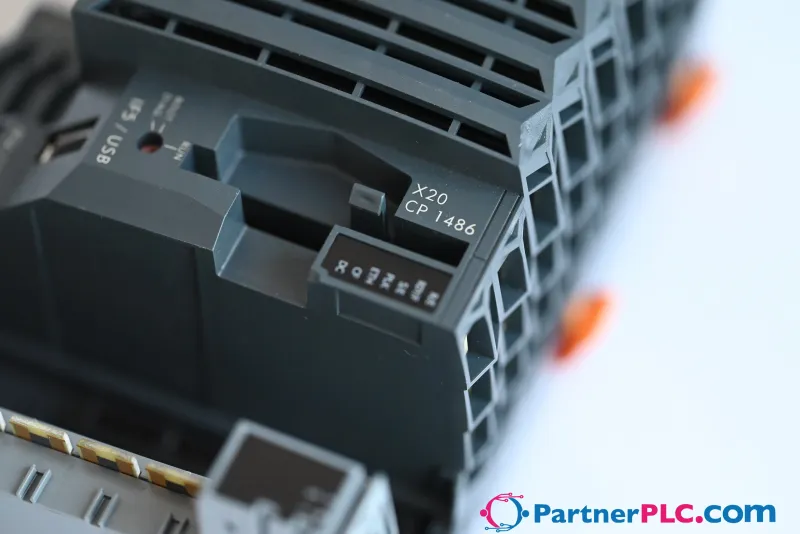

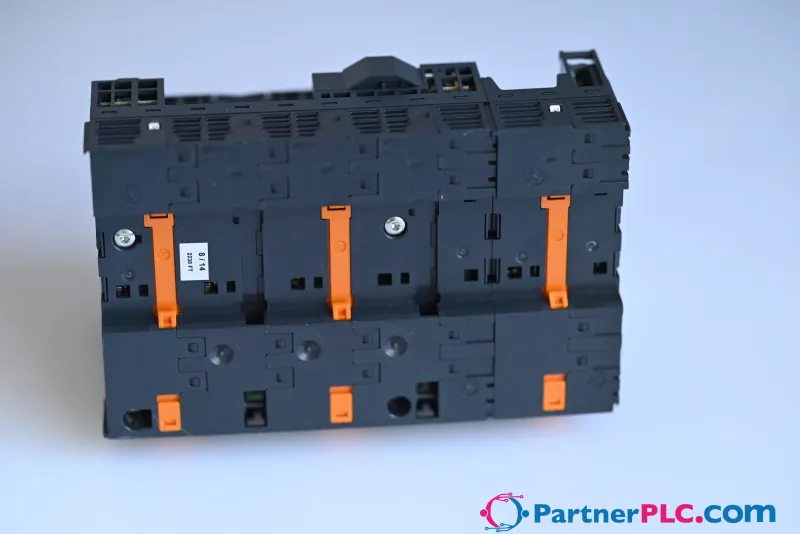

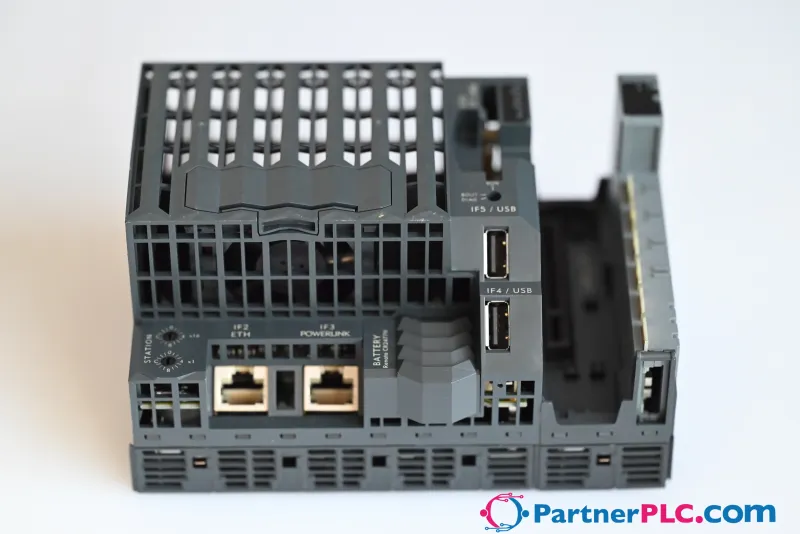

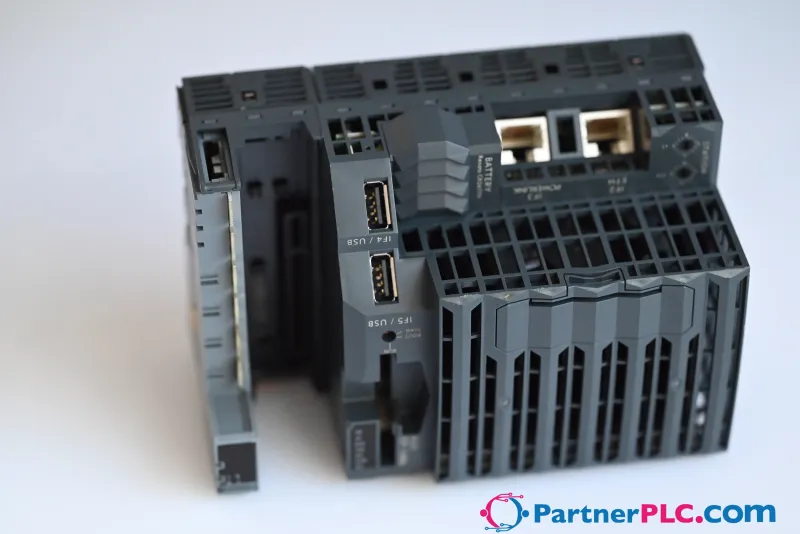

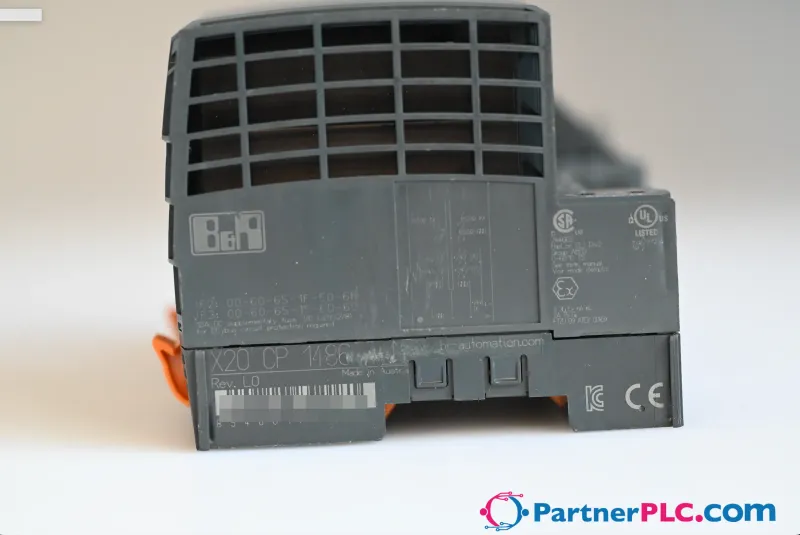

B&R X20CP1486 Used Rev. L0

MPN: X20CP1486 · Brand: B&R
€952.94 excl. VAT & shipping
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

3-month warranty
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityIn stock — 1 available
CategoryCPU & Controllers
Warranty3-month
Weight0.7 kg
Country of originAT
DatasheetManufacturer datasheet ↗

Shipping & availability

When can X20CP1486 be shipped?

X20CP1486 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X20CP1486 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20CP1486.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CP1486, subject to availability and destination.

• Intel Celeron 650 Performance with additional I/O processor

• Ethernet, POWERLINK and USB onboard

• 1 slot for modular interface expansion

• CompactFlash as removable application memory

• Fan can be exchanged from the outside, tool-free

• Extremely compact

The X20CP1486 is a high-performance CPU for the X20 System. This CPU can be used anywhere from high-end applications in machine manufacturing to demanding tasks in process control.

Ethernet and USB are onboard. In addition, the CPU has a POWERLINK connection for real-time communication. The only differences from the X20CP3486 are that the X20CP1486 only has one slot for interface modules and a smaller width.

Accessories

Required accessories (order separately)

5CFCRD.2048-06CompactFlash cards — 2 GBSLC flash CompactFlash card
0CFCRD.8192E.02CompactFlash cards — CompactFlash 8 GB extended temp.
0CFCRD.4096E.02CompactFlash cards — CompactFlash 4096 MB extended temp.
0CFCRD.2048E.02CompactFlash cards — CompactFlash 2048 MB extended temp.
0CFCRD.1024E.02CompactFlash cards — CompactFlash 1024 MB extended temp.
0CFCRD.0512E.02CompactFlash cards — CompactFlash 512 MB extended temp.
0CFCRD.016GE.02CompactFlash cards — CompactFlash 16 GB extended temp.
Optional accessories (3)
4A0006.00-000Batteries — Lithium battery, 3 V / 950 mAh, button cell
0AC201.91Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell
X20AC0EF1Miscellaneous — X20 CPU removable fan

Specifications

Short description

Interfaces1x RS232, 1x Ethernet, 1x POWERLINK V1/V2, 2x USB, 1x X2X Link
System moduleCPU

General information

Diagnostics – BatteryYes, using LED status indicator and software
Diagnostics – CPU functionYes, using LED status indicator
Diagnostics – CompactFlashYes, using LED status indicator
Diagnostics – EthernetYes, using LED status indicator
Diagnostics – POWERLINKYes, using LED status indicator
Diagnostics – OvertemperatureYes, using LED status indicator
Support – ACOPOS supportYes
Support – Visual Components supportYes
Internal power consumption of X2X Link and I/O power supply " data-placement="top" data-html="true" data-container="body" data-content="The specified values are maximum values. The exact calculation is available for download as a data sheet with the other module documentation on the B&R website."> – Bus1.42 W
Internal power consumption of X2X Link and I/O power supply " data-placement="top" data-html="true" data-container="body" data-content="The specified values are maximum values. The exact calculation is available for download as a data sheet with the other module documentation on the B&R website."> – Internal I/O0.6 W
Electrical isolation – IF1 - IF2Yes
Electrical isolation – IF1 - IF3Yes
Electrical isolation – IF1 - IF4No
Electrical isolation – IF1 - IF5No
Electrical isolation – IF1 - IF6Yes
Electrical isolation – IF2 - IF4Yes
Electrical isolation – IF2 - IF5Yes
Electrical isolation – IF3 - IF4Yes
Electrical isolation – IF3 - IF5Yes
Electrical isolation – IF4 - IF5No
Electrical isolation – IF4 - IF6Yes
Electrical isolation – IF5 - IF6Yes
Electrical isolation – PLC - IF1No
Electrical isolation – PLC - IF2Yes
Electrical isolation – PLC - IF3Yes
Electrical isolation – PLC - IF4No
Electrical isolation – PLC - IF5No
Electrical isolation – PLC - IF6Yes
Certifications – CEYes
Certifications – UKCAYes
Certifications – ATEXZone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – ULcULus E115267; Industrial control equipment
Certifications – HazLoccCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNVTemperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCSYes
Certifications – LRENV1
Certifications – KRYes
Certifications – ABSYes
Certifications – BVEC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KCYes
B&R ID code0x2164
CoolingFanless with derating (see operating conditions) ; Replaceable fan for full temperature range; Fan monitored
Status indicatorsCPU function, overtemperature, Ethernet, POWERLINK, CompactFlash, battery
Diagnostics - FanYes, using software
Power consumption without memory card, interface module and USB13.5 W
Additional power dissipation caused by actuators (resistive) [W]-

CPU and X2X Link power supply

Input voltage24 VDC -15% / +20%
Input currentMax. 2.2 A
FuseIntegrated, cannot be replaced
Reverse polarity protectionYes

X2X Link power supply output

Nominal output power7 W
Parallel connectionYes " data-placement="top" data-html="true" data-container="body" data-content="In parallel operation, it is only permitted to expect 75% of the nominal power. It is important to make sure that all power supply units operated in parallel are switched on and off at the same time.">
Redundant operationYes

Input I/O power supply

Input voltage24 VDC -15% / +20%
FuseRequired line fuse: Max. 10 A, slow-blow

Output I/O power supply

Nominal output voltage24 VDC
Permissible contact load10 A

Power supply - General information

Diagnostics – RS232 data transferYes, using LED status indicator
Diagnostics – Module run/errorYes, using LED status indicator and software
Diagnostics – OverloadYes, using LED status indicator and software
Electrical isolation – I/O supply - I/O power supplyNo
Electrical isolation – CPU/X2X Link supply - CPU/X2X Link power supplyYes
Status indicatorsOverload, operating status, module status, RS232 data transfer

Controller

Processor – TypeCeleron 650
Processor – L2 cache256 kB
Processor – L1 cache for data and program code2x 16 kB
Data buffering – Battery monitoringYes
Data buffering – Lithium batteryAt least 3 years
Standard memory – RAM64 MB SDRAM
Standard memory – User RAM1 MB SRAM " data-placement="top" data-html="true" data-container="body" data-content="Minus the set remanent variables.">
CompactFlash slot1
Real-time clockNonvolatile, resolution 1 s, -20 to 20 ppm accuracy at 25°C
FPUYes
Integrated I/O processorProcesses I/O data points in the background
Modular interface slots1
Remanent variablesMax. 256 kB " data-placement="top" data-html="true" data-container="body" data-content="Configurable in Automation Studio.">
Shortest task class cycle time200 µs
Typical instruction cycle time0.0034 µs

Interfaces

Interface IF1 – TypeRS232
Interface IF1 – VariantConnection via 12-pin terminal block TB12
Interface IF1 – Transfer rateMax. 115.2 kbit/s
Interface IF2 – TypeEthernet
Interface IF2 – VariantShielded RJ45
Interface IF2 – Line lengthMax. 100 m between 2 stations (segment length)
Interface IF2 – Transfer rate10/100 Mbit/s
Interface IF3 – FieldbusPOWERLINK V1/V2
Interface IF3 – Type100BASE-T (ANSI/IEEE 802.3)
Interface IF3 – VariantShielded RJ45
Interface IF3 – Line lengthMax. 100 m between 2 stations (segment length)
Interface IF3 – Transfer rate100 Mbit/s
Interface IF4 – TypeUSB 1.1
Interface IF4 – VariantType A
Interface IF4 – Max. output current0.5 A
Interface IF5 – TypeUSB 1.1
Interface IF5 – VariantType A
Interface IF5 – Max. output current0.5 A
Interface IF6 – TypeX2X Link master
Interface IF6 – Quantity1

Operating conditions

Mounting orientation – HorizontalYes
Mounting orientation – VerticalYes
Installation elevation above sea level – 0 to 2000 mNo limitation
Installation elevation above sea level – >2000 mReduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529IP20

Ambient conditions

Temperature – Horizontal mounting orientation0 to 55°C, fanless: 0 to 45°C
Temperature – Vertical mounting orientation0 to 55°C, fanless not permitted
Temperature – Derating-
Temperature – Storage-25 to 70°C
Temperature – Transport-25 to 70°C
Relative humidity – Operation5 to 95%, non-condensing
Relative humidity – Storage5 to 95%, non-condensing
Relative humidity – Transport5 to 95%, non-condensing

Mechanical properties

Dimensions – Width150 mm
Dimensions – Height99 mm
Dimensions – Depth85 mm
NoteOrder application memory (CompactFlash) separately.; Backup battery included in delivery; X20 end cover plate (right) included in delivery; 12-pin X20 terminal block included in delivery; Interface module slot covers included in delivery

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet X20CP1486PDF · 4 MB · 2.16 (02/04/2013) - EN
X20 Package leaflet ATEX/CSAPDF · 2 MB · 1.4 (09/17/2024)

CAD & dimension drawings

3D File DXF/STEP X20 CPU modules X20CP1x8xZIP · 7 MB · 1.20 (02/27/2025)
Dimensions PDF X20 CPU 1-Slot X20CP148xPDF · 5 KB · 1.0 (05/23/2006)
