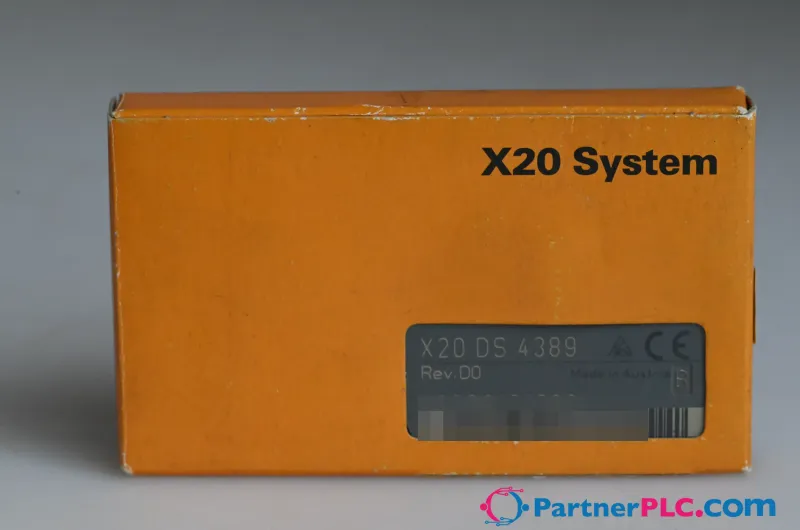

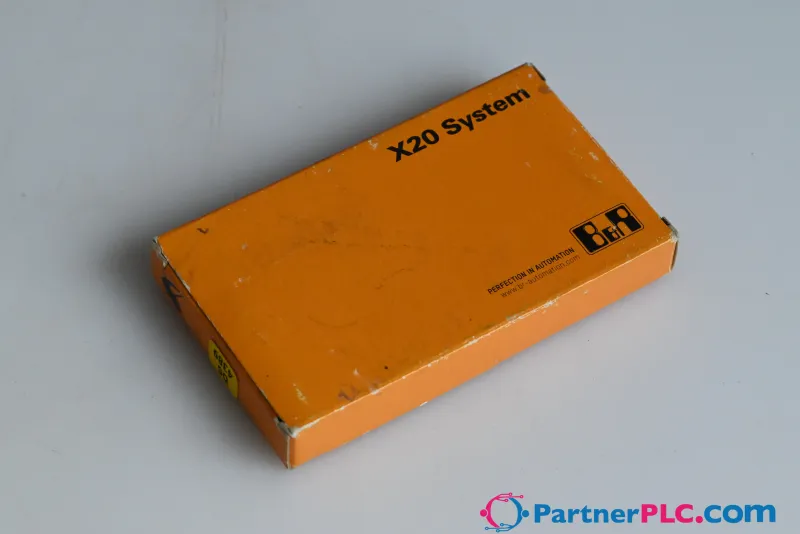

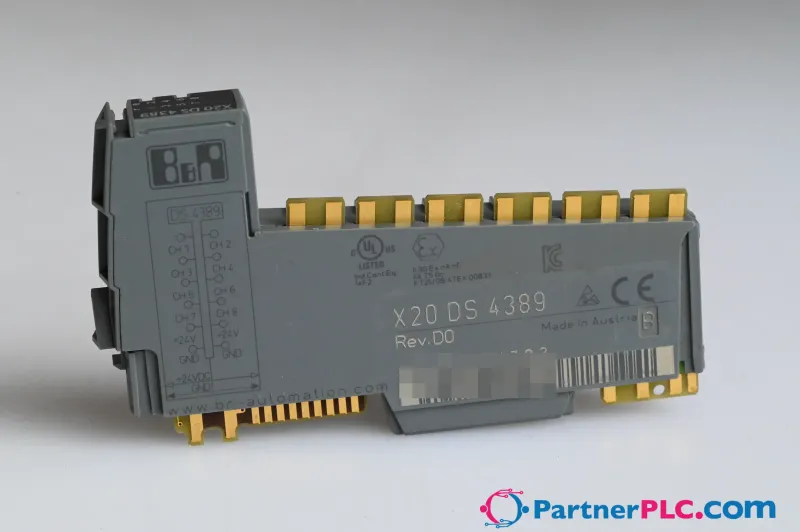

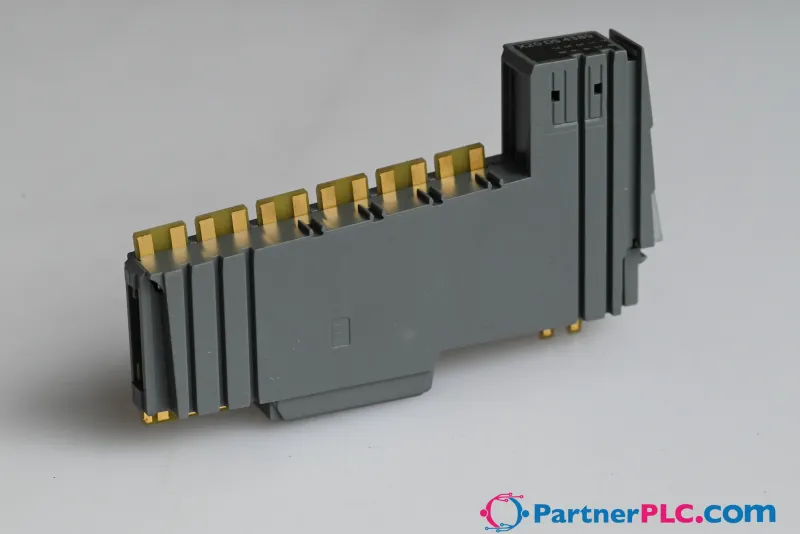

B&R X20DS4389 New Rev. D0 – 4 digital input channels; 4 digital channels

MPN: X20DS4389 · Brand: B&R
€291.50 excl. VAT & shipping
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityIn stock — 1 available
CategoryDigital I/O Modules
Warranty12-month
Weight0.02 kg
Country of originAT
DatasheetManufacturer datasheet ↗

Shipping & availability

When can X20DS4389 be shipped?

X20DS4389 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X20DS4389 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20DS4389.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20DS4389, subject to availability and destination.

• 4 digital input channels

• 4 digital channels, configurable as inputs or outputs

• 4 edge detection units with timestamp function (each usable as pulse duration or differential time measurement, 4 history elements per unit)

• 4x precise edge generation down to the µs (up to four edges per unit in each case)

• 4x oversampling (input and output signal)

• 24 VDC and GND for sensor/actuator supply

• NetTime timestamp: Input data, edge detection, edge generation

This module is a digital signal processor module that is used for detecting and evaluating input edges and for creating edges.

An additional essential feature is the module's integrated timestamp function. This allows fast input edges such as registration marks to be detected independently of the system's X2X Link cycle time and provided with a precise input stamp. In the other direction, the module sets outputs at exactly specified times. This is done with a resolution up to 125 ns.

In oversampling mode, the module acquires very short input patters whose low or high phases are shorter than the X2X Link cycle time. Similarly, output patterns (e.g. drum sequencers) can also be output with extremely short high/low times. Oversampling can take place with a scan rate of up to 25 μs.

If necessary, up to 4 events per edge detection unit can be stored in a buffer (history elements).

Other functions include pulse duration measuring and differential time measuring.

Accessories

Required accessories (order separately)

X20BM15Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB12Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Specifications

Short description

I/O module4 digital input channels, 4 digital channels configurable as inputs or outputs, 4 edge detection units with timestamp function (each usable as pulse duration or differential time measurement, 4 history elements per unit), 4x microsecond-accurate edge generation (each up to 4 edges per unit), 4x oversampling (input and output signal)

General information

Diagnostics – Module run/errorYes, using LED status indicator and software
Diagnostics – OutputsYes, using LED status indicator and software (output state)
Power consumption – Bus0.01 W
Power consumption – Internal I/O1.5 W
Certifications – CEYes
Certifications – UKCAYes
Certifications – CRA (Cyber Resilience Act)In preparation
Certifications – ATEXZone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – ULcULus E115267; Industrial control equipment
Certifications – HazLoccCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNVTemperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCSYes
Certifications – LRENV1
Certifications – KRYes
Certifications – ABSYes
Certifications – BVEC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KCYes
B&R ID code0xA93B
Status indicatorsI/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]-
Type of signal linesShielded lines must be used for all signal lines.

Digital inputs

Switching threshold – Low<5 VDC
Switching threshold – High>15 VDC
Quantity4 + 4, configuration as input or output using software
Nominal voltage24 VDC
Input voltage24 VDC -15% / +20%
Input current at 24 VDCApprox. 1.3 mA
Input circuitSink
Input resistance18.4 kΩ
Additional functions4 edge detection units with timestamp function, 4x input oversampling
Input frequency40 kHz
Insulation voltage between channel and bus500 V eff

Digital outputs

Switching delay – 0 → 1<2 µs
Switching delay – 1 → 0<2 µs
Switching frequency – Resistive loadMax. 24 kHz
Switching frequency – Inductive loadSee section "Switching inductive loads".
QuantityUp to 4, configuration as input or output using software
VariantPush / Pull / Push-Pull
Nominal voltage24 VDC
Switching voltage24 VDC -15% / +20%
Nominal output current0.1 A
Total nominal current0.4 A
Output circuitSink and/or source
Output protectionThermal shutdown in the event of overcurrent or short circuit, integrated protection for switching inductive loads
Diagnostic statusOutput monitoring
Leakage current when the output is switched offMax. 25 µA
R DS(on)150 mΩ
Residual voltage<0.9 V at 0.1 A nominal current
Peak short-circuit current<10 A
Switch-on in the event of overload shutdown or short-circuit shutdownApprox. 10 ms (depends on the module temperature)
Braking voltage when switching off inductive loadsSwitching voltage + 0.6 VDC
Insulation voltage between channel and bus500 V eff
Additional functions4x microsecond-accurate edge generation, 4x output oversampling

Edge detection units

Quantity4
Operating mode4 pulse duration measurements, relative or absolute moments of input edges in microsecond resolution, ; 4 history elements per unit
Counter size16/32-bit
Input frequency (max.)40 kHz
Resolution125 ns timestamp function
Signal formSquare wave pulse
Sensor power supplyModule-internal, max. 600 mA

Edge generation units

Edge generation – AbsoluteAbsolute to NetTime
Edge generation – RelativeRelative to other edges
Offset at relative edge generation – Range of values16-bit or 32-bit value
Offset at relative edge generation – Resolution1 µs
Quantity4
Actuator power supplyModule-internal, max. 600 mA

Oversampling

Quantity4
Sample time25 to 255 µs
Data volumeUp to 64 bits per X2X Link cycle in the input and output direction

Electrical properties

Electrical isolationChannel isolated from bus ; Channel not isolated from channel

Operating conditions

Mounting orientation – HorizontalYes
Mounting orientation – VerticalYes
Installation elevation above sea level – 0 to 2000 mNo limitation
Installation elevation above sea level – >2000 mReduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529IP20

Ambient conditions

Temperature – Horizontal mounting orientation-25 to 60°C
Temperature – Vertical mounting orientation-25 to 50°C
Temperature – DeratingSee section "Derating".
Temperature – Storage-40 to 85°C
Temperature – Transport-40 to 85°C
Relative humidity – Operation5 to 95%, non-condensing
Relative humidity – Storage5 to 95%, non-condensing
Relative humidity – Transport5 to 95%, non-condensing

Mechanical properties

NoteOrder 1x terminal block X20TB12 separately.; Order 1x bus module X20BM11 separately.
Pitch12.5 +0.2 mm
