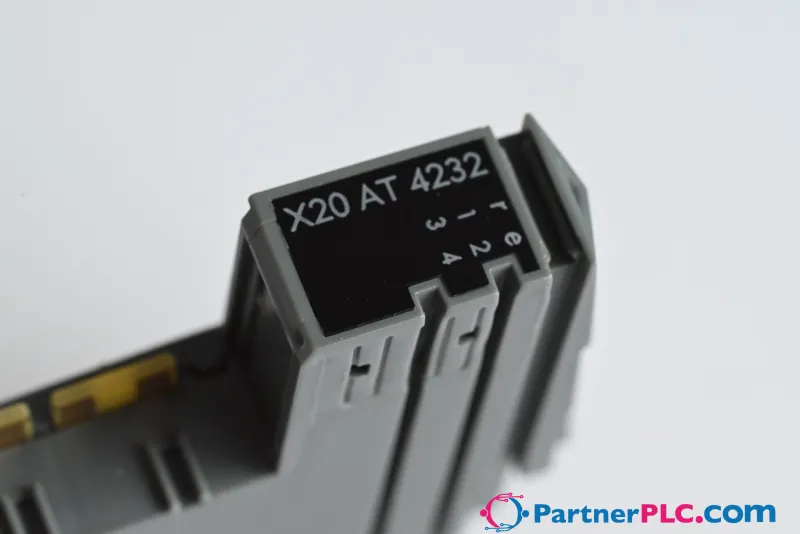

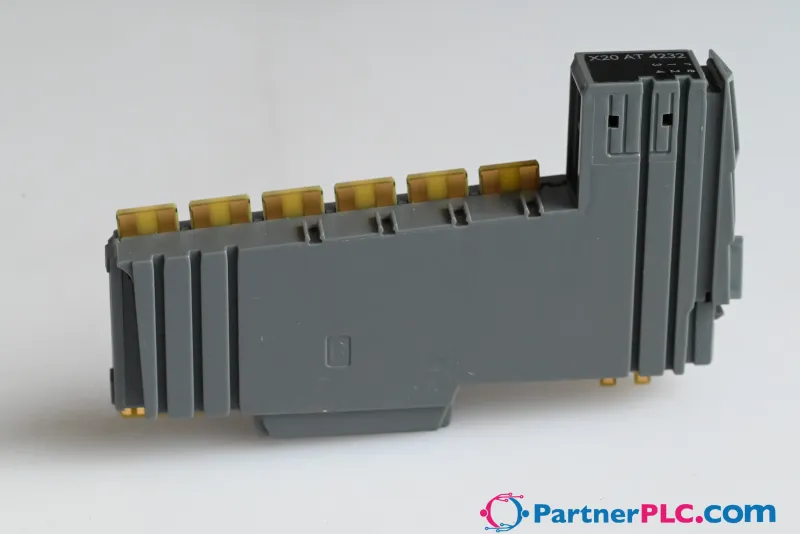

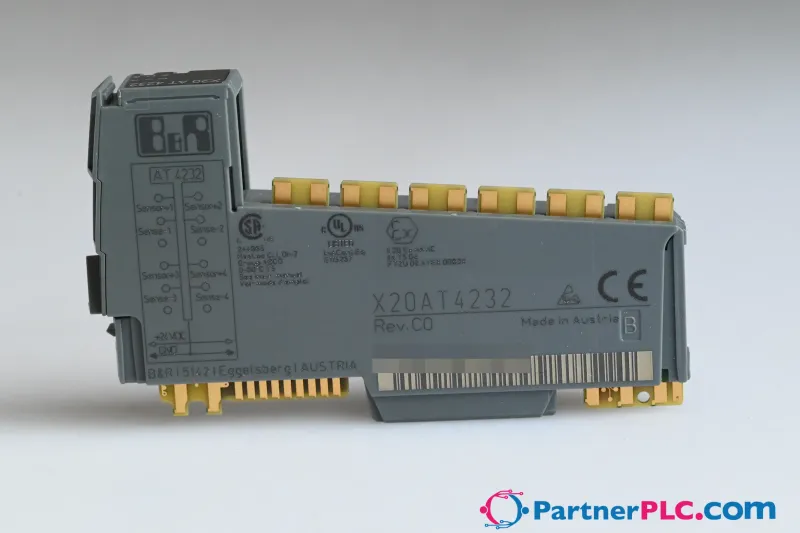

B&R X20AT4232 New Rev. C0 – 4 inputs for resistance temperature measurement
Request a Quote
Quick facts
| Availability | In stock — 1 available |
| Category | Analog I/O Modules |
| Warranty | 12-month |
| Weight | 0.02 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20AT4232 be shipped?
X20AT4232 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20AT4232 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20AT4232.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20AT4232, subject to availability and destination.
• 4 inputs for resistance temperature measurement
• For NTC resistance type 10 kΩ
• Resistance measurement 0 to 200 kΩ
• Configurable measurement type per channel
• 2-wire measurement
• Configurable filter time
This module is equipped with 4 inputs for NTC resistance temperature measurement (10 kΩ at 25°C). In addition, this module can measure resistance from 0 to 200 kΩ.
Accessories
Required accessories (order separately)
| X20BM15 | Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe… |
| X20BM11 | Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Specifications
Short description
| I/O module | 4 inputs for NTC (10 kΩ) resistance temperature measurement |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Inputs | Yes, using LED status indicator and software |
| Cable specification – Cable type | Shielded twisted pair cable |
| Cable specification – Line capacitance | Max. 1 nF |
| Power consumption – Bus | 0.01 W |
| Power consumption – Internal I/O | 0.72 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| B&R ID code | 0xEA85 |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Resistance measurement temperature inputs
| Conversion time – 1 channel | 20 ms with 50 Hz filter |
| Conversion time – 2 - 4 channels | 40 ms per channel with 50 Hz filter |
| Sensor – Sensor type | Configurable per channel |
| Sensor – NTC10K type 1 | Vishay: NTCLE100E3103GB0, B 25/85 = 3977 |
| Sensor – NTC10K type 2 | Vishay: NTCLE413E2103F400L, B 25/85 = 3435 |
| Max. error at 25°C – Gain | ±0.35% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured resistance value."> |
| Max. error at 25°C – Offset | ±0.004% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire resistance measurement range."> |
| Temperature sensor normalization – NTC10K type 1 | -30.0 to 100.0°C |
| Temperature sensor normalization – NTC10K type 2 | -30.0 to 100.0°C |
| Temperature measurement monitoring – Range undershoot | 0x8001 |
| Temperature measurement monitoring – Range overshoot | 0x7FFF |
| Temperature measurement monitoring – Open circuit | 0x7FFF |
| Temperature measurement monitoring – General fault | 0x8000 |
| Temperature measurement monitoring – Open inputs | 0x7FFF |
| Resistance measurement monitoring – Range overshoot | 0xFFFF |
| Resistance measurement monitoring – Open circuit | 0xFFFF |
| Resistance measurement monitoring – General fault | 0xFFFF |
| Resistance measurement monitoring – Open inputs | 0xFFFF |
| Input | Resistance measurement with constant current supply for 2-wire connections |
| Digital converter resolution | 16-bit |
| Filter time | Configurable between 16.7 and 66.7 ms |
| Conversion procedure | Sigma-delta |
| Output format | INT or UINT for resistance measurement |
| Temperature measurement range | -30 to 100°C for NTC with 10 kΩ " data-placement="top" data-html="true" data-container="body" data-content="Depends on the temperature sensor. The value applies when using Vishay NTCLE100E3103GB0 B<sub>25/85</sub> = 3977 and Vishay NTCLE413E2103F400L B<sub>25/85</sub> = 3435 sensors."> |
| Resistance measurement range | 0 to 200 kΩ |
| Temperature sensor resolution | 1 LSB = 0.1°C for NTC with 10 kΩ " data-placement="top" data-html="true" data-container="body" data-content="Depends on the temperature sensor. The value applies when using Vishay NTCLE100E3103GB0 B<sub>25/85</sub> = 3977 and Vishay NTCLE413E2103F400L B<sub>25/85</sub> = 3435 sensors."> |
| Resistance measurement resolution | 5 Ω |
| Input filter | First-order low-pass filter / cutoff frequency 1.35 kHz |
| Insulation voltage between channel and bus | 500 V eff |
| Linearization method | Internal |
| Measuring current | 9.1 µA ±1.5% |
| Reference | 103,125 Ω ±0.1% |
| Permissible input signal | Short-term max. ±30 V |
| Max. gain drift | ±0.006%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current measured resistance value."> |
| Max. offset drift | ±0.00009 %/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire resistance measurement range."> |
| Nonlinearity | <0.15% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire resistance measurement range."> |
| Standardized range of values for resistance measurement | 0 to 200,000 Ω |
| Crosstalk between channels | <-70 dB |
Electrical properties
| Electrical isolation | Channel isolated from bus; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB12 separately.; Order 1x bus module X20BM11 separately. |
| Pitch | 12.5 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20AT4232 | PDF · 418 KB · 1.20 (10/08/2024) - EN |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20 Electronic module | ZIP · 10 KB · 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | ZIP · 872 KB · 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | PDF · 3 KB · 1.0 (10/17/2005) |
Certificates (4)
| EU Data Act - X20 IO - Connected Product Information Notice | PDF · 92 KB · 1.00 (09/30/2025) |
| EU Declaration ATEX X20 | PDF · 218 KB · 2023-07 (09/05/2023) |
| EU Declaration of conformity PLC X20 | PDF · 169 KB · 2021/10 (11/08/2021) |
| UK Declaration PLC X20 | PDF · 151 KB · 2024-01 (01/18/2024) |
