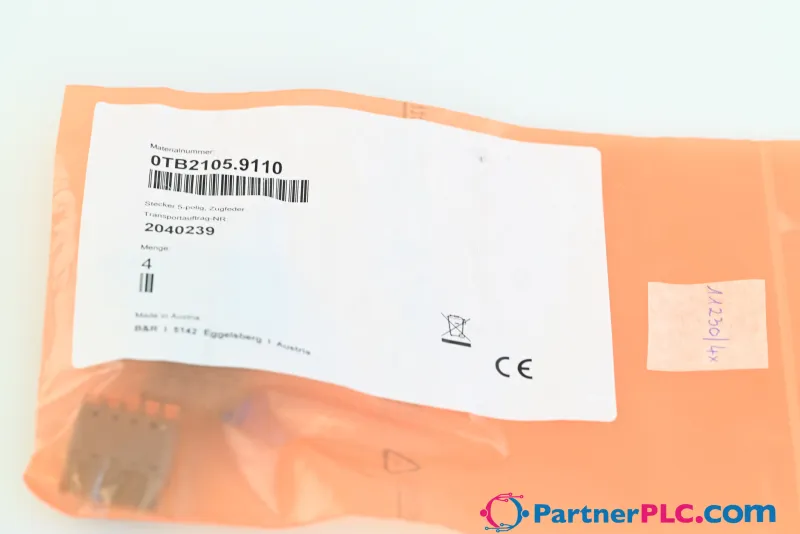

B&R 0TB2105.9110

Terminal Blocks & Connector

MPN: 0TB2105.9110
Category: Terminal Blocks & Connectors

€16.96excl. VAT & shipping

In stock — 3 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 0TB2105.9110?

Terminal Blocks & Connector

Specifications

Terminal block

Connection cross section – AWG wire	26 to 12 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 1.50 mm²
Connection cross section – Single-wire	0.20 to 2.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 2.50 mm²
Connection cross section – With wire end sleeve	0.20 to 1.50 mm²
Note	Nominal data per UL
Number of pins	5
Type of terminal block	Push-in terminal block variant (note: The push-in terminal block cannot be arranged in series.)
Cable type	Only copper wires (no aluminum wires!)
Pitch	5.08 mm

Electrical properties

Nominal voltage	300 V
Nominal current	10 A / contact (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤5 mΩ

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

CAD & dimension drawings

3D File STEP 0TB2105.9110ZIP · 91 KB · 1.20 (11/06/2019)

0TB2105.9110: frequently asked questions

When can 0TB2105.9110 be shipped?

0TB2105.9110 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 0TB2105.9110 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 0TB2105.9110.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB2105.9110, subject to availability and destination.
