B&R 0TB3104-7011 New without box – The single row 4-pin terminal block 0TB3104 is used for…

Name: B&R 0TB3104-7011 New without box – The single row 4-pin terminal block 0TB3104 is used for…
Brand: B&R
SKU: 0TB3104-7011
Price: 24.38 EUR
Availability: InStock

MPN: 0TB3104-7011 · Brand: B&R

€24.38 excl. VAT & shipping

Request a Quote

12-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 20 available
Category	Terminal Blocks & Connectors
Warranty	12-month
Weight	0.02 kg
Country of origin	AT

Shipping & availability

When can 0TB3104-7011 be shipped?

0TB3104-7011 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 0TB3104-7011 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 0TB3104-7011.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB3104-7011, subject to availability and destination.

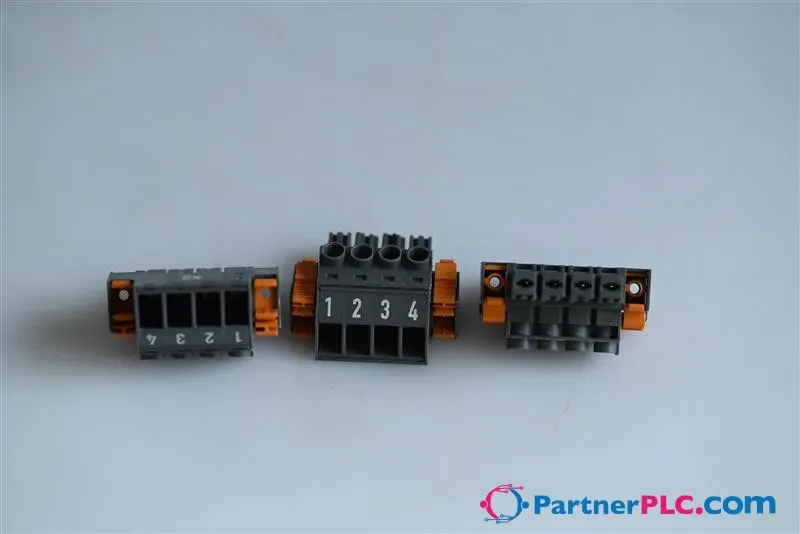

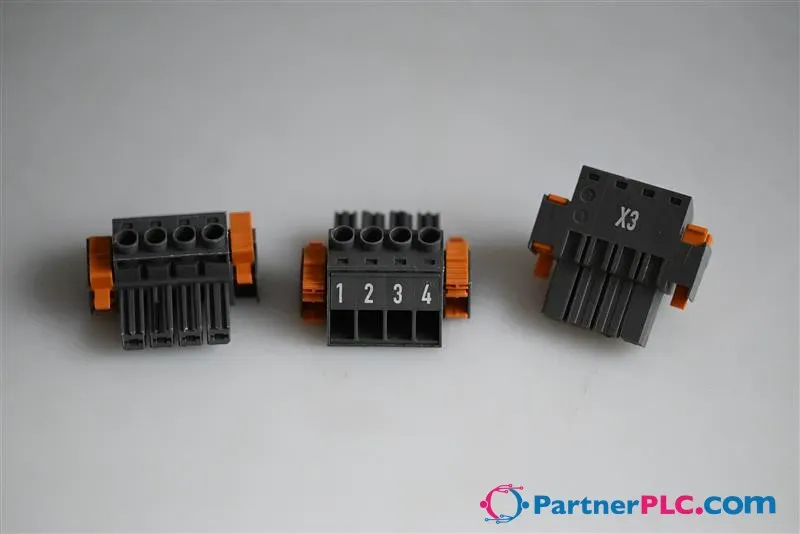

The single row 4-pin terminal block 0TB3104 is used for making connections on an X20 energy measurement module.

Specifications

Terminal block

Connection cross section – AWG wire	22 to 10 AWG
Connection cross section – Wire end sleeves with plastic covering	0.25 to 4 mm²
Connection cross section – Single-wire	0.20 to 6 mm²
Connection cross section – Fine-stranded wires	0.20 to 6 mm²
Connection cross section – With wire end sleeve	0.25 to 6 mm²
Note	Multifunction flange for secure, fast and tool-free locking ; Nominal data per UL
Number of pins	4
Type of terminal block	Screw clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Coding	A
Pitch	7.62 mm

Electrical properties

Nominal voltage	600 V
Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!">	31 A
Contact resistance	≤4.5 mΩ
