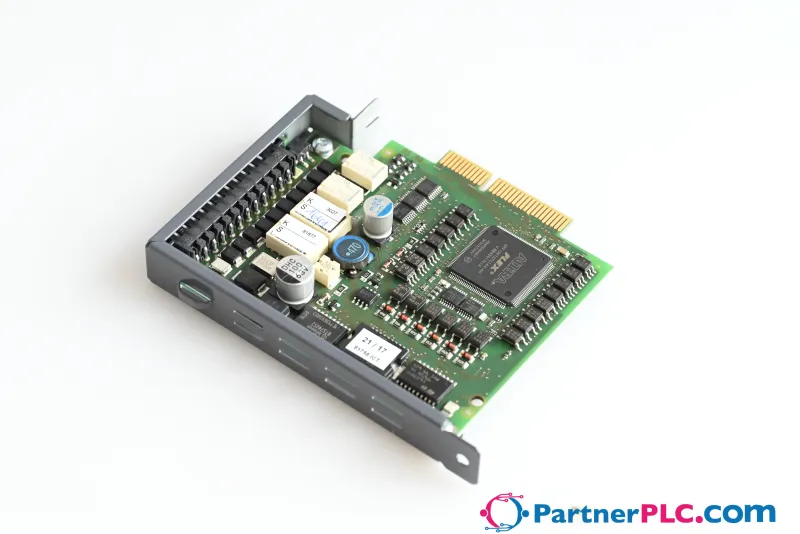

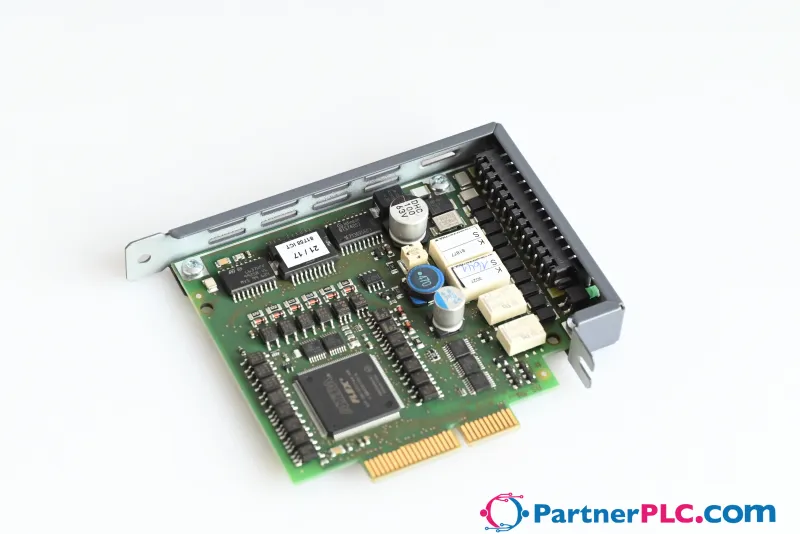

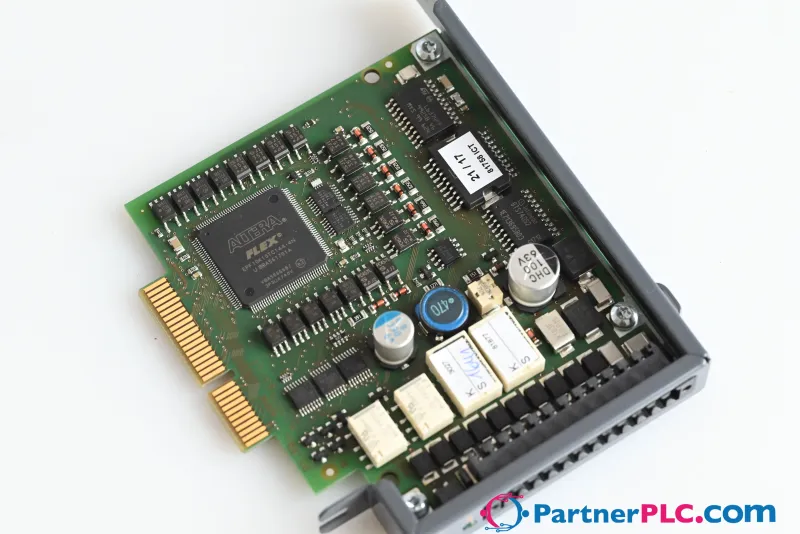

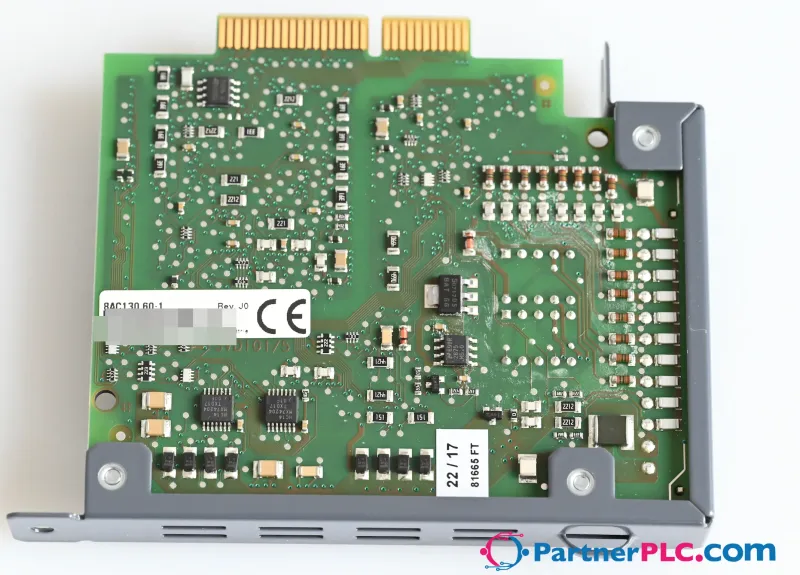

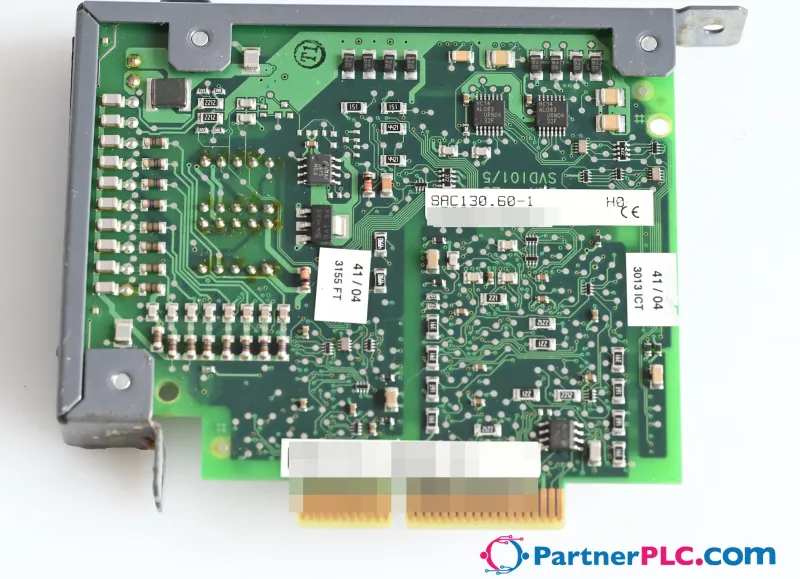

B&R 8AC130.60-1

Servo & Motion Control

MPN: 8AC130.60-1
Category: Servo & Motion Control

€157.94excl. VAT & shipping

In stock — 1 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R 8AC130.60-1?

Servo & Motion Control

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS plug-in module
B&R ID code	0x1068
Slot	Slots 3 and 4 (note: The AC130 can also be used as an encoder module. It is also possible to connect multiple encoder modules. In this case, the encoder module in the smallest slot automatically serves as motor feedback.)
Power consumption	Max. 0.8 W

Inputs/Outputs

Module-side connection	12-pin multipoint connector
Status indicators	LED status indicator (24 V)
Configuration of digital inputs/outputs	Configurable in pairs as inputs or outputs

Incremental encoders

Inputs – Input 1	Channel A
Inputs – Input 2	Channel B
Inputs – Input 3	Reference pulse R
Counter size	16-bit
Input frequency	Max. 62.5 kHz
Evaluation	4x
Signal form	Square wave pulse
Encoder monitoring	No
Counter frequency	Max. 250 kHz
Reference frequency	Max. 62.5 kHz
Distance between edges	Min. 2.5 µs

Power supply

Power supply – Minimum	18 VDC
Power supply – Nominal	24 VDC
Power supply – Maximum	30 VDC
Voltage monitoring (24 V - LED)	Yes, supply voltage >18 V
Reverse polarity protection	Yes

Digital inputs

Switching threshold – Low	<5 V
Switching threshold – High	>15 V
Input voltage – Nominal	24 VDC
Input voltage – Maximum	30 VDC
Input current at nominal voltage – Channel 1-4	Approx. 10 mA
Input current at nominal voltage – Channel 5-8	Approx. 5.5 mA
Electrical isolation – Channel - ACOPOS	Yes
Electrical isolation – Channel - Channel	No
Switching delay – Channel 1-4	Max. 5 µs
Switching delay – Channel 5-8	Max. 35 µs
Quantity	Max. 8
Circuit	Sink

Event counters

Inputs – Input 1	Counter 1
Inputs – Input 2	Counter 2
Signal form	Square wave pulse
Input frequency	Max. 100 kHz
Counter size	16-bit

Digital outputs

Continuous current – Outputs 1 - 4	Max. 100 mA
Continuous current – Outputs 5 - 8	Max. 400 mA
Continuous current – Outputs 9 - 10	Max. 2 A
Short-circuit current at 24 V (until cutoff) – Outputs 1 - 4	Approx. 1 A
Short-circuit current at 24 V (until cutoff) – Outputs 5 - 8	Approx. 1.2 A
Short-circuit current at 24 V (until cutoff) – Outputs 9 - 10	Approx. 24 A
Electrical isolation – Output - ACOPOS	Yes
Electrical isolation – Output - Output	No
Switching frequency (resistive load) – Outputs 1 - 2	Max. 10 kHz (note: Mode encoder emulation: Max. 65 kHz.)
Switching frequency (resistive load) – Outputs 3 - 4	Max. 10 kHz (note: Mode encoder emulation: Max. 65 kHz.)
Switching frequency (resistive load) – Outputs 5 - 8	Max. 5 kHz
Switching frequency (resistive load) – Outputs 9 - 10	Max. 100 Hz
Switching voltage – Minimum	18 VDC
Switching voltage – Nominal	24 VDC
Switching voltage – Maximum	30 VDC
Switching delay 0 → 1 and 1 → 0 – Outputs 1 - 4	Max. 5 µs
Switching delay 0 → 1 and 1 → 0 – Outputs 5 - 8	Max. 50 µs
Switching delay 0 → 1 and 1 → 0 – Outputs 9 - 10	Max. 500 µs
Protection – Short-circuit proof	Yes
Protection – Overload-proof	Yes
Type – Outputs 1 - 4	Push-Pull transistor outputs
Type – Outputs 5 - 10	High-side transistor outputs
Quantity	Max. 10
Readable outputs	Yes

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Accessories

Required accessories (order separately)

7TB712.91	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
7TB712.9	Terminal blocks — The single-row, 12-pin 7TB712 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina…
