Home / B&R / B&R X20CAO4622 New without box Rev. L0 – 4 analog outputs; Either current or voltage signal possible

New

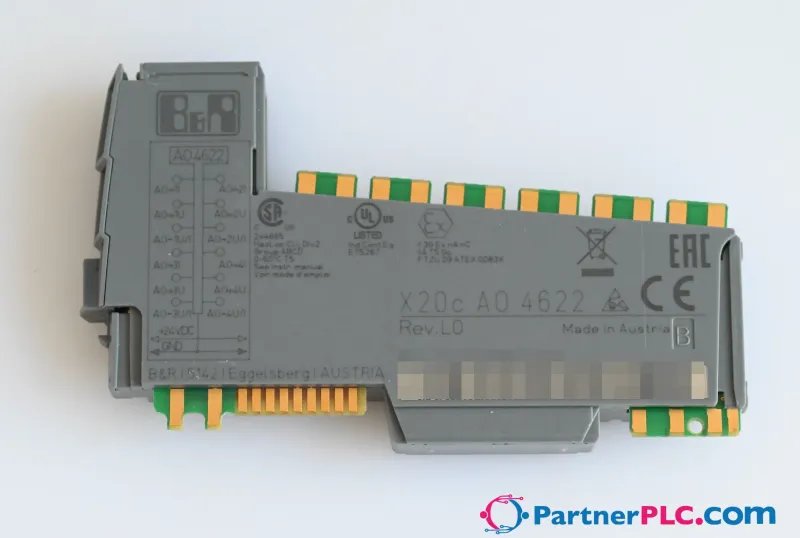

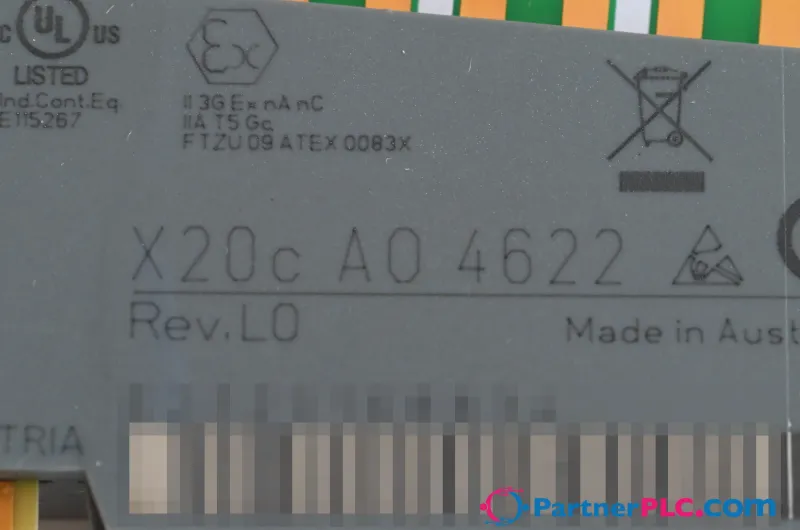

B&R X20CAO4622 New without box Rev. L0 – 4 analog outputs; Either current or voltage signal possible

Name: B&R X20CAO4622 New without box Rev. L0 – 4 analog outputs; Either current or voltage signal possible
Brand: B&R
SKU: X20CAO4622
Price: 263.94 EUR
Availability: InStock

MPN: X20CAO4622 · Brand: B&R

€263.94 excl. VAT & shipping

Request a Quote

12-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 2 available
Warranty	12-month
Weight	0.07 kg
Country of origin	DE

Shipping & availability

When can X20CAO4622 be shipped?

X20CAO4622 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up X20CAO4622 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20CAO4622.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20CAO4622, subject to availability and destination.

• 4 analog outputs

• Either current or voltage signal possible

• 13-bit digital converter resolution

Accessories

Required accessories (order separately)

X20cBM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through.
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Specifications

Short description

I/O module

4 analog outputs ±10 V or 0 to 20 mA / 4 to 20 mA

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Channel type	Yes, using software
Power consumption – Bus	0.01 W
Power consumption – Internal I/O	1.8 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
B&R ID code	0xE212
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Analog outputs

Digital converter resolution – Voltage	±12-bit
Digital converter resolution – Current	12-bit
Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Gain	±0.08% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value.">
Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Offset	±0.05% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Gain	±0.09% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value.">
Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Offset	±0.05% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Output format – Voltage	INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV
Output format – Current	INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA
Load per channel – Voltage	Max. ±10 mA, load ≥1 kΩ
Load per channel – Current	Max. load is 600 Ω
Max. gain drift " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value."> – Voltage	±0.015%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value.">
Max. gain drift " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value."> – Current	±0.02%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value.">
Max. offset drift " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range."> – Voltage	±0.032%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Max. offset drift " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range."> – Current	±0.032%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range.">
Error caused by load change – Voltage	Max. 0.11%, from 10 MΩ → 1 kΩ, resistive
Error caused by load change – Current	Max. 0.5%, from 1 Ω → 600 Ω, resistive
Output	±10 V or 0 to 20 mA / 4 to 20 mA, via different terminals
Max. output current	10 mA at voltage >5 V; 15 mA at voltage <5 V
Conversion time	300 µs for all outputs
Settling time on output change over entire range	500 µs
Switch on/off behavior	Internal enable relay for startup
Output protection	Short-circuit proof
Short-circuit proof	Current limiting ±40 mA
Output filter	First-order low-pass filter / cutoff frequency 10 kHz
Nonlinearity	<0.005% " data-placement="top" data-html="true" data-container="body" data-content="Based on the output range.">
Insulation voltage between channel and bus	500 V eff

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Starting temperature	Yes, -40°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	Up to 100%, condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12 separately.; Order 1x bus module X20cBM11 separately.
Pitch	12.5 +0.2 mm

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data sheet X20(c)AO4622	PDF · 754 KB · 3.28 (09/15/2025) - EN
Coated modules	PDF · 60 KB · 1.00 (01/29/2015) - EN
X20 Package leaflet ATEX/CSA	PDF · 2 MB · 1.4 (09/17/2024)
X20 System User´s Manual	PDF · 50 MB · 4.40 (03/10/2026) - EN

CAD & dimension drawings

3D File DXF/STEP X20 Electronic module	ZIP · 10 KB · 1.0 (10/17/2005)
3D File STEP X20 I/O-Slice	ZIP · 872 KB · 1.1 (03/13/2019)
Dimensions PDF X20 Electronic module	PDF · 3 KB · 1.0 (10/17/2005)

Certificates (13)

2226379 CSA Certificate of Compliance X20 X67	PDF · 205 KB · 2026_09 (09/21/2026)
ABS Certificate of Product Design Assessment - X20 IO Series	PDF · 454 KB · 2.00 (01/13/2025)
E115267 UL Certificate of Compliance X20	PDF · 3 MB · 2026_08_27 (08/27/2026)
EU Data Act - X20 IO - Connected Product Information Notice	PDF · 92 KB · 1.00 (09/30/2025)
EU Declaration ATEX X20	PDF · 218 KB · 2023-07 (09/05/2023)
EU Declaration of conformity PLC X20	PDF · 169 KB · 2021/10 (11/08/2021)
FTZU 09 ATEX 0083X	PDF · 771 KB · 3.00 (10/12/2021)
KR Type Approval Certificate MIL39390-AC003 (X20 System)	PDF · 320 KB · 2.0 (05/05/2025)
Lloyds Register (X20 only)	PDF · 884 KB · 1.30 (07/07/2025)
RINA Type Approval Certificate - X20 / Power Panel T30	PDF · 1 MB · 1.00 (05/07/2021)
TAA00000BJ DNV Type Approval Certificate X20	PDF · 186 KB · 13.0 (05/04/2026)
UK Declaration ACOPOSmicro	PDF · 109 KB · 2022-09 (09/12/2022)
