Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current — at 55 °C rated value | operational current at AC rated value | power loss [W] for rated value of the current at AC in hot operating state per pole | set values setting current (Ii) for I-tripping | Net Weight |
|---|---|---|---|---|---|
| 5SY4163-6 | 52.92 A | 63 A | 6 W | 4 | 175 g |

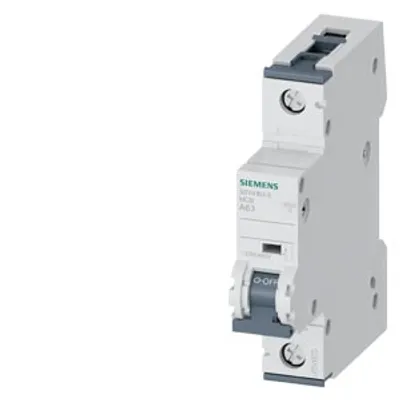

| 5SY4163-5 | 52.92 A | 63 A | 6 W | 2,5 | 173 g |
| 5SL4210-6 | 7.96 A | 10 A | 1.9 W | — | 305 g |

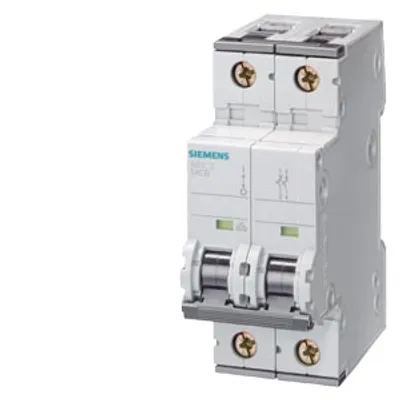

| 5SY8514-8 | — | — | 0.9 W | 12,5 | 322 g |
| 5SY8514-7 | — | — | 0.9 W | 8 | 324 g |
| 5SY8513-8 | — | — | 1.4 W | 13 | 305 g |
| 5SY8513-7 | — | — | 1.4 W | 8 | 316 g |
| 5SY8440-7 | 37.96 A | 40 A | 3.5 W | 7 | 623 g |
| 5SY8432-8BB08 | — | 32 A | 2.1 W | 14 | 632 g |
| 5SY8432-8 | 30.37 A | 32 A | 2.1 W | 14 | 640 g |
| 5SY8432-7 | 30.62 A | 32 A | 2.6 W | 6,5 | 631 g |
| 5SY8425-8BB08 | — | 25 A | 2.1 W | 14 | 624 g |
| 5SY8425-8 | 23.72 A | 25 A | 2.1 W | 14 | 627 g |
| 5SY8425-7 | 23.72 A | 25 A | 2.2 W | 8 | 622 g |

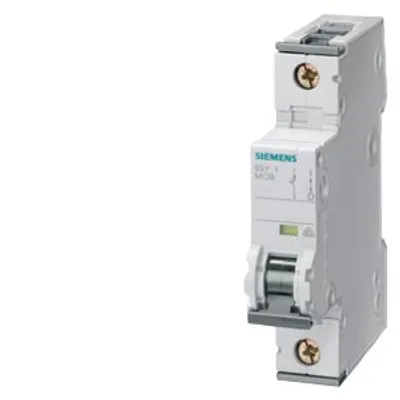

| 5SY8102-8 | 1.9 A | 2 A | 1.2 W | 13,5 | 162 g |
| 5SY7532-8 | — | — | 2.1 W | 14 | 326 g |
| 5SY7532-7 | — | — | 2.6 W | 6,5 | 323 g |
| 5SY7532-6 | — | — | 2.6 W | 4 | 321 g |
| 5SY7613-8 | 11.38 A | 13 A | 1.4 W | 13 | 599 g |
| 5SY7613-7 | 11.38 A | 13 A | 1.4 W | 8 | 619 g |
| 5SY7613-6 | 11.67 A | 13 A | 1.7 W | 4 | 622 g |
| 5SY7604-8 | 3.5 A | 4 A | 1.2 W | 13 | 606 g |
| 5SY7604-7 | 3.5 A | 4 A | 1.3 W | 7,5 | 616 g |
| 5SY7601-8 | 0.88 A | 1 A | 1.1 W | 13 | 660 g |
Common to all listed parts
| product designation | Miniature circuit breaker |
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| type of voltage of the operating voltage | AC |
| value range of the supply voltage frequency | 50/60 Hz |
| protection class IP | IP20, with connected conductors |
| product feature touch protection | Yes |
| product feature halogen-free | Yes |
