Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | operational current — at 40 °C rated value | operational current — at 50 °C rated value | operational current — at 55 °C rated value | power loss [W] for rated value of the current at AC in hot operating state per pole | Net Weight |
|---|---|---|---|---|---|

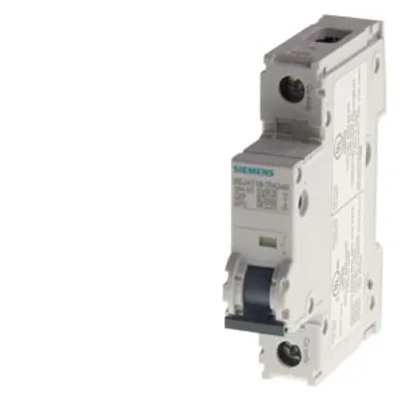

| 5SJ4103-7HG40 | 3 A | 2.8 A | 2.7 A | 1.8 W | 163 g |
| 5SJ4132-7HG40 | 32 A | 30.1 A | 29 A | 3.9 W | 164 g |
| 5SJ4132-6HG40 | 32 A | 30.1 A | 29 A | 3.9 W | 167 g |

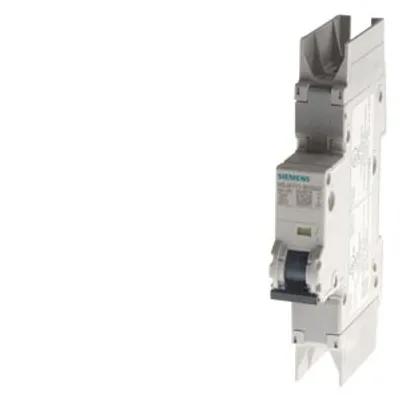

| 5SJ4130-8HG42 | 30 A | 28.2 A | 27.2 A | 3.2 W | 182 g |
| 5SJ4160-6HG40 | 60 A | 56.4 A | 54.4 A | 6.5 W | 174 g |
| 5SJ4150-8HG41 | 50 A | 47.6 A | 46.3 A | 6.3 W | 177 g |
| 5SJ4145-7HG40 | 45 A | 42.8 A | 41.7 A | 6.1 W | 171 g |
| 5SJ4145-6HG40 | 45 A | 42.8 A | 41.7 A | 6.1 W | 167 g |

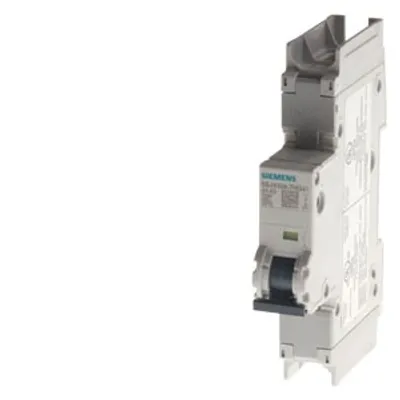

| 5SJ4140-8HG41 | 40 A | 37.6 A | 36.3 A | 4.5 W | 175 g |

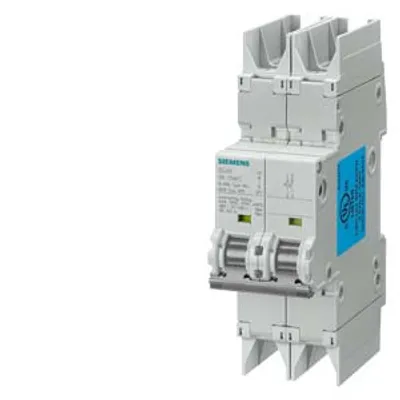

| 5SJ4235-7HG42 | 35 A | 33.3 A | 32.4 A | 3.7 W | 339 g |
| 5SJ4235-7HG41 | 35 A | 33.3 A | 32.4 A | 3.7 W | 333 g |

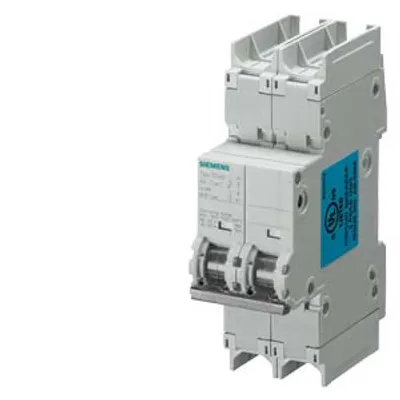

| 5SJ4230-7HG41 | 30 A | 28.5 A | 27.8 A | 3.4 W | 331.5 g |

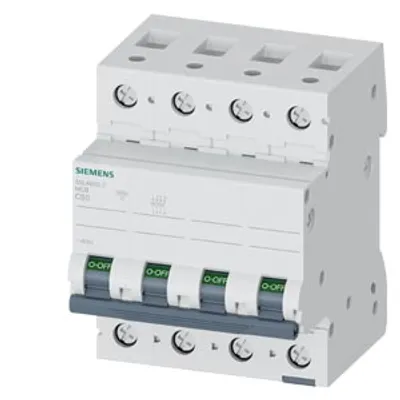

| 5SL4650-7 | 47.36 A | — | 43.09 A | 3.6 W | 647 g |
| 5SY5210-6 | 9.39 A | 8.74 A | 8.4 A | 1.3 W | 326 g |

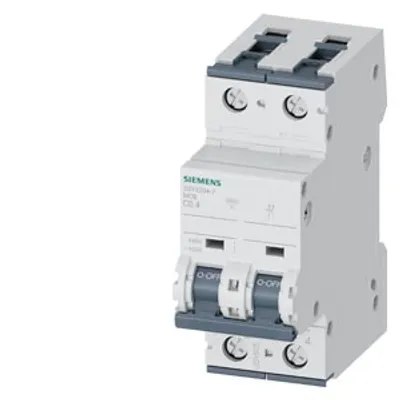

| 5SY5204-7 | 3.76 A | 3.5 A | 3.36 A | 1.3 W | 310 g |

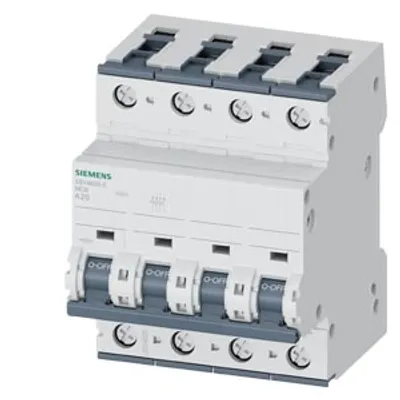

| 5SY4620-5 | 19.04 A | 18.04 A | 17.5 A | 2.5 W | 644 g |
| 5SY4616-5 | 15.36 A | 14.7 A | 14.37 A | 2.5 W | 630 g |
| 5SY4615-8 | 1.54 A | 1.47 A | 1.44 A | 1 W | 622 g |
| 5SY4208-7 | 7.51 A | 6.99 A | 6.72 A | 0.9 W | 302 g |
| 5SY4208-6 | 7.62 A | 7.22 A | 7 A | 1.9 W | 312 g |
| 5SY4208-5 | 7.62 A | 7.22 A | 7 A | 1.9 W | 315 g |
| 5SY4206-6 | 5.63 A | 5.24 A | 5.04 A | 2.1 W | 306 g |

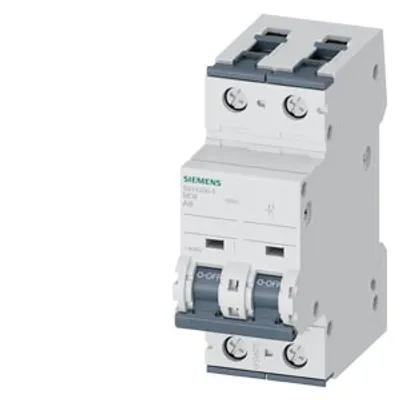

| 5SY4206-5 | 5.63 A | 5.24 A | 5.04 A | 2.2 W | 320 g |

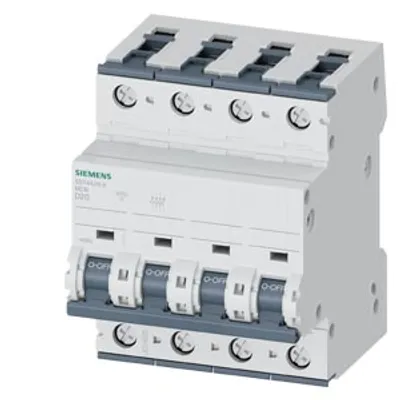

| 5SY4420-8 | 19.04 A | 18.04 A | 17.5 A | 1.6 W | 622 g |
Common to all listed parts
| mechanical service life (operating cycles) typical | 10 000 |
| overvoltage category | 3 |
| switching capacity current — according to EN 60898 rated value | 10 kA |
| product feature touch protection | Yes |
| product feature halogen-free | Yes |
| product feature sealable | Yes |
| product feature silicon-free | Yes |
| product extension installable supplementary devices | Yes |
