Capacitive Sensors Parts
Compare Capacitive Sensors
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Order code (Pepperl+Fuchs part number) | Assured operating distance | Installation conditions: F | Dimensions: Length | MTTFd |
|---|---|---|---|---|---|
| CCN5-F46A-E1 | 103535 | 0 ... 3.5 mm sa | 20 mm / 50 mm | 30.4 mm | — |

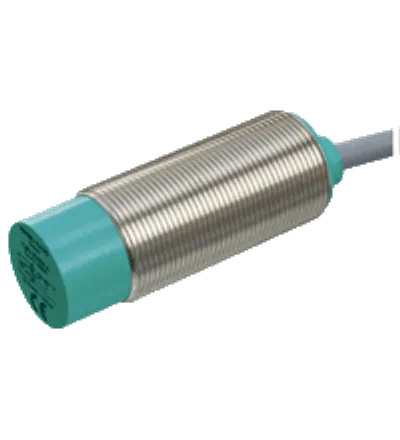

| CJ10-30GM-WS | 037645 | 0 ... 7.2 mm sa | 50 mm | 80 mm | — |
| CJ10-30GM-WO | 037646 | 0 ... 7.2 mm sa | 50 mm | 80 mm | — |

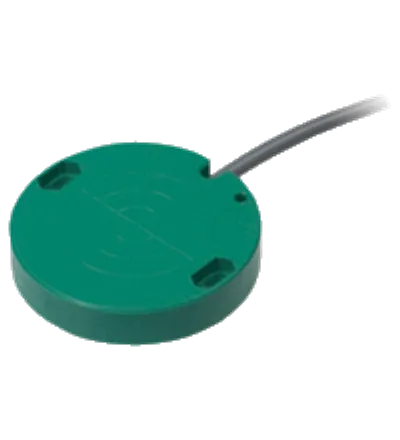

| CJ30-50K10-E0123-Y46139 | 046139 | 0 ... 25 mm sa | 100 mm | — | 554 a |
| CBN5-F46-E1 | 050537 | 0 ... 3.5 mm sa | 20 mm / 50 mm | 25 mm | — |
| CBN10-F46-E3 | 051980 | 0 ... 7 mm sa | 20 mm / 50 mm | 25 mm | 1190 a |
| CBN2-F46-E3 | 051971 | 0 ... 1.4 mm sa | 20 mm / 50 mm | 20 mm | — |
| CBN2-F46-E0 | 051968 | 0 ... 1.4 mm sa | 20 mm / 50 mm | 25 mm | — |
| CBN5-F46-E3 | 051976 | 0 ... 3.5 mm sa | 20 mm / 50 mm | 25 mm | 672 a |
| CBN2-F46-E1 | 051969 | 1 ... 1.4 mm sa | 20 mm / 50 mm | 25 mm | 2940 a |
| CCN5-F46A-E0 | 098168 | 0 ... 3.5 mm sa | 20 mm / 50 mm | 30.4 mm | — |

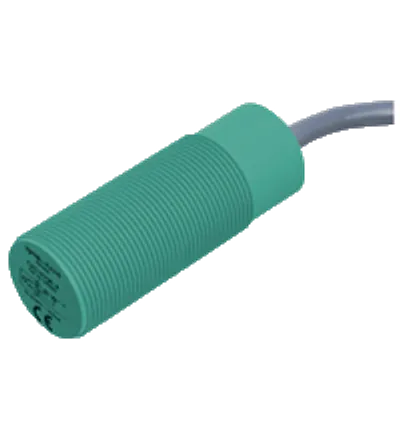

| CJ10-30GK-WS | 020051 | 0 ... 7.2 mm sa | 60 mm | 80 mm | — |
| CJ10-30GK-WO | 020052 | 0 ... 7.2 mm sa | 60 mm | 80 mm | — |
| CJ4-12GK-N | 70135022 | 0 ... 2.88 mm sa | 70 mm | 60 mm | 3299 a |
| CBN15-F64-E2 | 310470 | 0 ... 12.1 mm sa | 45 mm / 60 mm | 40 mm | 941 a |
| CBN15-F64-A2 | 263265 | 0 ... 10.8 mm sa | 45 mm / 60 mm | 40 mm | 941 a |

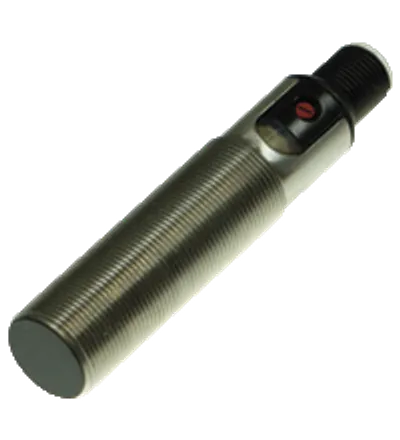

| CBB8-18GS75-E2-V1 | 237038 | — | 36 mm | 88 mm | 343 a |

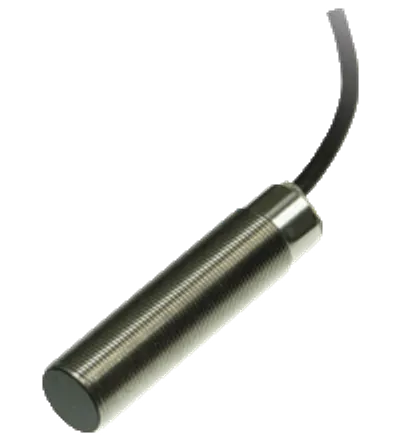

| CBB8-18GS75-E2 | 237036 | — | 36 mm | 75 mm | 343 a |
| CBB10-30GK60-E0 | 237548 | 0 ... 8.1 mm sa | 40 mm | 60 mm | 700 a |
| CBB8-18GS75-E0 | 241168 | — | 36 mm | 75 mm | 343 a |
| CCB10-30GS60-E2 | 237547 | 0 ... 8.1 mm sa | 40 mm | 60 mm | 760 a |

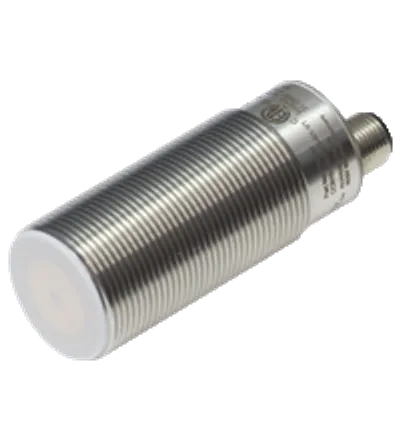

| CCB10-30GS55-N1-V1 | 245597 | — | 60 mm | 80 mm | 1134 a |

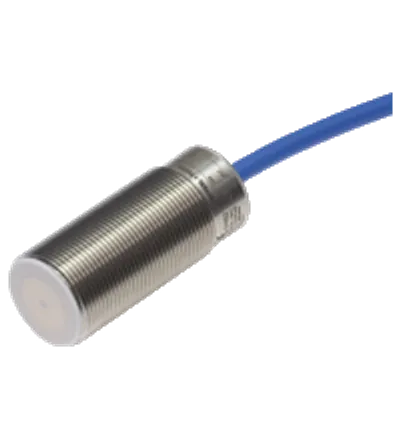

| CCB10-30GS55-N1 | 245596 | — | 60 mm | 80 mm | 1134 a |

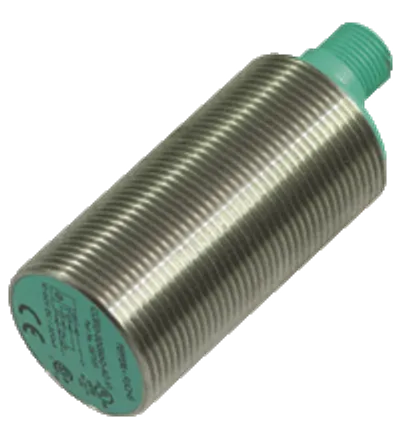

| CCB10-30GS60-E2-V1 | 237550 | 0 ... 8.1 mm sa | 40 mm | 60 mm | 760 a |
Common to all listed parts
| Lifecycle | Active (current Pepperl+Fuchs product) |
| Standard conformity: Standards | EN IEC 60947-5-2 |
