Diffuse Mode Sensors Parts

Showing 601–624 of 939 parts

Compare Diffuse Mode Sensors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNOrder code (Pepperl+Fuchs part number)Detection rangeDiameter of the light spotDevice IDMass
OBT350-R101-2EP-IO-IR267075-1004225 ... 350 mmapprox. 26 mm at a distance of 350 mm0x11060A (1115658)approx. 36 g
OBT350-R100-2EP-IO-V31-IR267075-1004095 ... 350 mmapprox. 26 mm at a distance of 350 mm0x11060A (1115658)approx. 10 g
OBT350-R100-2EP-IO-IR267075-1004085 ... 350 mmapprox. 26 mm at a distance of 350 mm0x11060A (1115658)approx. 36 g
OBT300-R100-E5-IO-0,3M-V3-L267075-1004427 ... 300 mmapprox. 1 mm at a distance of 200 mm0x11060D (1115661)approx. 17 g
OMT100-R103-2EP-IO-V31267075-100372—approx. 8 mm at a distance of 100 mm0x110909 (1116425)approx. 12 g
OMT45-R103-2EP-IO-0,3M-V31267075-100367—approx. 4 mm at a distance of 45 mm0x110907 (1116423)approx. 17 g
OMT45-R103-EP-IO-0,3M-V3267075-100370—approx. 4 mm at a distance of 45 mm0x110907 (1116423)approx. 17 g
OMT45-R103-EP-IO-V3267075-100369—approx. 4 mm at a distance of 45 mm0x110907 (1116423)approx. 12 g
OBD800-R103-2EP-IO-0,3M-V31267075-1002582 ... 800 mmapprox. 55 mm at a distance of 800 mm0x110103 (1114371)approx. 17 g
OBD1100-R101-2EP-IO-IR267075-1004332 ... 1100 mmapprox. 100 mm at a distance of 1000 mm0x110101 (1114369)approx. 10 g
OBD1100-R100-2EP-IO-IR267075-1004322 ... 1100 mmapprox. 100 mm at a distance of 1000 mm0x110101 (1114369)approx. 10 g
OBD1100-R101-2EP-IO-V31-IR267075-1004212 ... 1100 mmapprox. 100 mm at a distance of 1000 mm0x110101 (1114369)approx. 10 g
OBD1100-R100-2EP-IO-V31-IR267075-1004072 ... 1100 mmapprox. 100 mm at a distance of 1000 mm0x110101 (1114369)approx. 10 g

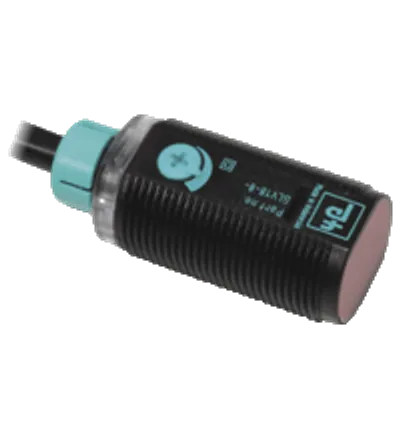

GLV18-8-600-IR/115/12029549750 ... 600 mm adjustableapprox. 60 mm at 600 mm—approx. 75 g

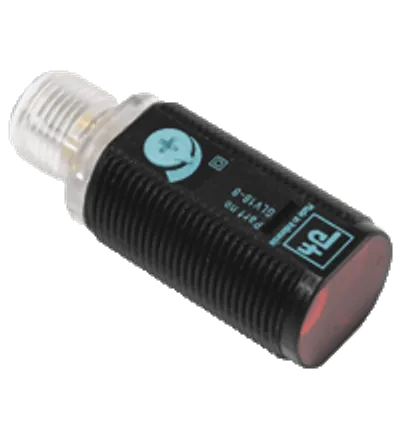

GLV18-8-600-IR/73/12029549650 ... 600 mm adjustableapprox. 60 mm at 600 mm—approx. 10 g
GLV18-8-600-IR/25/102/11529549450 ... 600 mm adjustableapprox. 60 mm at 600 mm—approx. 75 g

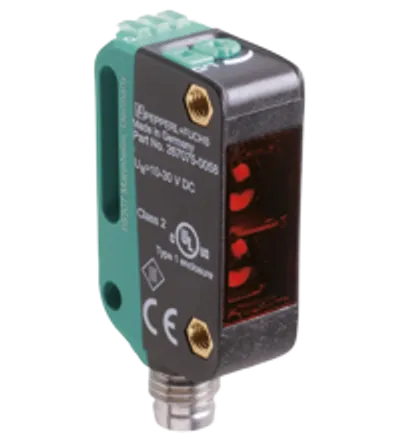

OBT300-R100-E5-V31-L267075-1004287 ... 300 mmapprox. 1 mm at a distance of 200 mm—approx. 10 g
OBT80-R103-2EP-IO-1T-L267075-1002937 ... 80 mm< 1 mm at a distance of 60 mm0x110706 (1115910)approx. 35 g
OBT80-R103-2EP-IO-V31-1T-L267075-1002947 ... 80 mm< 1 mm at a distance of 60 mm0x110706 (1115910)approx. 12 g
OBT80-R103-EP-IO-0,3M-V3-1T-L267075-1002967 ... 80 mm< 1 mm at a distance of 60 mm0x110706 (1115910)approx. 17 g
OBT80-R103-EP-IO-V3-1T-L267075-1002957 ... 80 mm< 1 mm at a distance of 60 mm0x110706 (1115910)approx. 12 g
OBT100-R101-2EP-IO-1T-L267075-1002427 ... 100 mm< 1 mm at a distance of 60 mm0x110703 (1115907)approx. 36 g
OBT100-R101-2EP-IO-V31-1T-L267075-1002437 ... 100 mm< 1 mm at a distance of 60 mm0x110703 (1115907)approx. 10 g
OBT100-R101-EP-IO-0,3M-V3-1T-L267075-1002477 ... 100 mm< 1 mm at a distance of 60 mm0x110703 (1115907)approx. 17 g

Common to all listed parts

LifecycleActive (current Pepperl+Fuchs product)
Mission Time (TM)20 a
Diagnostic Coverage (DC)0 %
Operating voltage10 ... 30 V DC UB
Switching voltagemax. 30 V DC
Voltage drop≤ 1.5 V DC Ud
Product standardEN 60947-5-2
Storage temperature-40 ... 70 °C (-40 ... 158 °F)
