MPN	Order code (Pepperl+Fuchs part number)	Detection range	Black-white difference (6 %/90 %)	Diameter of the light spot	Dimensions: Height
OBT30-R2F-E2-0,2M-V31-L	263389	3 ... 30 mm	< 20 % at 30 mm	1.5 mm +/- 1 mm at a distance of 30 mm	25.5 mm
OBT30-R2F-E0-L	253573	3 ... 30 mm	< 20 % at 30 mm	1.5 mm +/- 1 mm at a distance of 30 mm	25.5 mm
OBT15-R2F-E2-L	253572	2 ... 15 mm	< 15 % at 15 mm	1.4 mm +/- 1 mm at a distance of 15 mm	25.5 mm
OBT15-R2F-E2-0,2M-V31-L	263388	2 ... 15 mm	< 15 % at 15 mm	1.4 mm +/- 1 mm at a distance of 15 mm	25.5 mm
OBT15-R2F-E0-L	253571	2 ... 15 mm	< 15 % at 15 mm	1.4 mm +/- 1 mm at a distance of 15 mm	25.5 mm
OBT30-R3F-E2-L	263515	3 ... 30 mm	< 20 % at 30 mm	1.5 mm +/- 1 mm at a distance of 30 mm	25.5 mm
OBT30-R3F-E2-0,2M-V31-L	263516	3 ... 30 mm	< 20 % at 30 mm	1.5 mm +/- 1 mm at a distance of 30 mm	25.5 mm
OBT15-R3F-E2-L	263511	2 ... 15 mm	< 15 % at 15 mm	1.4 mm +/- 1 mm at a distance of 15 mm	25.5 mm
OBT15-R3F-E2-0,2M-V31-L	263513	2 ... 15 mm	< 15 % at 15 mm	1.4 mm +/- 1 mm at a distance of 15 mm	25.5 mm
OBT30-R3F-E0-L	263514	3 ... 30 mm	< 20 % at 30 mm	1.5 mm +/- 1 mm at a distance of 30 mm	25.5 mm
OBT15-R3F-E0-L	263509	2 ... 15 mm	< 15 % at 15 mm	1.4 mm +/- 1 mm at a distance of 15 mm	25.5 mm
OBT30-R3F-E2-0,2M-V31	263508	1 ... 30 mm	< 20 % at 30 mm	approx. 5.5 mm at a distance of 30 mm	25.5 mm
OBT30-R3F-E2	263507	1 ... 30 mm	< 20 % at 30 mm	approx. 5.5 mm at a distance of 30 mm	25.5 mm
OBT30-R3F-E0	263506	1 ... 30 mm	< 20 % at 30 mm	approx. 5.5 mm at a distance of 30 mm	25.5 mm
OBT15-R3F-E2-0,2M-V31	263504	1 ... 15 mm	< 15 % at 15 mm	approx. 2.5 mm at a distance of 15 mm	25.5 mm
OBT15-R3F-E2	263503	1 ... 15 mm	< 15 % at 15 mm	approx. 2.5 mm at a distance of 15 mm	25.5 mm
OBT15-R3F-E0	263502	1 ... 15 mm	< 15 % at 15 mm	approx. 2.5 mm at a distance of 15 mm	25.5 mm
OQT150-R101-2EP-IO-IR	267075-100441	5 ... 150 mm	< 5 % at 150 mm	approx. 12 mm at a distance of 150 mm	33.8 mm

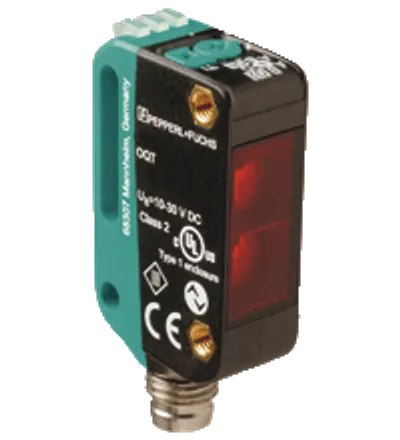

OQT150-R100-2EP-IO-V31-IR	267075-100411	5 ... 150 mm	< 5 % at 150 mm	approx. 12 mm at a distance of 150 mm	44.5 mm
OBT350-R100-2EP-IO-1T-IR	267075-100434	5 ... 350 mm	< 15 % at 350 mm	approx. 26 mm at a distance of 350 mm	37.1 mm
OBT350-R100-2EP-IO-V31-1T-IR	267075-100410	5 ... 350 mm	< 15 % at 350 mm	approx. 26 mm at a distance of 350 mm	44.5 mm
OBT350-R101-2EP-IO-1T-IR	267075-100435	5 ... 350 mm	< 15 % at 350 mm	approx. 26 mm at a distance of 350 mm	33.8 mm
OBT350-R101-2EP-IO-V31-1T-IR	267075-100423	5 ... 350 mm	< 15 % at 350 mm	approx. 26 mm at a distance of 350 mm	41.4 mm
OBT350-R101-2EP-IO-V31-IR	267075-100416	5 ... 350 mm	< 15 % at 350 mm	approx. 26 mm at a distance of 350 mm	41.4 mm

Common to all listed parts

Reference target	standard white, 100 mm x 100 mm
Lifecycle	Active (current Pepperl+Fuchs product)
Diagnostic Coverage (DC)	0 %
Protection class	III
Switching voltage	max. 30 V DC
Voltage drop	≤ 1.5 V DC Ud
Product standard	EN 60947-5-2
Material: Optical face	PMMA
