Actuators and indicators, 22 mm, metal, shiny Parts
Compare Actuators and indicators, 22 mm, metal, shiny
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | outer diameter of the actuating element | Net Weight | width | mounting height | installation depth |
|---|---|---|---|---|---|
| 3SU1050-5BL41-0AA0-Z Y01 | 29.5 mm | 147.5 g | 29.5 mm | 61 mm | 25.4 mm |
| 3SU1050-5BL41-0AA0-Z X90 | 29.5 mm | 147.5 g | 29.5 mm | 61 mm | 25.4 mm |
| 3SU1150-0AB20-3FA0 | 29.45 mm | 73.5 g | 30 mm | 11 mm | 71.7 mm |
| 3SU1150-0AB10-3CA0-Z Y13 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 49.7 mm |
| 3SU1150-0AB10-3CA0-Z Y12 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 49.7 mm |
| 3SU1150-0AB10-3CA0-Z Y11 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 49.7 mm |
| 3SU1150-0AB10-3CA0-Z Y10 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 49.7 mm |
| 3SU1150-0AB10-3CA0-Z X90 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 49.7 mm |
| 3SU1150-0AB10-3CA0 | 29.45 mm | 66.5 g | 30 mm | 11 mm | 49.7 mm |
| 3SU1150-0AB10-3BA0-Z Y19 | 29.45 mm | 65.5 g | 30 mm | 11 mm | 49.7 mm |
| 3SU1152-6AA60-3AA0-Z Y11 | 29.45 mm | 53.5 g | 30 mm | 11.8 mm | 49.7 mm |
| 3SU1152-6AA60-3AA0-Z Y10 | 29.45 mm | 53.5 g | 30 mm | 11.8 mm | 49.7 mm |
| 3SU1152-6AA60-3AA0-Z X90 | 29.45 mm | 53.5 g | 30 mm | 11.8 mm | 49.7 mm |
| 3SU1152-6AA60-3AA0 | 29.45 mm | 53.5 g | 30 mm | 11.8 mm | 49.7 mm |
| 3SU1152-6AA60-1AA0-Z Y19 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 49.7 mm |
| 3SU1152-6AA60-1AA0-Z Y15 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 49.7 mm |

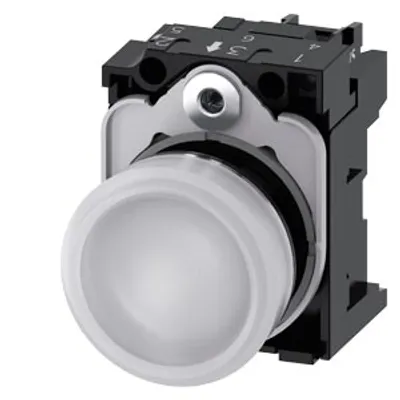

| 3SU1152-6AA60-1AA0-Z Y13 | 29.45 mm | 55.5 g | 30 mm | 11.8 mm | 49.7 mm |
| 3SU1050-1BA20-0AA0-Z Y12 | 40 mm | 58.5 g | 40 mm | 27.5 mm | 24.4 mm |
| 3SU1050-1BA20-0AA0-Z Y11 | 40 mm | 58.5 g | 40 mm | 27.5 mm | 24.4 mm |
| 3SU1050-1BA20-0AA0-Z Y10 | 40 mm | 58.5 g | 40 mm | 27.5 mm | 24.4 mm |
| 3SU1050-1BA20-0AA0-Z X90 | 40 mm | 58.5 g | 40 mm | 27.5 mm | 24.4 mm |
| 3SU1050-1BA20-0AA0 | 40 mm | 58.5 g | 40 mm | 27.5 mm | 24.4 mm |
| 3SU1050-1BA10-0AA0-Z Y19 | 40 mm | 0.059 kg | 40 mm | 27.5 mm | 24.4 mm |
| 3SU1050-1BA10-0AA0-Z Y15 | 40 mm | 0.059 kg | 40 mm | 27.5 mm | 24.4 mm |
Common to all listed parts
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.593 kg |
