Actuators and indicators, 22 mm, metal, shiny Parts

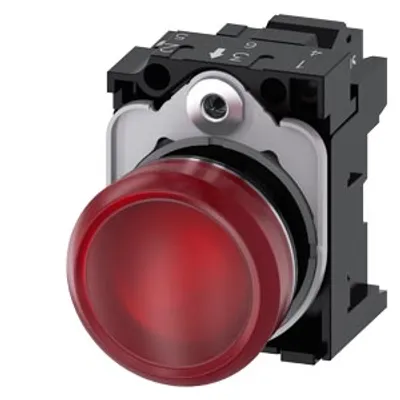

Siemens 3SU1156-6AA20-3AA0 – Indicator lights, 22 mm, round, metal, shiny, red, lens, smooth, with holder

Siemens

3SU1156-6AA20-3AA0

Indicator lights, 22 mm, round, metal, shiny, red, lens

Siemens 3SU1156-6AA20-1AA0-Z Y19 – Indicator lights, 22 mm, round, Metal, shiny, red, lens, smooth, with holder

Siemens

3SU1156-6AA20-1AA0-Z Y19

Indicator lights, 22 mm, round, Metal, shiny, red, lens

Siemens 3SU1156-6AA20-1AA0-Z Y15 – Indicator lights, 22 mm, round, Metal, shiny, red, lens, smooth, with holder

Siemens

3SU1156-6AA20-1AA0-Z Y15

Indicator lights, 22 mm, round, Metal, shiny, red, lens

Siemens 3SU1156-6AA20-1AA0-Z Y13 – Indicator lights, 22 mm, round, Metal, shiny, red, lens, smooth, with holder

Siemens

3SU1156-6AA20-1AA0-Z Y13

Indicator lights, 22 mm, round, Metal, shiny, red, lens

Siemens 3SU1156-6AA20-1AA0-Z Y12 – Indicator lights, 22 mm, round, Metal, shiny, red, lens, smooth, with holder

Siemens

3SU1156-6AA20-1AA0-Z Y12

Indicator lights, 22 mm, round, Metal, shiny, red, lens

Siemens 3SU1156-6AA20-1AA0-Z Y11 – Indicator lights, 22 mm, round, Metal, shiny, red, lens, smooth, with holder

Siemens

3SU1156-6AA20-1AA0-Z Y11

Indicator lights, 22 mm, round, Metal, shiny, red, lens

Siemens 3SU1150-0AB40-1FA0-Z X90 – Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB40-1FA0-Z X90

Pushbutton, 22 mm, round, metal, shiny, green, pushbutton

Siemens 3SU1150-0AB40-1FA0 – Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat, momentary contact type, 1 NO+1 NC

Siemens

3SU1150-0AB40-1FA0

Pushbutton, 22 mm, round, metal, shiny, green, pushbutton

Siemens 3SU1150-0AB40-1BA0-Z Y19 – Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat, momentary contact type, 1 NO, screw terminal

Siemens

3SU1150-0AB40-1BA0-Z Y19

Pushbutton, 22 mm, round, metal, shiny, green, pushbutton

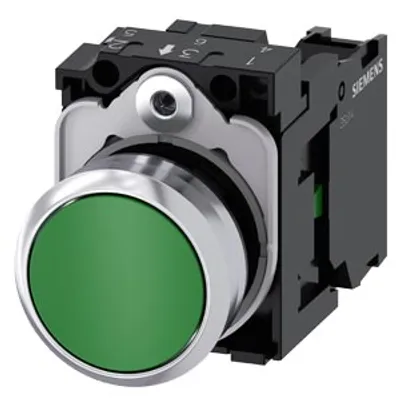

Siemens 3SU1150-0AB40-1BA0-Z Y15 – Pushbutton, 22 mm, round, metal, shiny, green, pushbutton, flat, momentary contact type, 1 NO, screw terminal

Siemens

3SU1150-0AB40-1BA0-Z Y15

Pushbutton, 22 mm, round, metal, shiny, green, pushbutton

Siemens 3SU1150-0AB20-3FA0-Z Y19 – Pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC

Siemens

3SU1150-0AB20-3FA0-Z Y19

Pushbutton, 22 mm, round, metal, shiny, red, pushbutton

Siemens 3SU1150-0AB20-3FA0-Z Y15 – Pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC

Siemens

3SU1150-0AB20-3FA0-Z Y15

Pushbutton, 22 mm, round, metal, shiny, red, pushbutton

Siemens 3SU1150-0AB20-3FA0-Z Y13 – Pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC

Siemens

3SU1150-0AB20-3FA0-Z Y13

Pushbutton, 22 mm, round, metal, shiny, red, pushbutton

Siemens 3SU1150-0AB20-3FA0-Z Y12 – Pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC

Siemens

3SU1150-0AB20-3FA0-Z Y12

Pushbutton, 22 mm, round, metal, shiny, red, pushbutton

Siemens 3SU1150-0AB20-3FA0-Z Y11 – Pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC

Siemens

3SU1150-0AB20-3FA0-Z Y11

Pushbutton, 22 mm, round, metal, shiny, red, pushbutton

Siemens 3SU1150-0AB20-3FA0-Z Y10 – Pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC

Siemens

3SU1150-0AB20-3FA0-Z Y10

Pushbutton, 22 mm, round, metal, shiny, red, pushbutton

Siemens 3SU1150-0AB20-3FA0-Z X90 – Pushbutton, 22 mm, round, metal, shiny, red, pushbutton, flat, momentary contact type, with holder, 1 NO+1 NC

Siemens

3SU1150-0AB20-3FA0-Z X90

Pushbutton, 22 mm, round, metal, shiny, red, pushbutton

Siemens 3SU1050-4CF11-0AA0-Z Y15 – RONIS key-operated switch, 22 mm, round, metal, shiny, lock number 455, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-4CF11-0AA0-Z Y15

RONIS key-operated switch, 22 mm, round, metal, shiny

Siemens 3SU1050-4CF11-0AA0-Z Y12 – RONIS key-operated switch, 22 mm, round, metal, shiny, lock number 455, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-4CF11-0AA0-Z Y12

RONIS key-operated switch, 22 mm, round, metal, shiny

Siemens 3SU1050-4CF11-0AA0-Z Y11 – RONIS key-operated switch, 22 mm, round, metal, shiny, lock number 455, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-4CF11-0AA0-Z Y11

RONIS key-operated switch, 22 mm, round, metal, shiny

Siemens 3SU1050-4CF11-0AA0-Z Y10 – RONIS key-operated switch, 22 mm, round, metal, shiny, lock number 455, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-4CF11-0AA0-Z Y10

RONIS key-operated switch, 22 mm, round, metal, shiny

Siemens 3SU1050-4CF11-0AA0-Z X90 – RONIS key-operated switch, 22 mm, round, metal, shiny, lock number 455, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-4CF11-0AA0-Z X90

RONIS key-operated switch, 22 mm, round, metal, shiny

Siemens 3SU1050-4CF11-0AA0 – RONIS key-operated switch, 22 mm, round, metal, shiny, lock number 455, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-4CF11-0AA0

RONIS key-operated switch, 22 mm, round, metal, shiny

Siemens 3SU1050-4CF01-0AA0-Z Y19 – RONIS key-operated switch, 22 mm, round, metal, shiny, lock number 455, with 2 keys, 2 switch positions O-I

Siemens

3SU1050-4CF01-0AA0-Z Y19

RONIS key-operated switch, 22 mm, round, metal, shiny

Compare Actuators and indicators, 22 mm, metal, shiny

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	product extension optional light source	Net Weight	type of electrical connection	mounting height	installation depth
3SU1156-6AA20-3AA0	Yes	55.5 g	other	11.8 mm	49.7 mm
3SU1156-6AA20-1AA0-Z Y19	Yes	55.5 g	other	11.8 mm	49.7 mm
3SU1156-6AA20-1AA0-Z Y15	Yes	55.5 g	other	11.8 mm	49.7 mm
3SU1156-6AA20-1AA0-Z Y13	Yes	55.5 g	other	11.8 mm	49.7 mm
3SU1156-6AA20-1AA0-Z Y12	Yes	55.5 g	other	11.8 mm	49.7 mm
3SU1156-6AA20-1AA0-Z Y11	Yes	55.5 g	other	11.8 mm	49.7 mm
3SU1150-0AB40-1FA0-Z X90	No	74.5 g	screw terminal	11 mm	71.7 mm
3SU1150-0AB40-1FA0	No	74.5 g	screw terminal	11 mm	71.7 mm
3SU1150-0AB40-1BA0-Z Y19	No	66.5 g	screw terminal	11 mm	49.7 mm
3SU1150-0AB40-1BA0-Z Y15	No	66.5 g	screw terminal	11 mm	49.7 mm
3SU1150-0AB20-3FA0-Z Y19	No	73.5 g	spring-loaded terminals	11 mm	71.7 mm
3SU1150-0AB20-3FA0-Z Y15	No	73.5 g	spring-loaded terminals	11 mm	71.7 mm
3SU1150-0AB20-3FA0-Z Y13	No	73.5 g	spring-loaded terminals	11 mm	71.7 mm
3SU1150-0AB20-3FA0-Z Y12	No	73.5 g	spring-loaded terminals	11 mm	71.7 mm
3SU1150-0AB20-3FA0-Z Y11	No	73.5 g	spring-loaded terminals	11 mm	71.7 mm
3SU1150-0AB20-3FA0-Z Y10	No	73.5 g	spring-loaded terminals	11 mm	71.7 mm
3SU1150-0AB20-3FA0-Z X90	No	73.5 g	spring-loaded terminals	11 mm	71.7 mm
3SU1050-4CF11-0AA0-Z Y15	No	75.5 g	—	49.4 mm	25.4 mm
3SU1050-4CF11-0AA0-Z Y12	No	75.5 g	—	49.4 mm	25.4 mm
3SU1050-4CF11-0AA0-Z Y11	No	75.5 g	—	49.4 mm	25.4 mm
3SU1050-4CF11-0AA0-Z Y10	No	75.5 g	—	49.4 mm	25.4 mm
3SU1050-4CF11-0AA0-Z X90	No	75.5 g	—	49.4 mm	25.4 mm
3SU1050-4CF11-0AA0	No	75.5 g	—	49.4 mm	25.4 mm
3SU1050-4CF01-0AA0-Z Y19	No	76.5 g	—	49.4 mm	25.4 mm

Common to all listed parts

protection class IP	IP66, IP67, IP69(IP69K)
degree of protection NEMA rating	1, 2, 3, 3R, 4, 4X, 12, 13
Substance Prohibitance (day/month/year)	10/01/2014
shape of the installation opening	round
mounting diameter	22.3 mm
positive tolerance of installation diameter	0.4 mm
installation width	29.5 mm
Environmental Product Declaration(EPD)	Yes
