Actuators and indicators, 22 mm, metal, shiny Parts
Compare Actuators and indicators, 22 mm, metal, shiny
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | outer diameter of the actuating element | Net Weight | height | color of the light source | light intensity |
|---|---|---|---|---|---|

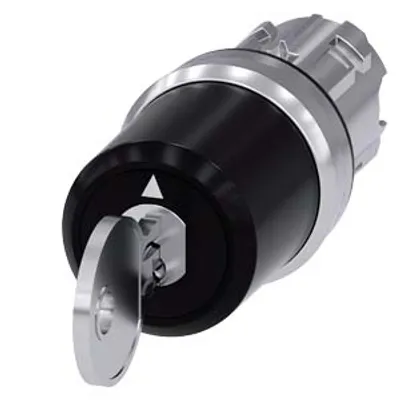

| 3SU1050-5BM01-0AA0-Z Y10 | 29.5 mm | 152.5 g | 29.5 mm | — | — |
| 3SU1050-1CD20-0AA0-Z Y11 | 60 mm | 49.8 g | 60 mm | — | — |
| 3SU1050-1CD20-0AA0-Z Y10 | 60 mm | 49.8 g | 60 mm | — | — |
| 3SU1050-1CD20-0AA0-Z X90 | 60 mm | 49.8 g | 60 mm | — | — |
| 3SU1050-1CD20-0AA0 | 60 mm | 49.8 g | 60 mm | — | — |
| 3SU1050-1CD10-0AA0-Z Y19 | 60 mm | 0.045 kg | 60 mm | — | — |
| 3SU1050-1CD10-0AA0-Z Y15 | 60 mm | 0.045 kg | 60 mm | — | — |

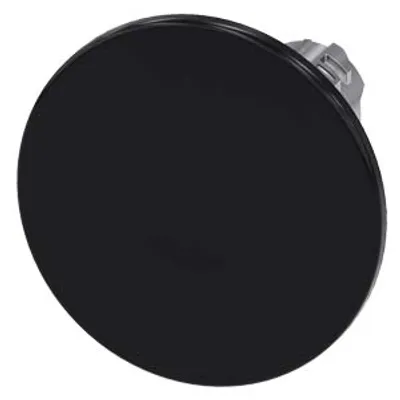

| 3SU1050-1CD10-0AA0-Z Y13 | 60 mm | 0.045 kg | 60 mm | — | — |
| 3SU1152-6AA60-1AA0-Z Y11 | 29.45 mm | 55.5 g | 40 mm | white | 900 ... 1 400 mcd |

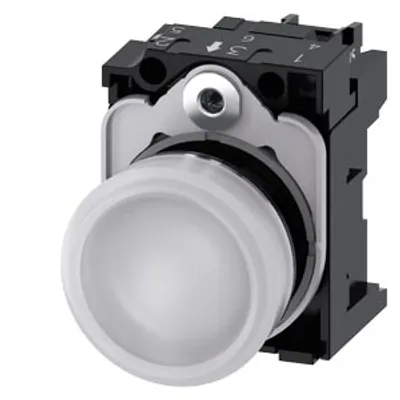

| 3SU1152-6AA60-1AA0-Z Y10 | 29.45 mm | 55.5 g | 40 mm | white | 900 ... 1 400 mcd |
| 3SU1152-6AA60-1AA0-Z X90 | 29.45 mm | 55.5 g | 40 mm | white | 900 ... 1 400 mcd |
| 3SU1152-6AA60-1AA0 | 29.45 mm | 55.5 g | 40 mm | white | 900 ... 1 400 mcd |
| 3SU1152-6AA40-1AA0 | 29.45 mm | 55.5 g | 40 mm | green | 900 ... 1 800 mcd |
| 3SU1152-6AA30-3AA0-Z Y19 | 29.45 mm | 54.5 g | 40 mm | yellow | 900 ... 1 400 mcd |
| 3SU1152-6AA30-3AA0-Z Y15 | 29.45 mm | 54.5 g | 40 mm | yellow | 900 ... 1 400 mcd |

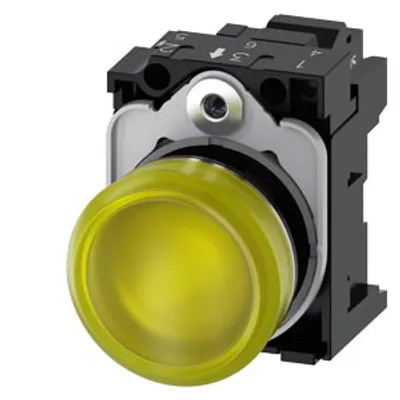

| 3SU1152-6AA30-3AA0-Z Y13 | 29.45 mm | 54.5 g | 40 mm | yellow | 900 ... 1 400 mcd |
| 3SU1152-6AA30-3AA0-Z Y12 | 29.45 mm | 54.5 g | 40 mm | yellow | 900 ... 1 400 mcd |
| 3SU1152-6AA30-3AA0-Z Y11 | 29.45 mm | 54.5 g | 40 mm | yellow | 900 ... 1 400 mcd |
| 3SU1152-6AA30-3AA0-Z Y10 | 29.45 mm | 54.5 g | 40 mm | yellow | 900 ... 1 400 mcd |
| 3SU1156-6AA50-1AA0-Z Y11 | 29.45 mm | 55.5 g | 40 mm | blue | 280 ... 710 mcd |
| 3SU1156-6AA50-1AA0-Z Y10 | 29.45 mm | 55.5 g | 40 mm | blue | 280 ... 710 mcd |
| 3SU1156-6AA50-1AA0-Z X90 | 29.45 mm | 55.5 g | 40 mm | blue | 280 ... 710 mcd |
| 3SU1156-6AA50-1AA0 | 29.45 mm | 55.5 g | 40 mm | blue | 280 ... 710 mcd |

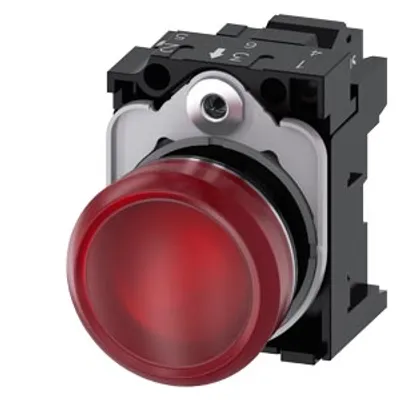

| 3SU1156-6AA20-3AA0-Z X90 | 29.45 mm | 55.5 g | 40 mm | red | 450 ... 1 120 mcd |
Common to all listed parts
| protection class IP | IP66, IP67, IP69(IP69K) |
| degree of protection NEMA rating | 1, 2, 3, 3R, 4, 4X, 12, 13 |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| shape of the installation opening | round |
| mounting diameter | 22.3 mm |
| positive tolerance of installation diameter | 0.4 mm |
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.593 kg |
